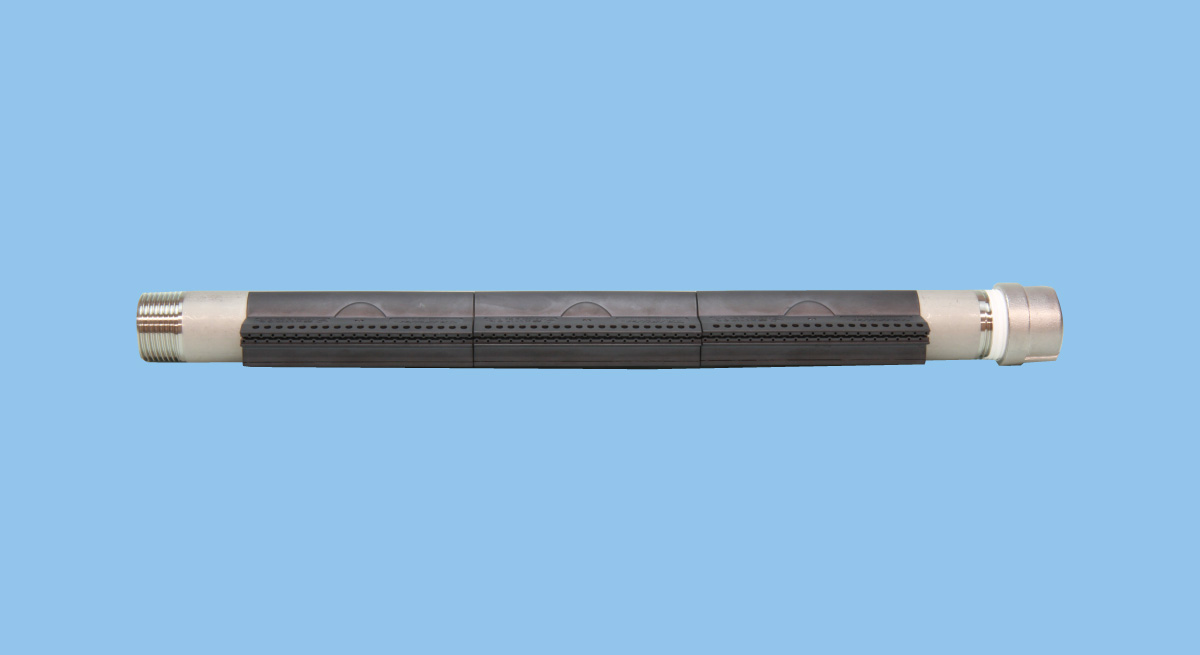

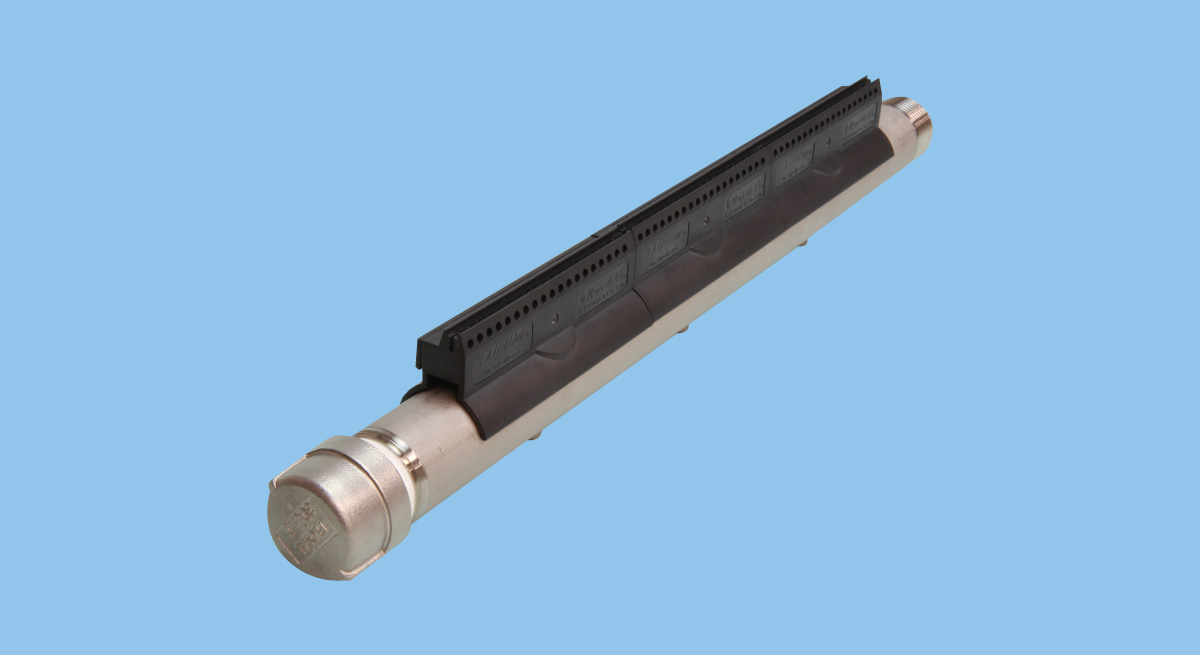

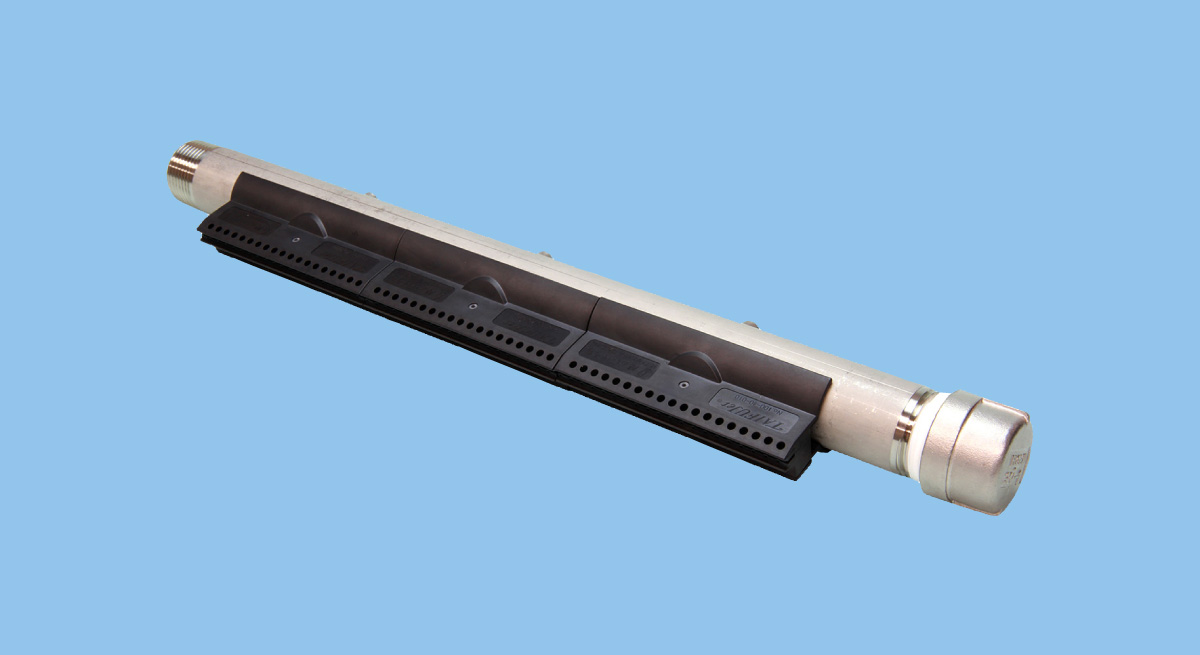

Long, Flat Air Nozzles
TF-PF (Plastic Tips)
TAIFUJet Series: long, flat air booster nozzles that uniformly cover wide areas, available in different blowing widths ranging from 200 mm to 1,200 mm in 100 mm increments.
Specs
| Air Inlet Thread Size | R1 |
|---|---|
| Main Material | PPS, S304 |
| Air Supply | Compressed air |
| Max. Operating Pressure | 0.7 MPa *1 |
| Max. Temperature | 80℃ *2 |
| Noise Level | 86 dBA or more *3 |
| Air Consumption | 2,172–13,034 NL/min *4 |
| Spray Width at Specified Pressure | 325 mm *5 |
| Spray Thickness at Specified Pressure | 50 mm *6 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Depends on temperature. See the catalog for details.
*2) Depends on operating pressure. See the catalog for details.
*3) at 0.3 MPa, 1,000 mm distance
*4) 2,172–13,034 L/min, Normal at 0.3 MPa.
Resources for Download
• Long flat air booster nozzle suitable for installation in confined spaces.
• Blowing manifold with replaceable nozzle tips for easy maintenance and cost savings.
• The unique design creates a uniform and efficient air flow distribution.
• It produces a powerful, high impact air stream, while saving energy.
• Available in 11 different sizes ranging from 200 to 1,200 mm in blowing width.
Single inlet type (air inlet at one end): 5 varieties in width
Dual inlet type (air inlets at both ends): 6 varieties in width
Applications
- Blow-off drying: Blow-off drying of products after washing, edge wiper for steel surface treatment, blow-off drying of engine blocks
- Blow-off: Removal of chips in machining processes, removal of paint dust, sorting and blowing-away of defective products, blowing-off of particles on steel sheet surfaces
- Cooling: Pinpoint cooling of plastic mold products
- Others: Detachment, cleaning
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
Structure
- Available in 11 different sizes ranging from 200 to 1,200 mm in blowing width.
