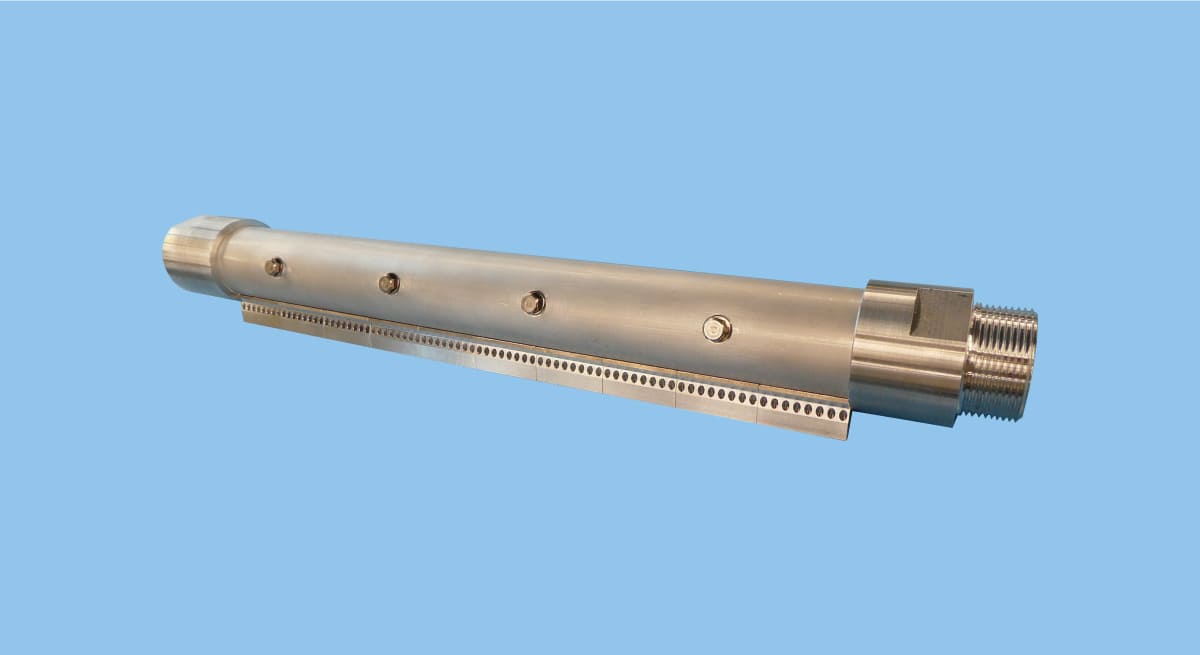

Long, Flat Air Nozzles
TF-BPF (Metal)
TAIFUJet Series: long, flat blower air nozzles that uniformly cover wide areas.
The design, which involves arranging 42-mm width nozzle tips in a line, allows for manufacturing the nozzle with the desired length in 42 mm increments.
Made of plastic resin (PPS nozzle tip and HTPVC pipe header), or Aluminum.
Specs
| Air Inlet Thread Size | R1–R2*1/2 |
|---|---|
| Main Material | A5052 |
| Air Supply | Blower air |
| Max. Operating Pressure | 100 kPa |
| Max. Temperature | 150℃ |
| Noise Level | 106 dBA *1 |
| Air Consumption | 2.94–15.5 N㎥/min *2 |
| Spray Width at Specified Pressure | 425 mm *3 |
| Spray Thickness at Specified Pressure | 50 mm *4 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) at 10–30 kPa, 1,000 mm distance. Model: 1*1/2MTF-BPF420-80-030PPS+HTPVC
*2) 2.94–15.5 N㎥/min [2,940–15,500 L/min], Normal at 30 kPa
*3, *4) at 10 kPa, 100 mm distance. Model: 1*1/2MTF-BPF420-80-030PPS+HTPVC
Resources for Download
• Long flat air booster nozzle suitable for installation in confined spaces.
• Made of plastic resin (PPS nozzle tip and HTPVC pipe header), or Aluminum.
• Unique design provides uniform and efficient distribution of air flow.
• Blow coverage customizable by multiples of 42 mm up to a blow length of 1,596 mm.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment
- Blowing off dust/paint dust/debris, Blowing off inferior products (rejection of inferior products), Blowing off dust of steel plates
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
