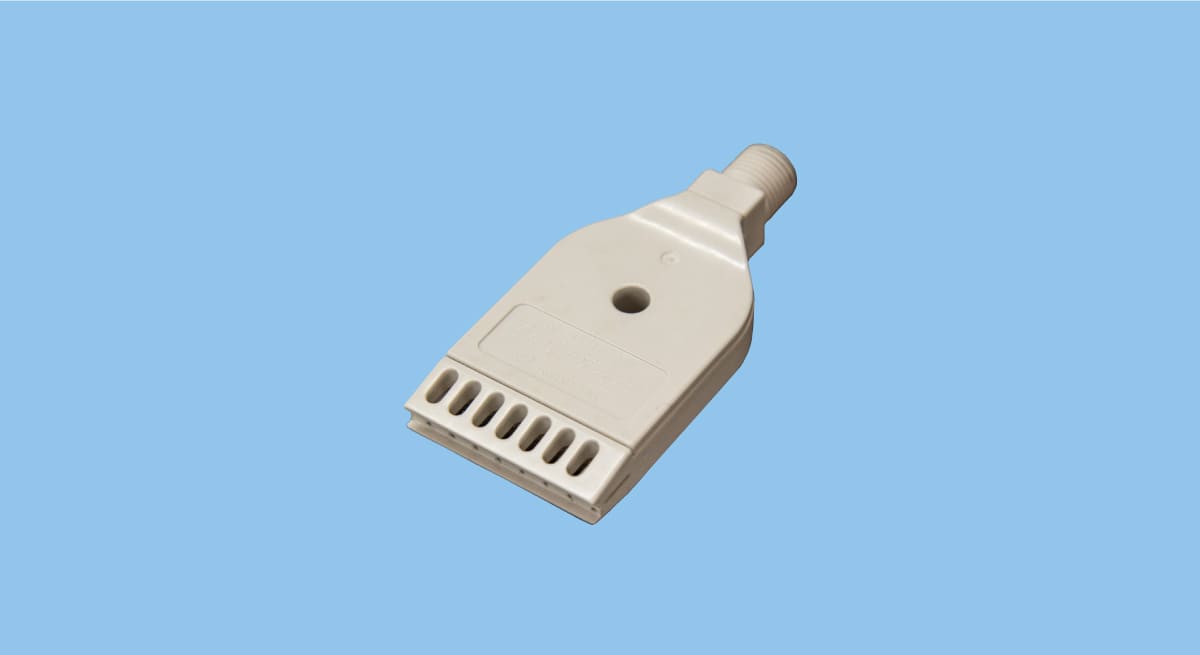

Flat Air Nozzles
TF-F42
TAIFUJet Series: compact air booster nozzles featuring a flat blow pattern and a uniform air flow distribution, measuring 42 mm in width.
Specs
| Air Inlet Thread Size | R1/4 |
|---|---|
| Main Material | PPS |
| Air Supply | Compressed air |
| Max. Operating Pressure | 0.7 MPa *1 |
| Max. Temperature | 80℃ *2 |
| Noise Level | 77 dBA *3 |
| Air Consumption | 440 L/min, Normal at 0.3 MPa |
| Spray Width at Specified Pressure | 55 mm *4 |
| Spray Thickness at Specified Pressure | 50 mm *4 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Depends on temperature. See the catalog for details.
*2) Depends on operating pressure. See the catalog for details.
*3) Measured at 0.3 MPa, 1,000 mm distance. (Background noise: 46 dBA)
*4) Measured at 0.3 MPa, 100 mm distance.
Resources for Download
• 42 mm wide air nozzle generating an effective flat blow through 16 orifices.
• The unique design creates a uniform and efficient air flow distribution.
• Low noise level.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
- Blowing off dust/paint dust, Rejection of inferior products, Blowing off dust for steel plate
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
