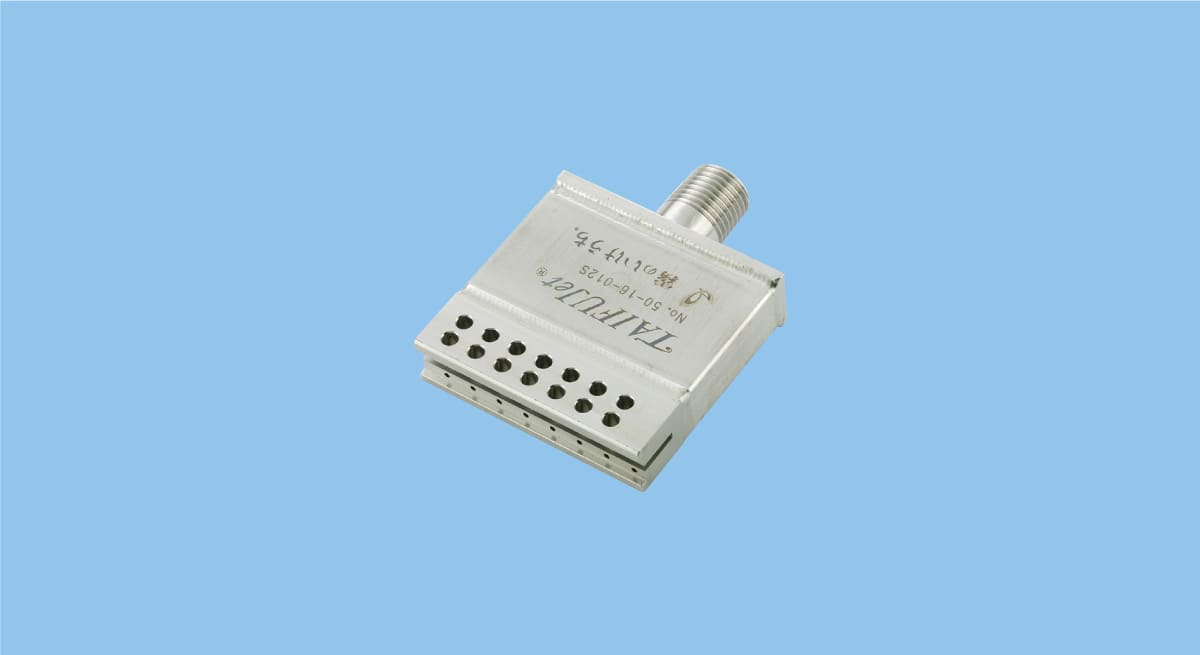

Flat Air Nozzle
TF-F50
TAIFUJet Series: air booster nozzles featuring a flat blow pattern and a uniform air flow distribution, measuring 50 mm in width.
Specs
| Air Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S304 |
| Air Supply | Compressed air |
| Max. Operating Pressure | 1.0 MPa |
| Max. Temperature | 400℃ |
| Noise Level | 82 dBA *1 |
| Air Consumption | 730 L/min, Normal at 0.3 MPa |
| Spray Width at Specified Pressure | 65 mm *2 |
| Spray Thickness at Specified Pressure | 55 mm *2 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Measured at 0.3 MPa, 1,000 mm distance. (Background noise: 46 dBA)
*2) Measured at 0.3 MPa, 100 mm distance.
Resources for Download
• Compact and wider flat air nozzle, 50 mm wide and 65 mm long.
• Low noise level.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
- Blowing off dust/paint dust/debris, Blowing off inferior products (rejection of inferior products)
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
