Flat Air Nozzles TF-F24
TAIFUJet Series: compact air booster nozzles featuring a flat b…
Specs
| Air Inlet Thread Size | Quick fitting (JS-02) |
|---|---|
| Main Material | PP |
| Air Supply | Compressor Air |
| Max. Operating Pressure | 0.7 MPa *1 |
| Max. Temperature | 50℃ *1 |
| Air Consumption | 225–350 NL/min (0.3 MPa) *2 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Heat resistance varies with operating pressure, and max. operating pressure depends on temperature. See the catalog for details.
*2) Air consumption at 0.3 MPa (with air flow valve set to Max.)

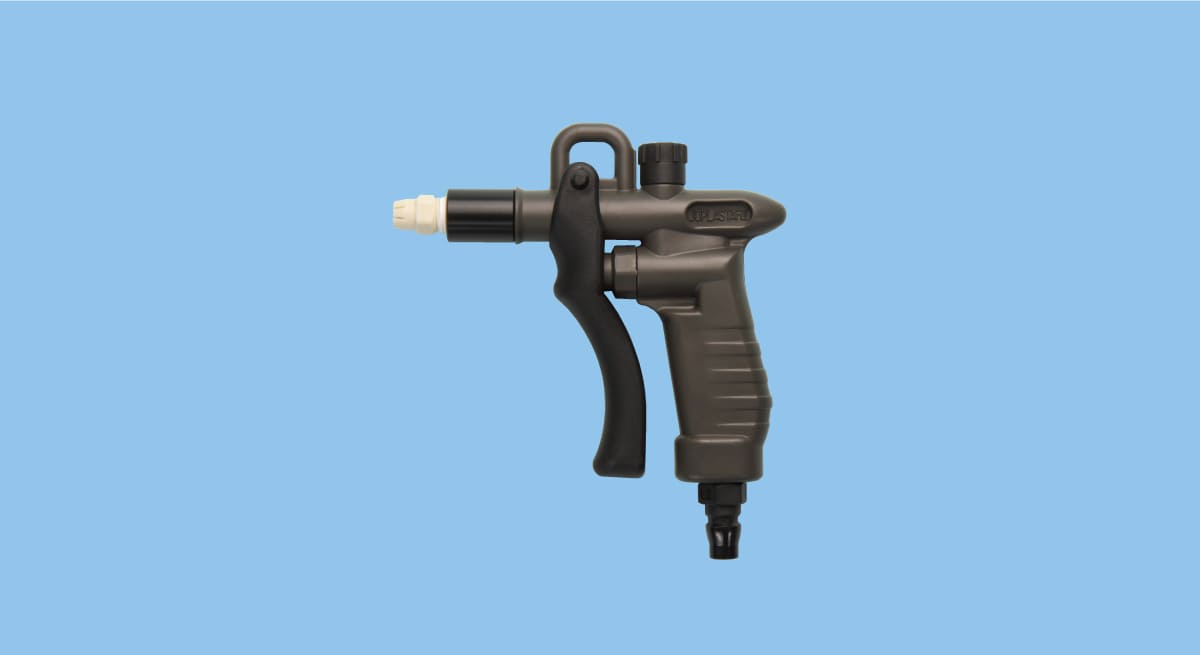

TF-GUN with TF-R: 225 L/min, Normal

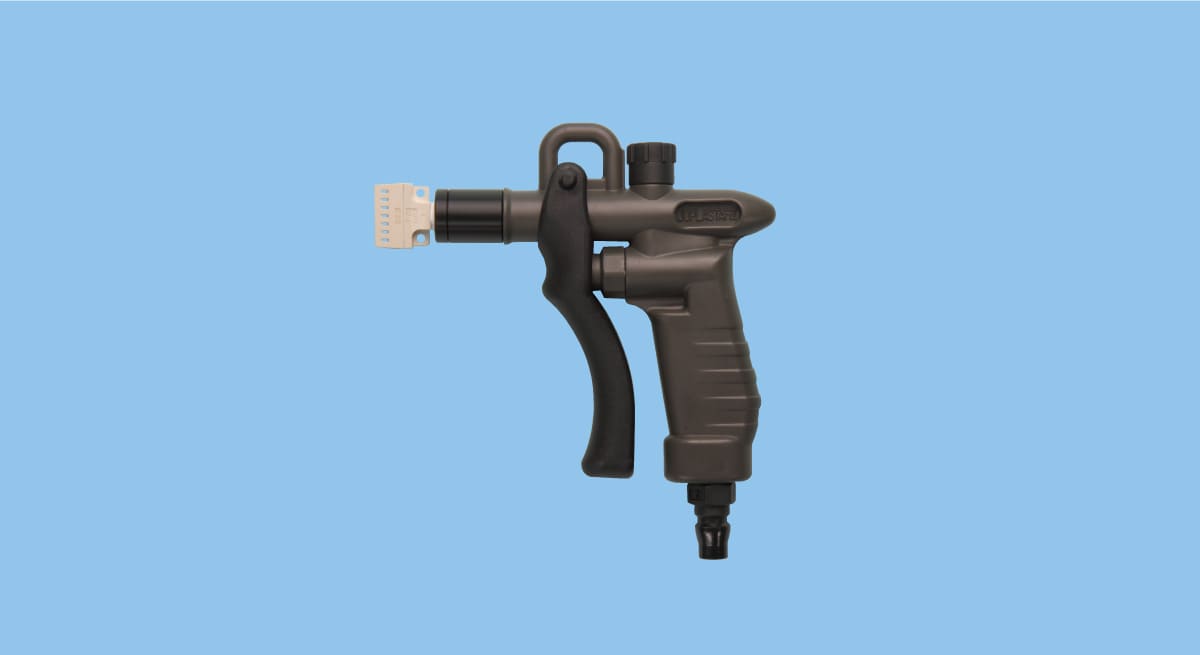

TF-GUN with TF-F24: 200 L/min, Normal

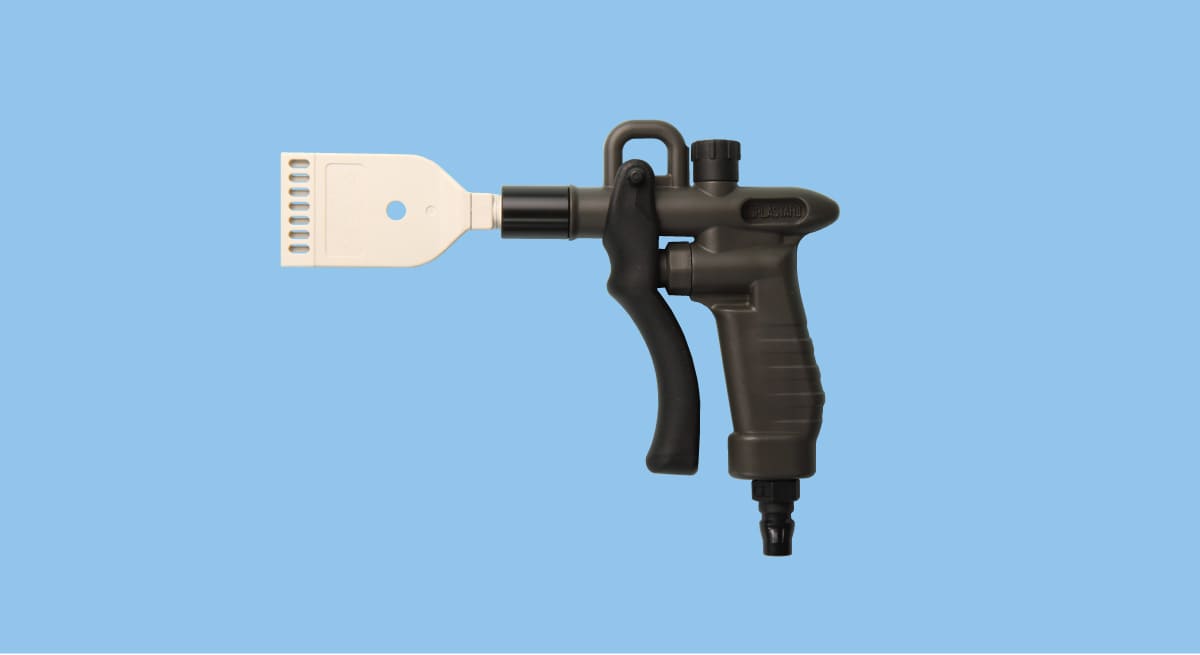

TF-GUN with TF-F42: 350 L/min, Normal
Resources for Download
• Easy-to-use air duster gun with TAIFUJet nozzle.
• Available with three different nozzles: TF-R (round jet), TF-F24 (compact flat jet), or TF-F42 (flat jet).
• Air volume is adjustable with built-in valve.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
- Blowing off: Blowing off cutting chips, Blowing off coating powder, Rejection of inferior products, Blowing off dust on steel plates
- Cooling: Pinpoint cooling for molded plastic
- Others: Detachment, Cleaning, etc.
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
