Seven-head Full Cone Spray Nozzles
7KB
Hydraulic multi-nozzle spray headers forming a nearly round-shaped spray pattern when overlapping individual spray patterns. The inner parts of the nozzles are made of ceramic, making them excellently wear-resistant.
Specs
| Liquid Inlet Thread Size | Rc3/4 |
|---|---|
| Main Material | S303 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Fog Classification | Fine fog, Semi-fine fog |
| Mean Droplet Diameter | 45–210 μm |
| Standard Pressure | 0.7 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.23–10.9 L/min |
| Spray Angle at Standard Pressure | 180º |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
Resources for Download

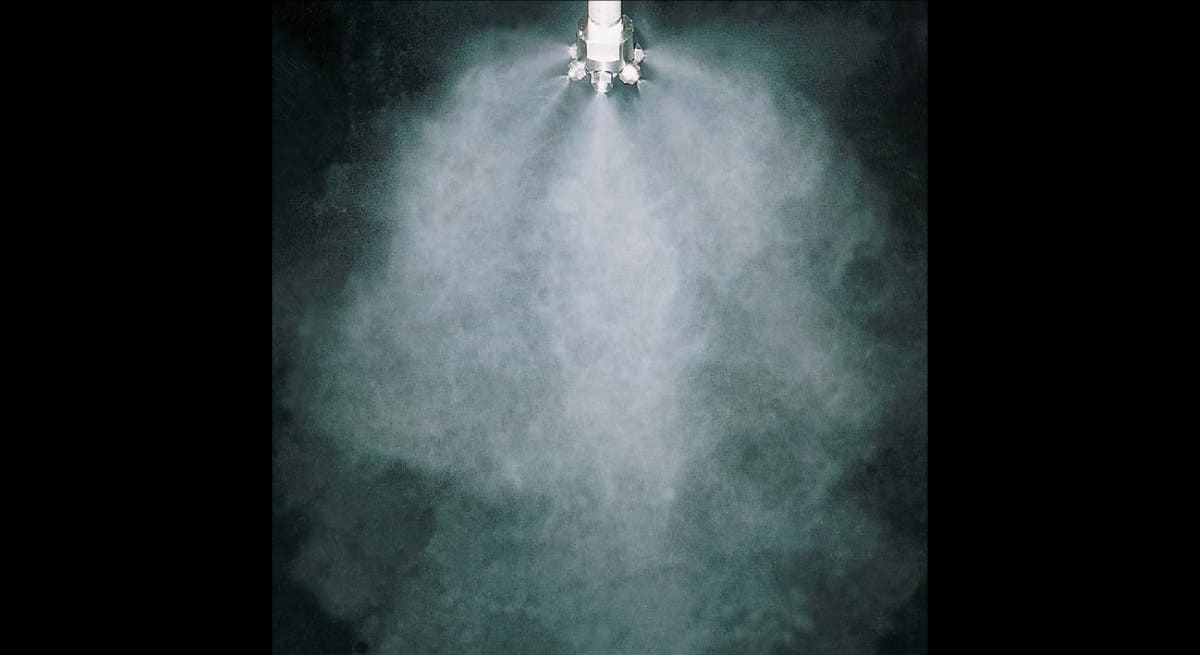

• Full cone spray nozzle with an almost round-shaped spray area.
• Produces fine atomization.
• Seven KB hollow cone spray nozzles are installed in a very compact header adaptor.
• KB series nozzles with ceramic whirl chambers and orifices provides excellent wear-resistance.
Applications
- Gas cooling
- Cleaning
- Moisture control
- Humidification
- Dust suppression
Industries where this nozzle is used
- Pollution control
Structure

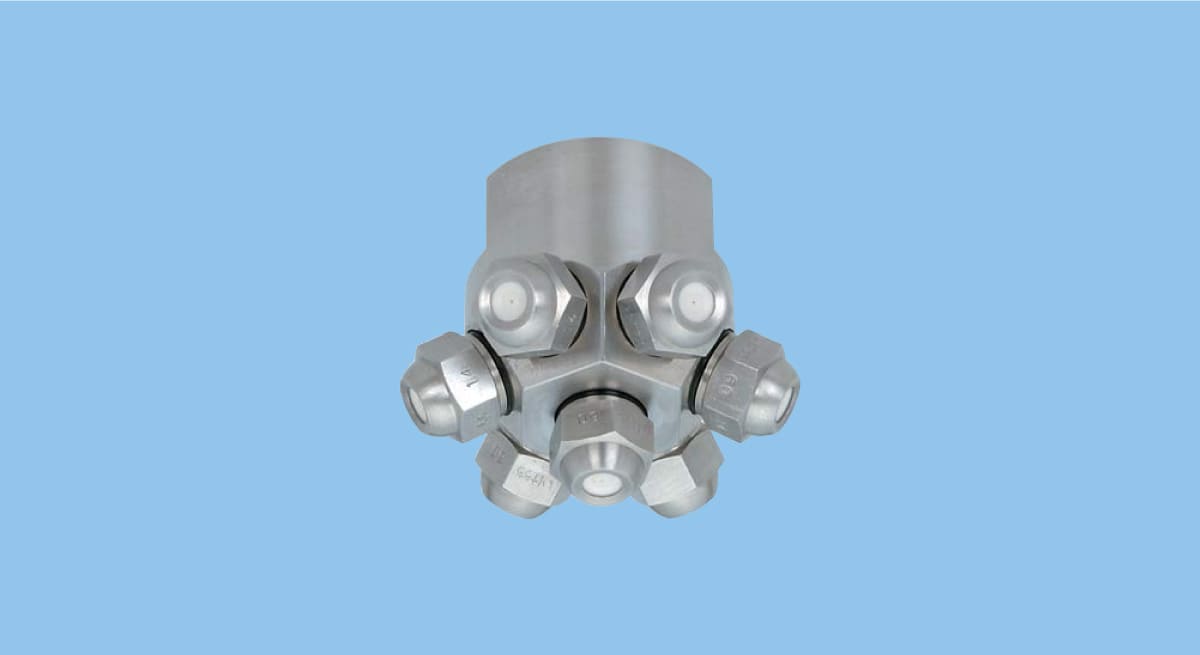

- • 7 pcs. of KB series hollow cone spray nozzles (spray angle code 60ﾟ ) are screwed into a header adaptor.
- • Nozzle orifice and closer are made of ceramics.
- • Each KB series nozzle has a built-in strainer.
