Hollow Cone Spray Nozzles
AAP
Hydraulic hollow cone spray nozzles, featuring a tangential design with the spraying axis at a 90˚ angle from the nozzle inlet, produce relatively fine droplets. Their design without a whirler allows for a large free passage diameter.
Specs
| Liquid Inlet Thread Size | R1/4, R3/8, R1/2 |
|---|---|
| Main Material | S304 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 260–800 μm |
| Standard Pressure | 0.2 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 1.00–23.0 L/min |
| Spray Angle at Standard Pressure | 75º, 80º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• Stable spray pattern at both low and high pressure.

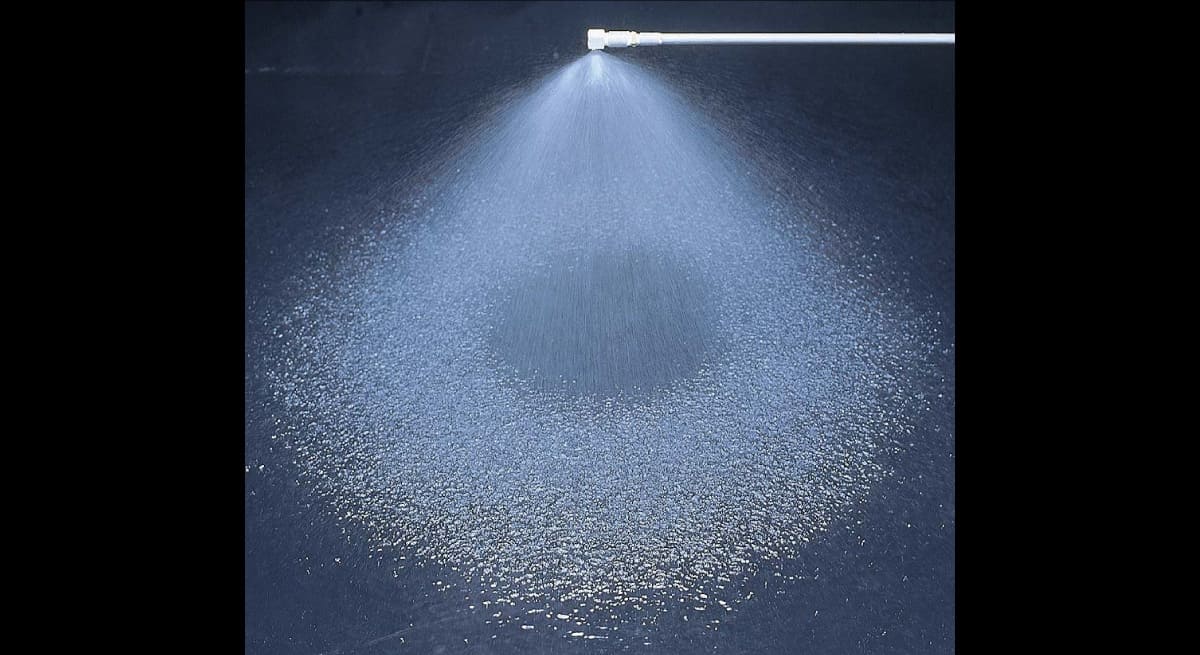

• Hollow cone spray nozzle with relatively fine atomization.
• No-whirler design minimizes clogging.
• Spraying axis 90ﾟ from the axis of the nozzle inlet.
Applications
- Cleaning: Gas, air, machines, pre-painting treatment
- Cooling: Gas, air handling unit, roofs, machineries, foods, warm water
- Spraying: Aeration, humidification
Industries where this nozzle is used
- Pollution control

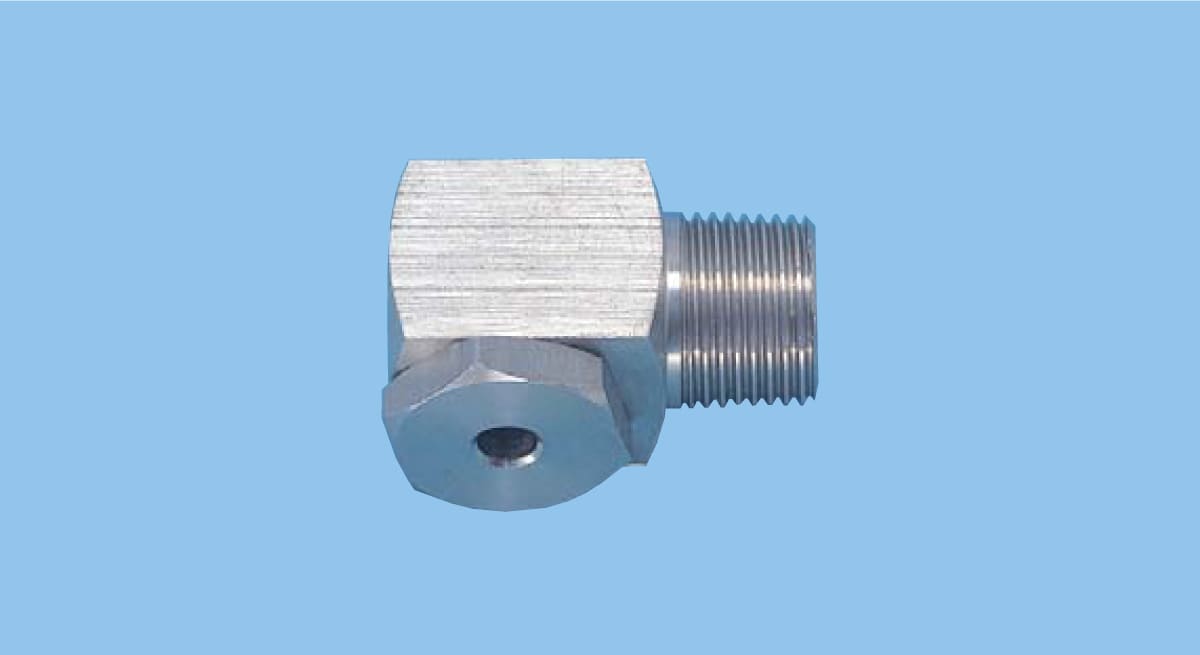

Structure
- Includes a nozzle body and orifice cap.
- Orifice cap is screwed into the nozzle body.
