Detergent Foam Spray Nozzles (Solid Stream) AWCC
Compressor-free hydraulic spray nozzles generate and spray dete…
- Made-to-Order
- Cleaning
- Automotives
- Food
- Machinery
- Steel
- Transportation
Detergent Foam Spray Nozzles (Flat Spray Pattern)
AWVV
Compressor-free hydraulic flat spray nozzles generate and spray detergent foam using only liquid pressure to draw in air.
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S303 |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 1.00–5.00 L/min |
| Spray Angle at Standard Pressure | 80º, 100º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• Flat spray nozzles for detergent spraying.
• Generates large amounts of foam, air suction is driven only by liquid pressure.
• No compressor is necessary.
• Cleaning effect is improved due to the long residence time of the foam.
*Spray angle of 80–100ﾟ is for reference only, measured when spraying 100 times diluted commercial dishwasher detergent.
Applications
- Washing outer surface of vehicles
- Cleaning of conveyors in food industry
Industries where this nozzle is used
- Machinery
- Food
- Automotives

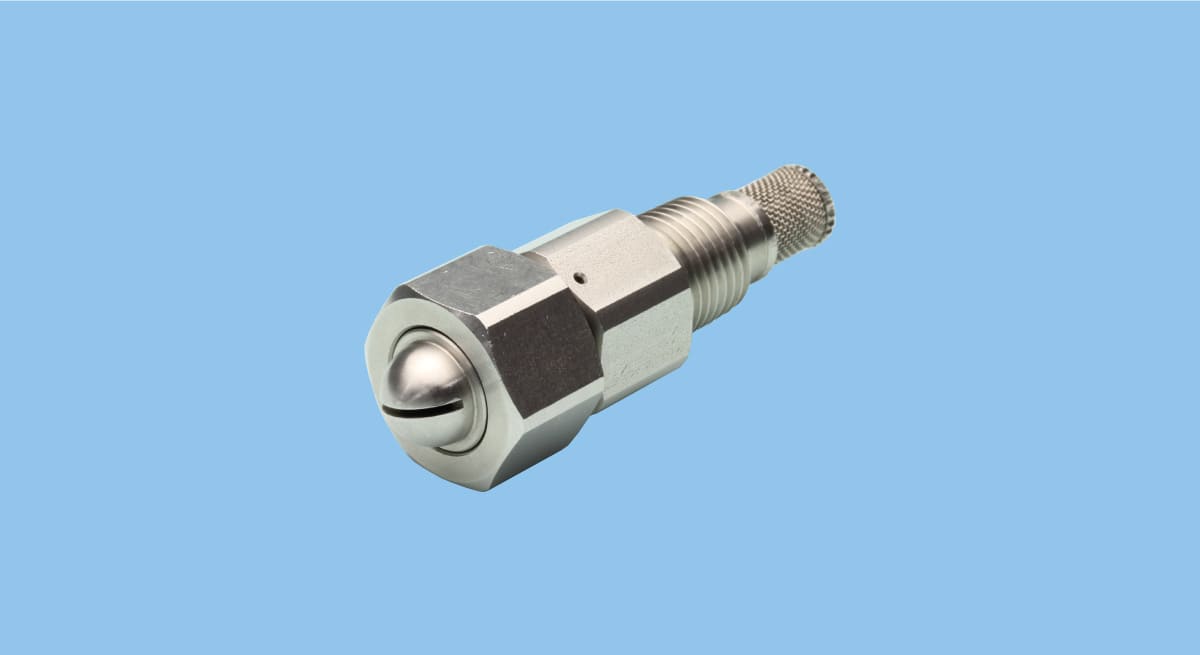

Structure
- Made of metal.
- Comprises a nozzle tip, cap, adaptor, and strainer.
