Full Cone Spray Nozzles

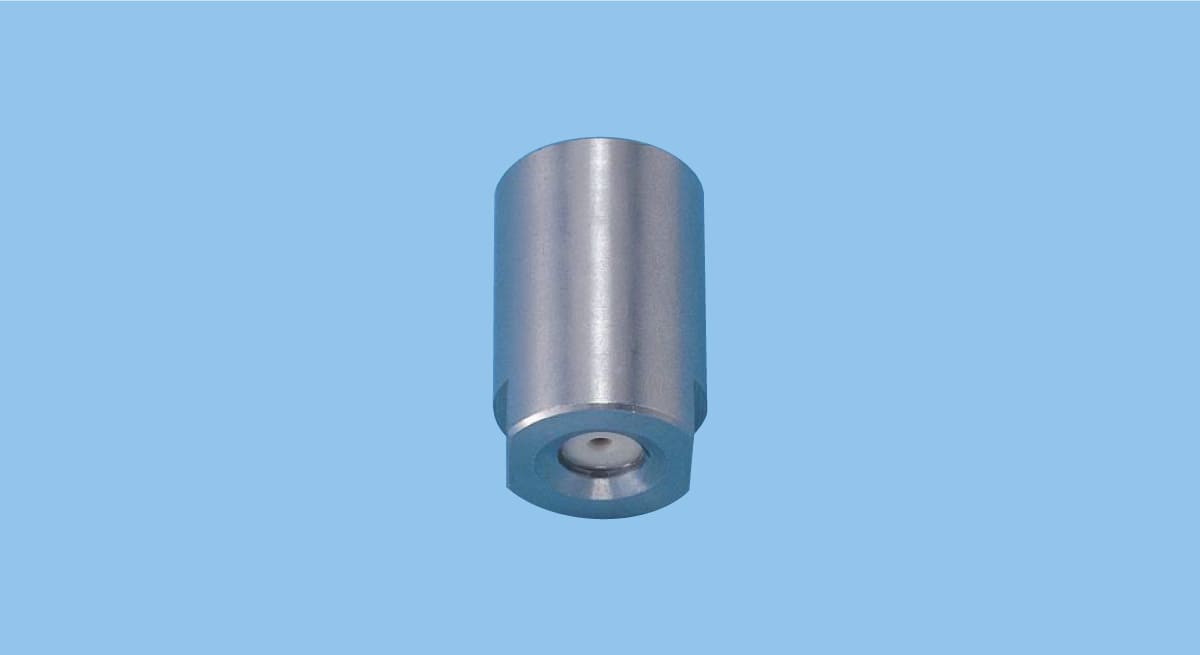

JUP
Hydraulic full cone spray nozzles with a round-shaped spray area and a uniform spray distribution, designed for coverage of medium flow rate range, featuring a wear-resistant ceramic orifice and a whirler.
Specs
| Liquid Inlet Thread Size | Rc3/8-Rc1*1/2 |
|---|---|
| Main Material | S303, S316 *1 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 380-1,000 μm |
| Standard Pressure | 0.2 MPa |
| Spray Angle | 60-85º |
| Spray Capacity (Flow-rate) at Standard Pressure | 3.00-90.0 L/min |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Sizes Rc1 or smaller: S303, Sizes Rc1 1/2 or larger: S316
Resources for Download

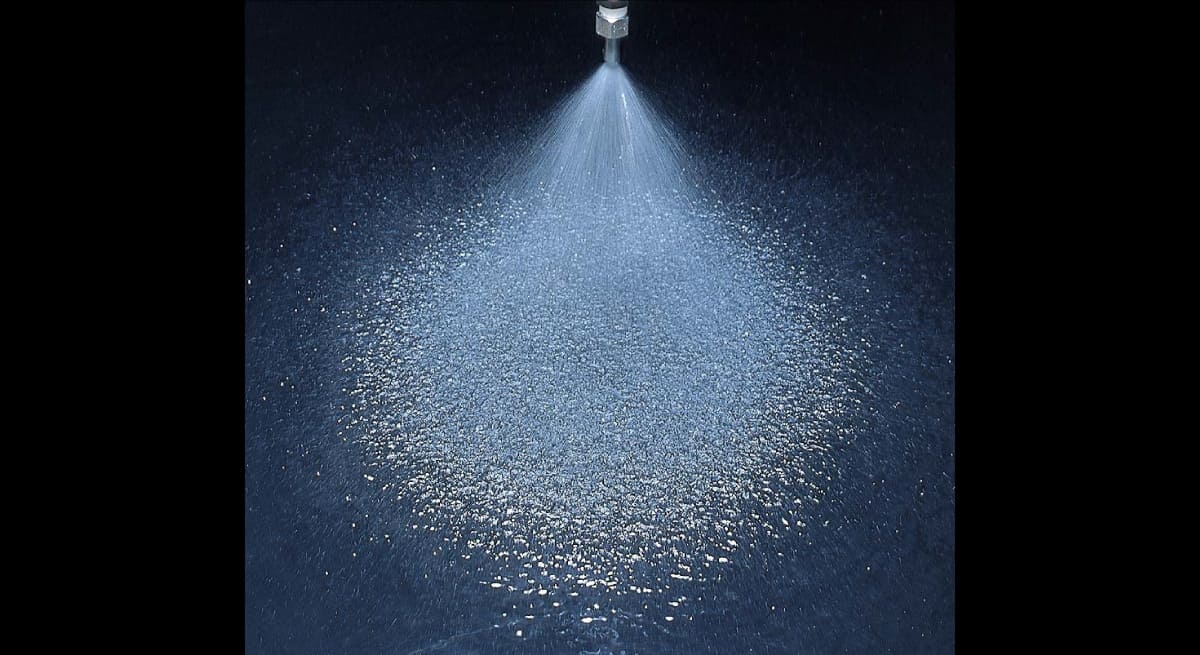

• Full cone spray pattern with a round impact area and uniform distribution.
• Ceramic disc whirler and ceramic orifice forming vortex chamber provide excellent wear resistance.
• Medium spray capacity range.
Applications
- Cleaning: Gas, incinerator fumes, machinery, eliminators, screen, tanks, parts, crushed stones, earth and sand
- Cooling: Gas, machinery, tanks, steels
- Spraying: Waste water treatment, aeration, foam breaking, dust suppression
Industries where this nozzle is used
- Steelmaking
- Pollution control
Structure
- One-piece structure with ceramic whirler and orifice forming vortex chamber.
