Pulse Spray Nozzles
SD-CC

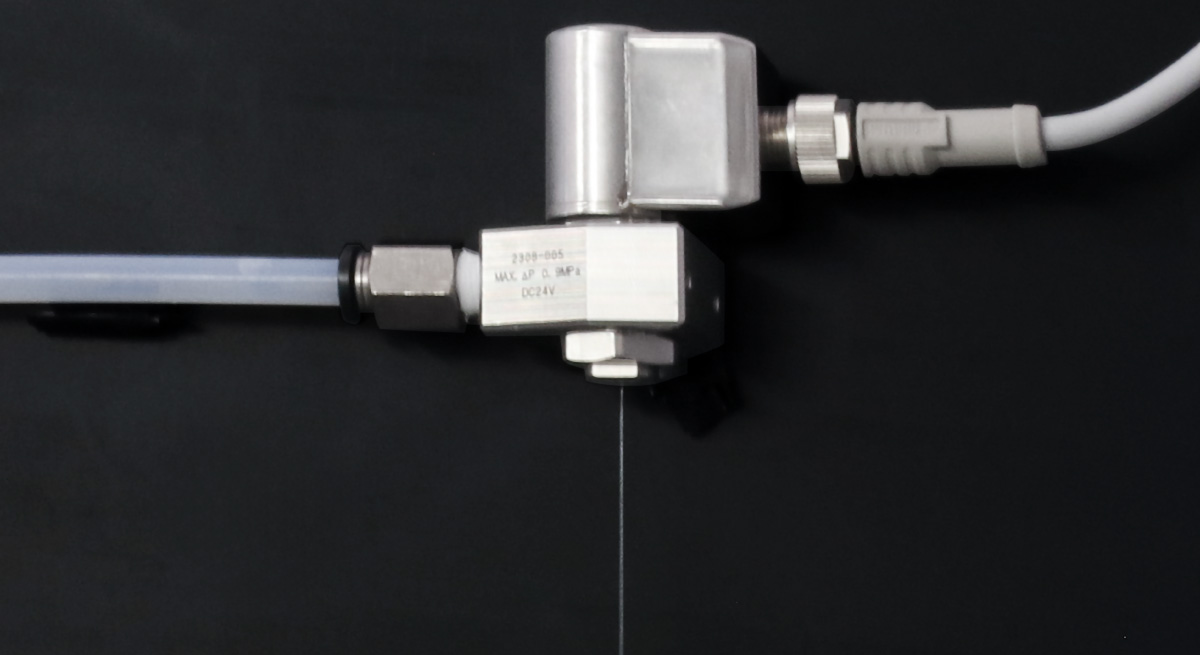

This solenoid-controlled spray nozzle achieves intermittent pulse spraying with a minimum duration of 0.05 seconds, delivering a small amount of 0.05 cc per shot. It is particularly suitable for applying a small amount of oil or chemicals, as well as for marking purposes, due to minimal splatter during spraying. The nozzle complies with the IP67 standard for dust and waterproof protection.
Additionally, it uses materials that comply with the Food Sanitation Act in Japan in the solenoid's liquid-contact parts.
Furthermore, the SD-VV series with a flat spray pattern, and the SO-CC series controlled by pilot air instead of solenoid-controlled, are available.
Specs
| Liquid Inlet Thread Size | Rc1/8 |
|---|---|
| Weight | 220g |
| Main Material | S303, S304 |
| Max. Temperature | 60℃ |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) | 0.09–1.00 L/min |
- Protection structure: IP67
- The materials used in the parts that come into contact with liquids comply with the Food Sanitation Law in Japan.
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

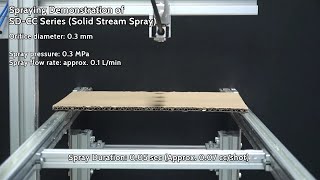

• Controls the spray ON/OFF with electrical signal ON/OFF. Intermittent spray with min. 0.05 sec/ shot and as little as 0.05 cc/shot is possible.
• Ideal for applying a small amount of coating or marking with minimal splatter, saving liquid used.
• Nozzle tips can be replaced with a different orifice diameter code to adjust the spray flow rate.
Applications
- Coating: Water, oil, lubricant, insecticide, herbicide, aqueous solution
- Moisture control: Paper, food
- Cooling: glass plate
- Suited for minimizing liquid splatter
Industries where this nozzle is used
- Machinery
- Paper & Pulp
- Printing
- Food
Structure

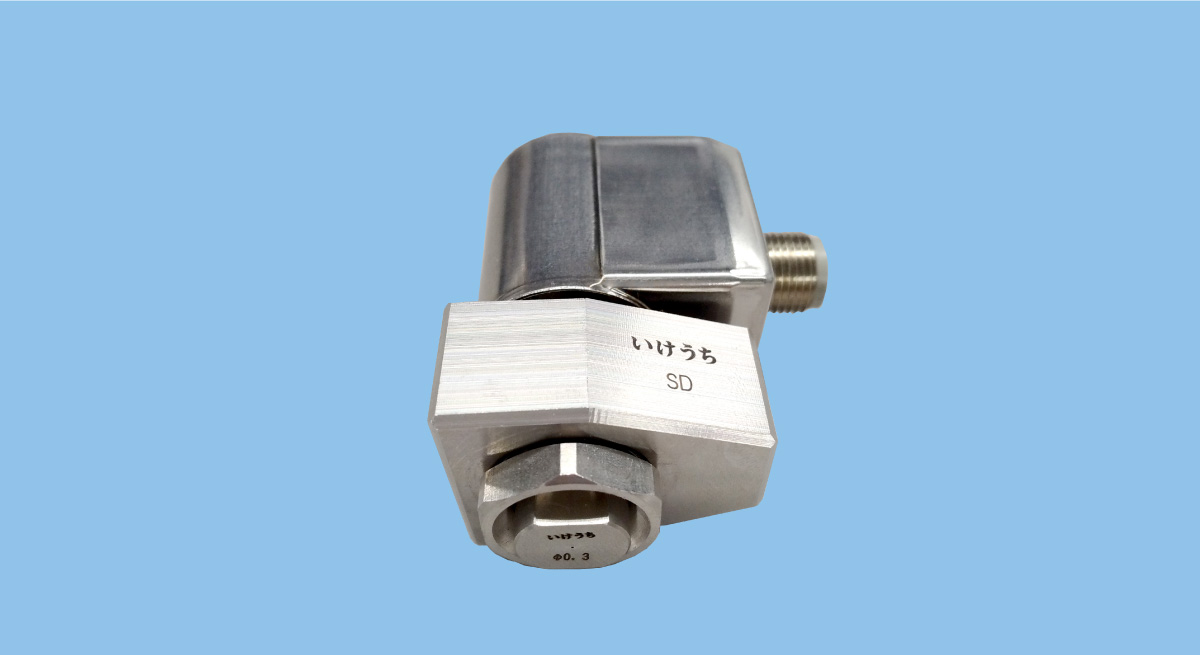

- Includes a nozzle tip, cap, and adaptor-solenoid section. Worn-out nozzle tips can be replaced separately.
