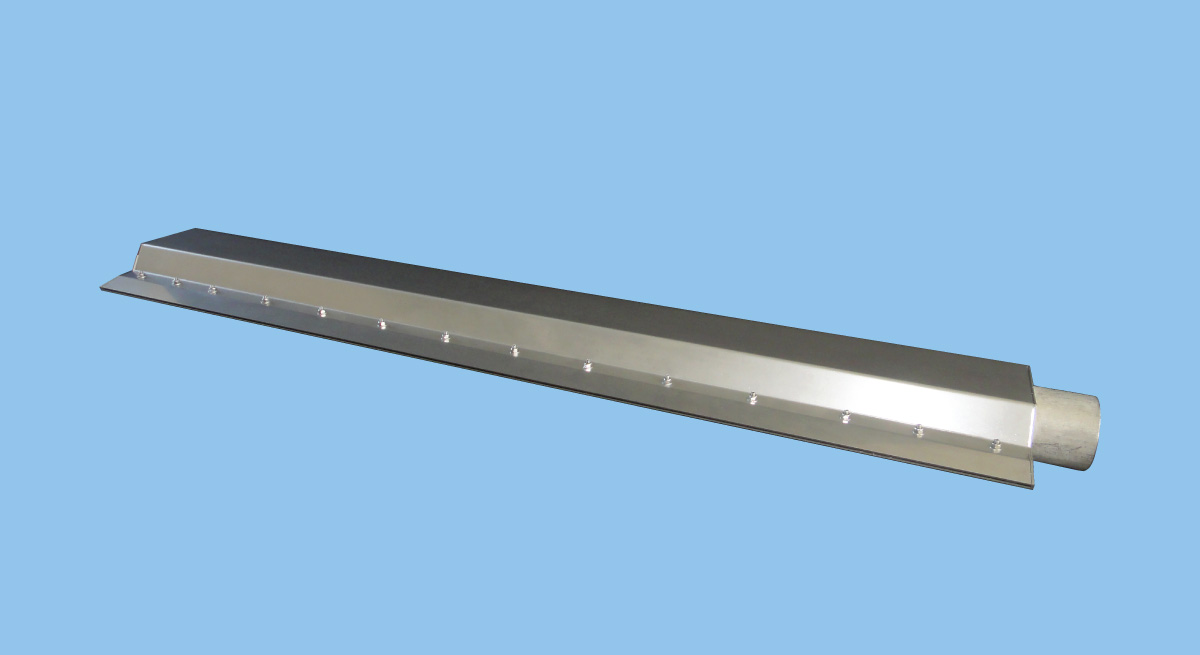

Slit Nozzles for Air Blowing
SLNB
Long slit nozzles that utilize blower air produce an even impact distribution in the width direction. Their tapered lips enable air blowing in confined spaces, such as between rolls.
Specs
| Inlet Size | φ38.0–φ63.5 |
|---|---|
| Main Material | S304 |
| Slit Length | 400–1,200 mm *1 |
| Slit Opening | 0.5 mm or 1.0 mm |
| Air Supply | Blower air |
| Max. Operating Pressure | 30 kPa (0.03 MPa) |
| Max. Temperature | 100°C *2 |
| Air Consumption | 0.97–5.73 ㎥/min, Normal *3 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Customizable total length from 250 mm to 1,950 mm.
*2) 150°C for the optional heat-resistant type.
*3) Measured at 5 kPa, for the slit length from 400 to 1,200 mm:
0.97–2.91 m3/min [970–2,910 L/min], Normal for slit opening of 0.5 mm
1.91–5.73 m3/min [1,910–5,730 L/min], Normal for slit opening of 1.0 mm
Resources for Download
• Slit nozzle produces even air flow with uniform impact distribution.
• Interior design minimizes pressure loss and maximizes blowing impact. Able to reduce energy consumption by 2/3 compared to compressed air nozzles.
• Long thin slit with tapered lip ideal for installation between rollers or in tight spaces.
• Customizable total length from 250 mm to 1,950 mm.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
