2D Rotational Tank Cleaning Nozzles
ES (Metal)

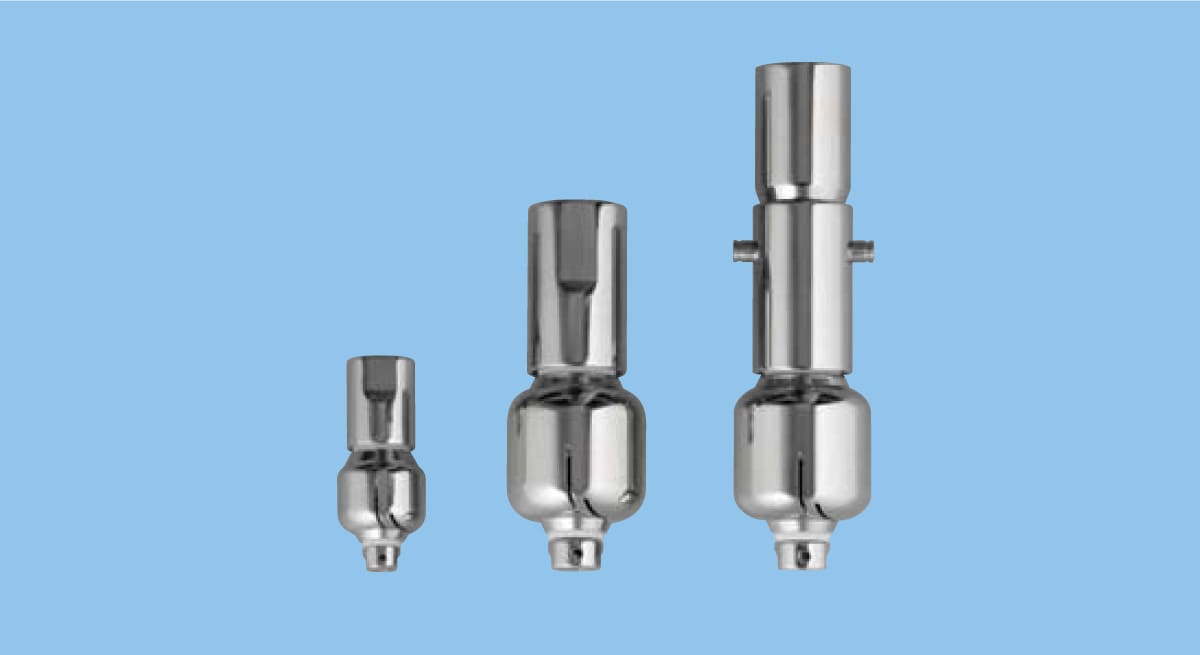

A lineup of tank cleaning nozzles with two-dimensional rotation, enabling cleaning of 360 degrees, upward 180 degrees, or downward 180 degrees.

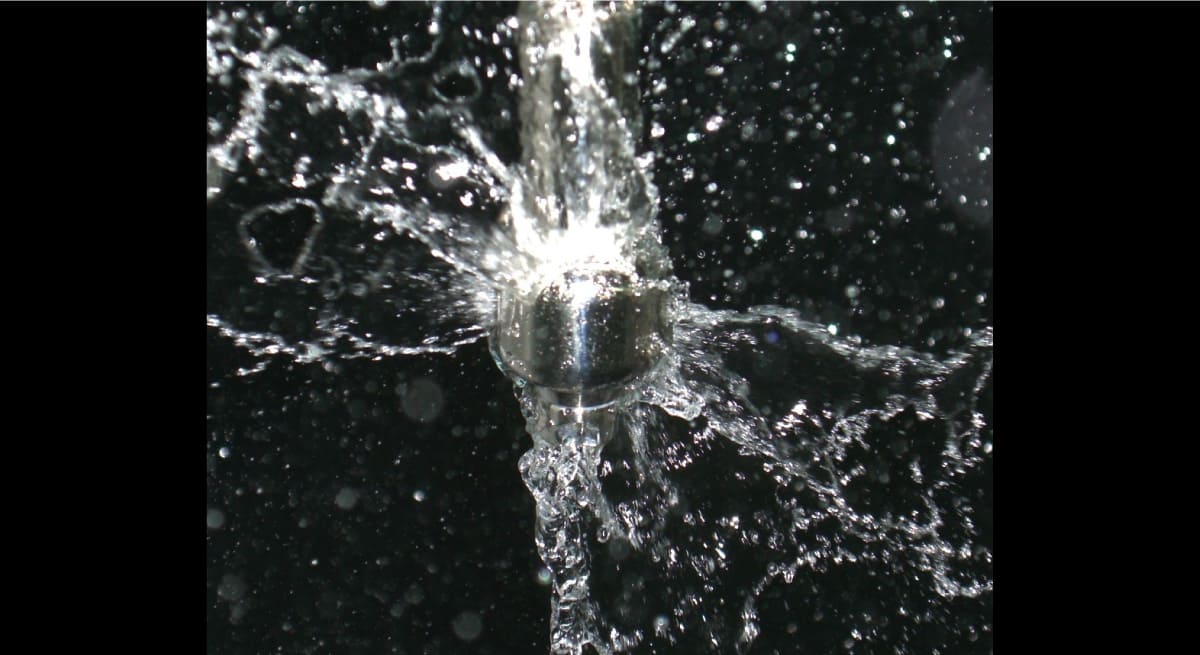

They rotate solely by the force of the cleaning liquid, eliminating the need for external power, and can be installed in any orientation including sideways, upward or other directions. Additionally, the connection method for the water supply part is selectable between a screw type and a pin type.
Specs
| Liquid Inlet Thread Size | [ES-N] Thread connection: Rc1/8–Rc1*1/2, [ES-P] Pin connection: φ10.5–φ50.8 |
|---|---|
| Weight | 20g–1,820g |
| Main Material | S316L |
| Max. Temperature | 60℃ |
| Reach Distance of Spray | Approx. 0.5–7.3m |
| Operating Pressure for Liquid | 0.1–1.0 MPa |
| Spray Capacity (Flow-rate) | 4.0–803.3 L/min *1 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Spray flow rate in the above operating pressure range. See the flow-rate diagrams and chart for details.
Nozzle mounting direction to tank:
The ES Series can be installed in any direction, 360 degrees.
The data in this catalog are the values from top of the tank installations.
Resources for Download
• No external power is needed as rotation is driven solely by the flow of the cleaning liquid.
• Maintenance is easy due to the low parts count.
• Internal design greatly reduces dripping from the nozzle tip. Maintains high level of cleanliness because it is self-cleaning.
• ES series can be installed in any direction, vertically, horizontally or diagonally.
• Available in two types of connections: thread connection (ES-N) and pin connection (ES-P).
Applications
- For cleaning to easy-to-remove dirt:
- Cleaning of a variety of tanks, such as mixing, blending, and storage tanks
- CIP cleaning
- Cleaning the inside of conveyor tunnels and ovens
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
