3D Rotational Tank Cleaning Nozzles
JA3 (JET ATTACKER)
JET ATTACKER Series: tank cleaning nozzles with three-dimensional rotation capable of 360-degree cleaning.
They rotate solely by the force of the cleaning liquid, eliminating the need for external power.
Specs
| Liquid Inlet Thread Size | Rc1/2 |
|---|---|
| Weight | 1.70–1.95 kg |
| Main Material | S304, SCS14, S303, PTFE, FKM, S440C |
| Max. Temperature | 60℃ |
| Reach Distance of Spray | JA3-2L: approx. 2–7 m, JA3-2S/4S: approx. 6–9 m |
| Number of Nozzles Attached | 2 or 4 |
| Operating Pressure for Liquid | 0.3–1.2 MPa for JA3-2L, 1.0–3.0 MPa for JA3-2S/4S |
| Spray Capacity (Flow-rate) | 12–85 L/min *1 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) JA3-2L: 24–85 L/min, JA3-2S: 12–35 L/min, JA3-4S: 24–69 L/min
Spray flow rate in the above operating pressure range is for reference only. See the flow-rate diagram and chart for more details.
Nozzle mounting direction to tank:
The JA3 Series can be installed downward within 45° of the vertical center with its liquid inlet up.
The data in this catalog are the values from top of the tank installations.
Resources for Download

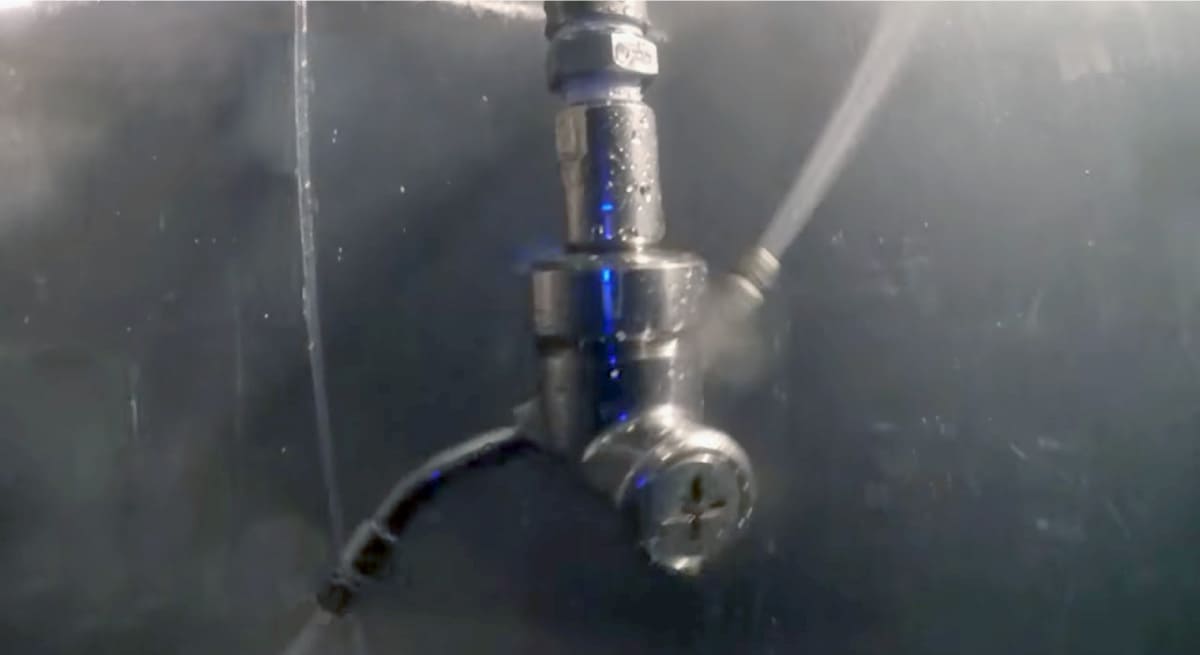

• Three-dimensional rotating solid stream jets powerfully clean the inside of a tank.
• No external power is needed as rotation is driven solely by the flow of the cleaning liquid.
• Simple structure, no turbine or reduction gears.
• Compact and lightweight, at less than 2 kg, with a maximum arm diameter of 240 mm, ensuring reliable cleaning.
• Available for low- and medium-pressure use. The JA3-2L series uses 0.3–1.2 MPa to clean with spray flow volume and the JA3-2S/4S series uses 1.0–3.0 MPa to clean with spray pressure.

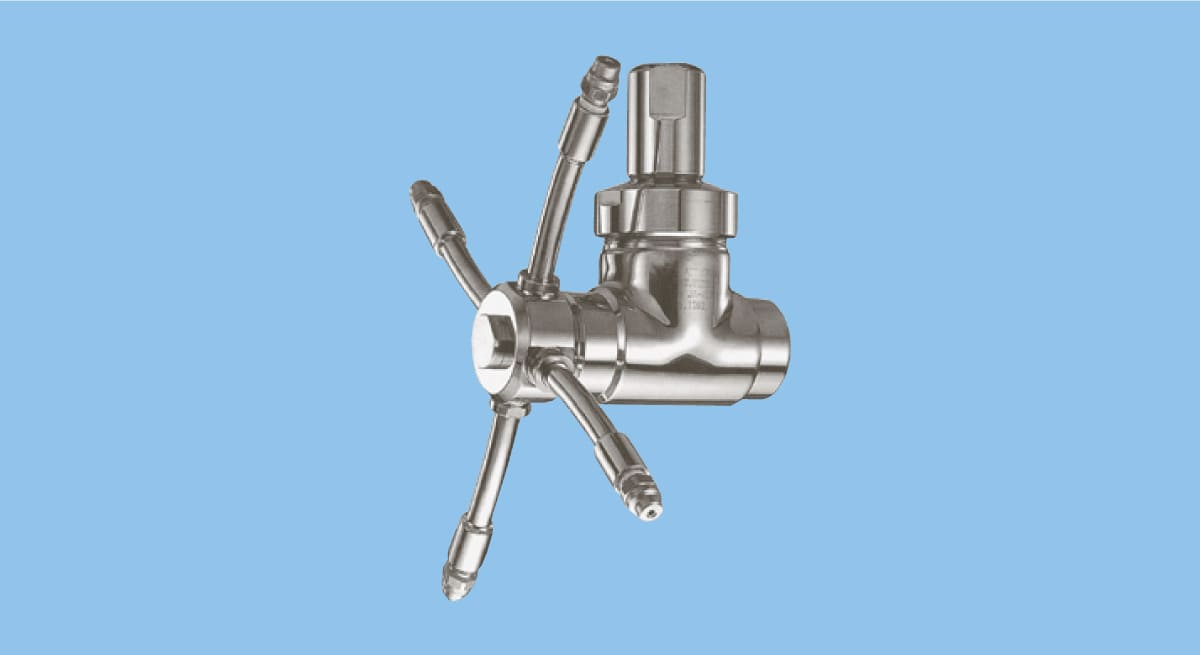

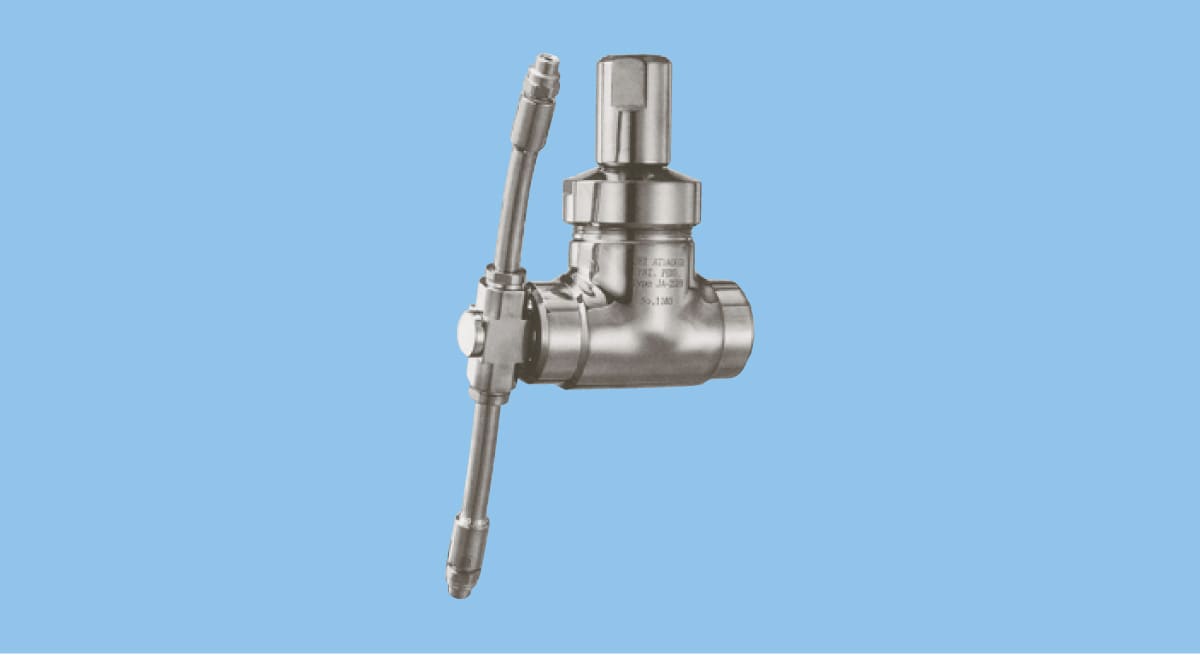

• The JA3-2L/2S series is equipped with two nozzles, and the JA3-4S series with four nozzles.
• Easy to install, reducing equipment costs.
Applications
- For cleaning hard-to-remove dirt:
- Removing tough, sticky and stubborn dirt
- Cleaning of tanks for brewing, fermentation, distillation and storage, cleaning of transport containers
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
- Welfare
