3D Rotational Tank Cleaning Nozzles

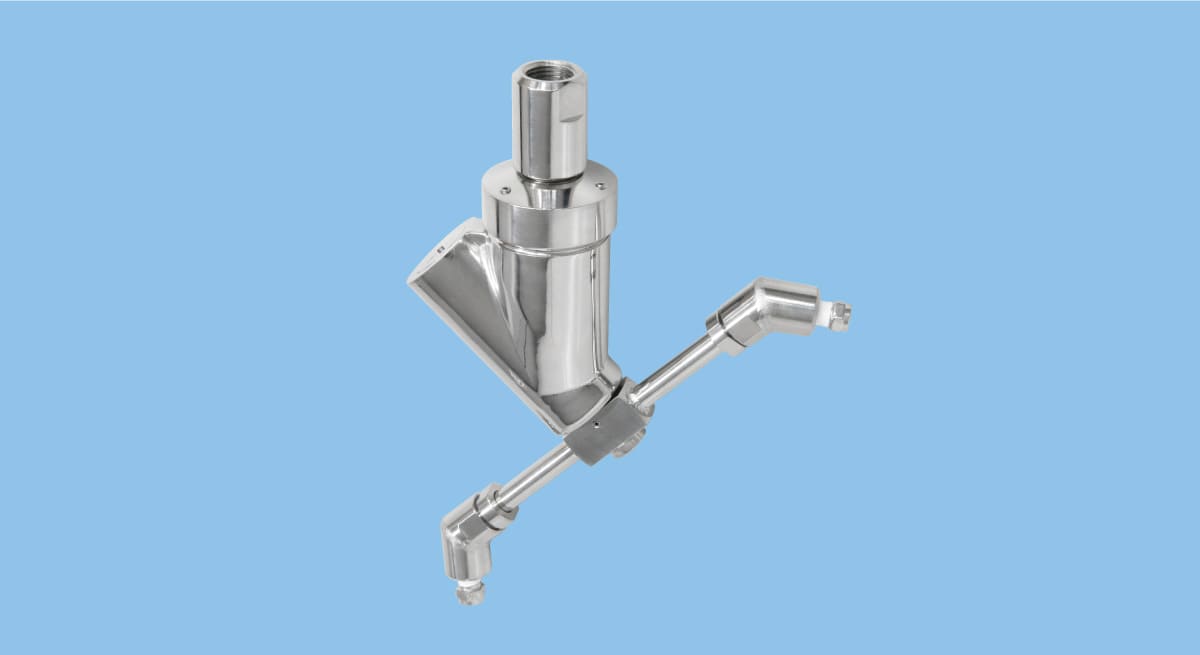

JA3-D180 (JET ATTACKER)
JET ATTACKER Series: tank cleaning nozzles with three-dimensional rotation, capable of cleaning 180-degree downward only.
They rotate solely by the force of the cleaning liquid, eliminating the need for external power.
Specs
| Liquid Inlet Thread Size | Rc1/2 |
|---|---|
| Weight | JA3-2S (D180): 1.9 kg, JA3-4S (D180): 2.3 kg |
| Main Material | S304, SCS14, S303, PTFE, FKM, S440C |
| Max. Temperature | 60℃ |
| Reach Distance of Spray | Approx. 6–9m |
| Number of Nozzles Attached | 2 or 4 |
| Operating Pressure for Liquid | 1.0–3.0 MPa |
| Spray Capacity (Flow-rate) | 12–70 L/min *1 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) JA3-2S (D180): 12–36 L/min, JA3-4S (D180): 24–70 L/min
Spray flow rate in the above operating pressure range is for reference only. See the flow-rate diagram and chart for more details.
Nozzle mounting direction to tank:
The JA3-D180 Series can be installed downward within 45° of the vertical center with its liquid inlet up.
The data in this catalog are the values from top of the tank installations.
Resources for Download

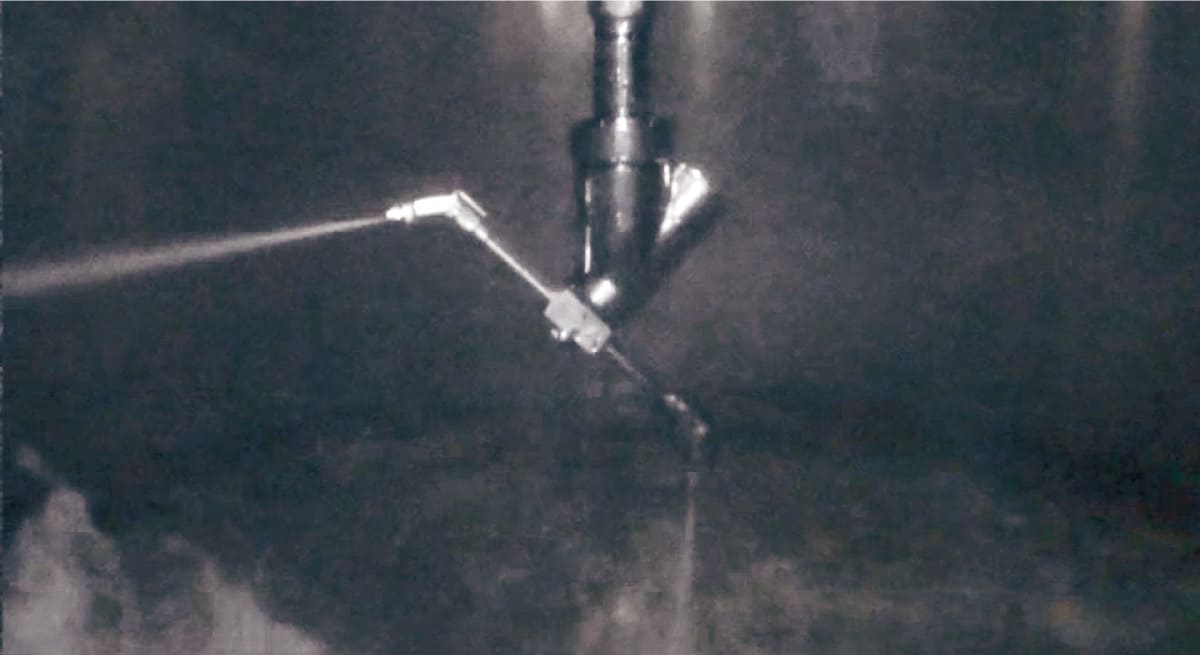

• Three-dimensional rotating solid stream jets powerfully clean the inside of a tank.
• No external power is needed as rotation is driven solely by the flow of the cleaning liquid.
• Easy to install, reducing equipment costs.
• The JA3-2S (D180) series is equipped with two nozzles, and the JA3-4S (D180) series with four nozzles.
Applications
- For cleaning hard-to-remove dirt:
- 180° downward spraying is ideal to clean inside of open-topped tanks and containers.
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
