Products Overview
- HOME
- Products Overview
Product Search
- Humidification and Static Electricity Control
- Cooling and Heatstroke Prevention
- Cleaning and Tank Cleaning
- Applying and Coating
- Drying and Air Blow-off
- Disinfection and Deodorization
- Cooling Solids and Inlet Air
- NOx Removal, Desulfurization, and Gas Cooling
-
- Some Models are Made-to-Order
- Precision Guarantee
- Flat Spray Nozzles
VVP
Operating pressure:0.05-2 MPa
Spray capacity:0.20–150 L/min (0.3 MPa)
Spray angle:15ﾟ, 25ﾟ, 40ﾟ, 50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303, PP, PVDF
-
- Ceramic Orifice
- Precision Guarantee
- Even Flat Spray Nozzles
VEP
Operating pressure:0.05-5 MPa
Spray capacity:0.30–46.9 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303, B, PVDF
-
- Precision Guarantee
- Wide-angle Flat Spray Nozzles
YYP
Operating pressure:0.03-0.2 MPa
Spray capacity:0.30–250 L/min (0.3 MPa)
Spray angle:100°, 115°, 120°, 130°, 135°, 140°
Material:S303, PVC
-
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)
INVV (Plastic)
Operating pressure:0.05-0.7 MPa
Spray capacity:0.50–5.00 L/min (0.3 MPa)
Spray angle:50°, 65°, 90°, 115°
Material:Nozzle tip: PP, Adaptor: PP or PPS
-
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles
KB
Spray capacity:2.00–107 L/hr (0.7 MPa)
Mean droplet diameter:45–210 μm
Material:S303, B
Free passage diameter:0.15–0.60 mm
-
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles
KBN
Spray capacity:2.00–7.25 L/hr (0.3 MPa)
Mean droplet diameter:35–60 μm
Material:Polyamide
Free passage diameter:0.2–0.4 mm
-
- Precision Guarantee
- Hollow Cone Spray Nozzles
AAP
Spray capacity:1.00–23.0 L/min (0.2 MPa)
Spray angle:75–80°
Material:S304
Free passage diameter:2.0–8.0 mm
-
- Made-to-Order
- Precision Guarantee
- Spray Nozzles for Spraying Slurries
TAA
Spray capacity:200–1,200 L/min (0.07 MPa)
Spray angle:67–80°
Material:SiC
Free passage diameter:28–68 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP
Spray capacity:0.50–1200 L/min (0.2 MPa)
Spray angle:55–105°
Material:S303, S316
Free passage diameter:0.4–20.0 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP
Spray capacity:1.50–1200 L/min
Spray angle:120°
Material:S303, S316
Free passage diameter:0.7–21.7 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75°, 80°, 85°, 90°
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Precision Guarantee
- Quick-detachable
- Full Cone Spray Nozzles (Quick-detachable)
INJJX
Spray capacity:1.00–6.00 L/min
Spray angle:65°, 70°, 75°
Material:Nozzle tip: PP, Adaptor: PP or PPS
Free passage diameter:0.8–2.0 mm
-
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles
CP
Operating pressure:0.1-15 MPa
Spray capacity:2.47–104 L/min (3 MPa)
Free passage diameter:0.8–5.4 mm
Material:S303
-
- Precision Guarantee
- Solid Stream Spray Nozzles (Convex Round Inlet)
CCRP
Operating pressure:0.3-3 MPa
Spray capacity:0.52–8.26 L/min
Material:S303
-
- Ceramic Orifice
- Paper Trimming Nozzles
CM-FB
Operating pressure:0.5-5 MPa
Spray capacity:0.12–0.49 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Spray Control
- Solid Stream Spray Nozzles (with On-off Control)
SO-CM
Operating pressure:0.3-0.5 MPa
Spray capacity:0.08–0.75 L/min (0.3 MPa)
Material:S303
-
- Spray Control
- Spray Gun Unit with BIM Nozzles
BIMV
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:45°, 80°, 110°
Material:S303
-
- Spray Control
- Fine Fog, Full Cone Spray Nozzles
BIMJ
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70°, 20°
Material:S303
-
- Clog Resistant
- High-viscosity Liquid Spray
- Full Cone Nozzles for Spraying Viscous Liquid
SETOJet
Mean droplet diameter:20–60 μm
Spray capacity:2.0–111 L/hr
Material:S303
-
- Compact
- High Spray Impact
- Flat Spray Nozzles
VVEA
Mean droplet diameter:20–400 μm
Spray capacity:0.23–3.0 L/min
Spray angle: 60°, 80°
Material:S303
-
- Compressor
- TAIFUJet
- Flat Air Nozzles
TF-FS42 (Metal)
Air consumption:280–630 NL/min (0.3 MPa)
Max. operating pressure:1.0 MPa
Noise level:73–82 dBA
Material:S316L equivalent
-
- Compressor
- TAIFUJet
- Round Air Nozzles
TF-R (Metal)
Air consumption:157–627 NL/min (0.3 MPa)
Max. operating pressure:1.0 MPa
Noise level:71–87 dBA (0.3 MPa)
Material:S316L equivalent
-
- Compressor
- TAIFUJet
- Long, Flat Air Nozzles
TF-PF
Air consumption:1,150–15,100 NL/min (0.3 MPa)
Max. operating pressure:1.0 MPa
Noise level:84 dBA or more (0.3 MPa)
Material:S304
-
- Blower
- Slit Nozzles for Air Blowing
SLNB
Air consumption:0.97–2.91 N㎥/min (5 kPa)
Slit length:400–1,200 mm
Slit width:0.1mm, 0.2 mm
Material:S304
-
- 360°
- ROTARY JETTER
- 3D Rotational Tank Cleaning Nozzles
RJ (ROTARY JETTER)
Spray capacity:25.6–246 L/min (0.2–1.0 MPa)
Reach distance:About 7–12m (RADIUS)
Heat resistance:80℃
Material:S304
-
- 360°
- 2D Rotational Tank Cleaning Nozzles
SR
Spray capacity:9.19–194 L/min (0.15–0.5 MPa)
Reach distance:Approx. 2–5.8 m
Heat resistance:150℃
Material:S316L
-
- 180° downward
- 180° upward
- 360°
- 2D Rotational Tank Cleaning Nozzles
ES (Metal)
Spray capacity:4.0–803.3 L/min (0.1–1.0 MPa)
Reach distance:Approx. 0.5–7.3m
Heat resistance:60℃
Material:S316L
-
- 360°
- Shower Balls
SWB (Shower Balls)
Spray capacity:35.4–395 L/min (0.1–0.5 MPa)
Applicable tank diameter:About 450–3,750 mm
Heat resistance:400℃
Material:S316L
-
- Lengthening Repair Intervals for Refractories
Kiln Shell Cooling System
• Extends the service life of the kiln shell and its refractory bricks.
• Ensures long-term continuous and stable operation of the kiln.
• Stabilizes the internal coating.
• Controls the temperature of the kiln.
-
- Made-to-Order
- Precision Guarantee
- Solid Stream Spray Nozzles (Two Orifices)
2CCP
Operating pressure:0.3-3 MPa
Spray capacity:1.68–3.42 L/min (1 MPa)
Spreading angle:10–25°
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Paper Trimming Nozzles (Two Orifices)
2CM-FB
Operating pressure:0.5-3 MPa
Spray capacity:0.24–0.67 L/min (1 MPa)
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles (Two Orifices)
2CP
Operating pressure:0.3-3 MPa
Spray capacity:0.86–3.42 L/min (1 MPa)
Spreading angle:10–25°
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Solid Stream Spray Nozzles (Seven Orifices)
7CCP
Operating pressure:0.3-3 MPa
Spray capacity:5.88–11.9 L/min (1 MPa)
Spreading angle:15°
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles (Seven Orifices)
7CP
Operating pressure:0.3-3 MPa
Spray capacity:3.01–11.9 L/min (1 MPa)
Spreading angle:15°
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Seven-head Full Cone Spray Nozzles
7JJXP
Spray capacity:7.00–315 L/min (0.2 MPa)
Spray angle:175–215°
Material:S303
Free passage diameter:0.8–4.7 mm
-
- Precision Guarantee
- Seven-head Full Cone Spray Nozzles
7KB
Spray capacity:0.23–10.9 L/min (0.7 MPa)
Spray angle:180°
Material:S303
Free passage diameter:0.15–0.60 mm
-
- Made-to-Order
- 7-outlet Connecting Adaptor
7-outlet Adaptor
Max. operating pressure:1.0 MPa
Heat resistance:80℃
Outlet thread size:Rc1/8
Material:FRPP
-
- Precision Guarantee
- Hollow Cone Spray Nozzles
AAP
Spray capacity:1.00–23.0 L/min (0.2 MPa)
Spray angle:75–80°
Material:S304
Free passage diameter:2.0–8.0 mm
-
- Dry Fog
- Pneumatic Humidification

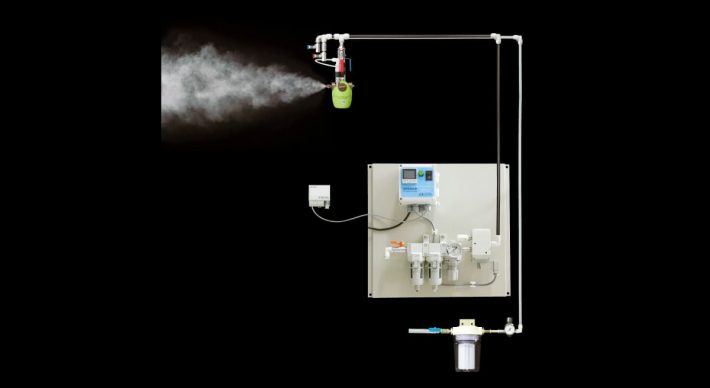

- Dry Fog Humidifier
AKIMist "E"
Humidification method:Pneumatic humidification
Operating pressure:0.2–0.5 MPa
Humidification capacity:1.3–4.5 L/hr (per nozzle)
Air consumption:22–54 NL/min (per nozzle)
-
- Dry Fog
- Pneumatic Humidification
- With Caster Wheels
- Portable Dry Fog Humidifier Set
AE-T Set
Humidification method:Pneumatic humidification
Operating pressure:0.2–0.5 MPa
Humidification capacity:1.3–14.4 L/hr (03C)
Air consumption:22–172 NL/min (03C)
-
- Universal Adaptors for AKIMist-E
AE-UT Adaptor
Material:POM
-
- Dry Fog
- Pneumatic Humidification
- Industrial Humidification System
AirAKI
Humidification method:Pneumatic humidification
Operating pressure:0.2–0.5 MPa
Humidification capacity:1.3–4.5 L/hr (per nozzle)
Air consumption:22–54 NL/min (per nozzle)
-
- Dry Fog
- Hydraulic Humidification
- Pneumatic Humidification
- Semi-Dry Fog
- Hybrid Humidification System
AirHYBRID
• A composite system that utilizes both hydraulic and pneumatic humidification
• The hydraulic humidification establishes the base level of humidity.
• The pneumatic system provides localized humidification where needed.
-
- Hydraulic Humidification
- Semi-Dry Fog
- Humidification System for Industrial Use
AirULM
• Hydraulic humidification system to humidify an entire factory space
• Operates solely with a high-pressure pump without using compressed air.
• Lower operating costs compared to other humidification approaches.
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75°, 80°, 85°, 90°
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles (Alumina Ceramic)
AJP-AL92
Spray capacity:18.0–250 L/min (0.2 MPa)
Spray angle:85°, 90°
Material:92％ Alumina
Free passage diameter:5.1–21.3 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP-PPS
Spray capacity:4.00–16.0 L/min (0.2 MPa)
Spray angle:75–85°
Material:PPS
Free passage diameter:2.2–4.8 mm
-
- Made-to-Order
- Impinging-type Fine Fog Nozzles
AKIJet
Mean droplet diameter:10–120 μm
Spray capacity:10–450 L/hr
Spray width:140–780 mm
Material:S303 equivalent, S303, SCS14, S316
-
- Made-to-Order
- Precision Guarantee
- Hollow Cone Spray Nozzles (Alumina Ceramic)
AP-AL92
Spray capacity:14.0–600 L/min (0.2 MPa)
Spray angle:80°, 85°
Material:92％ Alumina
Free passage diameter:6.8–39.6 mm
-
- ARS Filter
- Filtration Device
- Automatic Strainer
ARS (Auto Reverse Self-cleaning Filter)
Max. filtration capacity:150–2,500 L/min
Types of screen:Metal wire screen , Wedge wire screen
