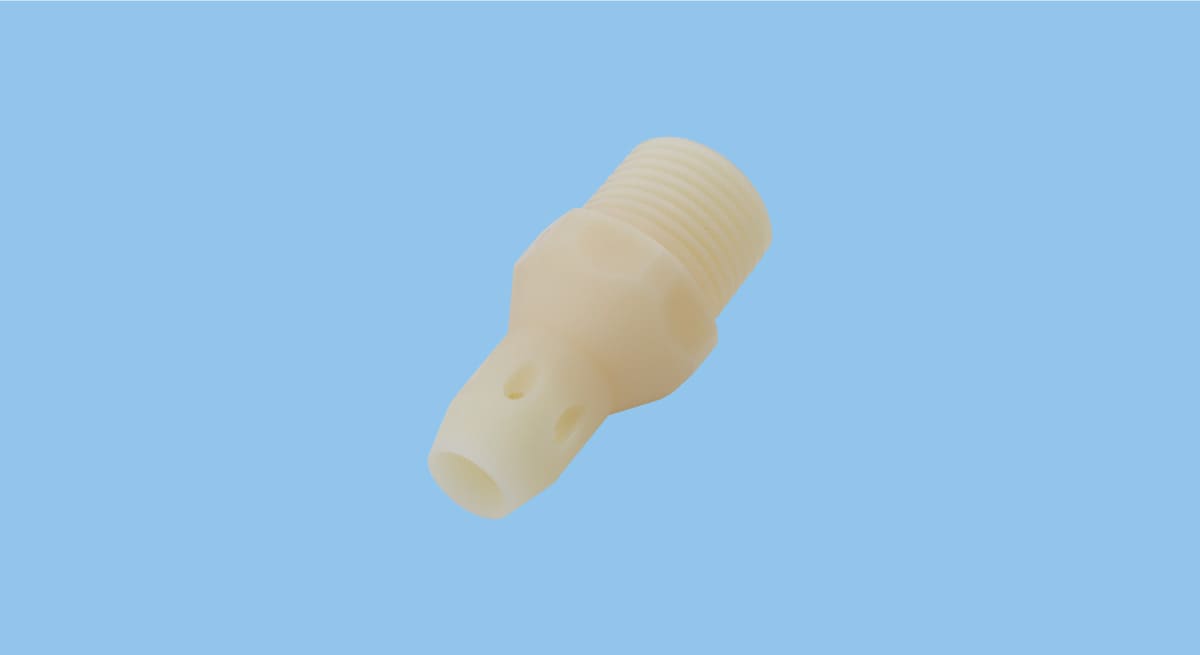

Round Air Nozzles
TF-BR
TAIFUJet Series: air booster nozzles capable of spot blowing.
Click here for the metal version of the TF-BR Series.
Specs
| Air Inlet Thread Size | R1/2 |
|---|---|
| Main Material | ABS |
| Air Supply | Blower air |
| Max. Operating Pressure | 100 kPa |
| Max. Temperature | 80℃ |
| Noise Level | 86 dBA *1 |
| Air Consumption | 0.478 m3/min [478 L/min], Normal at 30 kPa |
| Spray Width at Specified Pressure | 40 mm *2 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Measured at 30 kPa, 1,000 mm distance. (Background noise: 46 dBA)
*2) Measured at 10–50 kPa, 100 mm distance.
Resources for Download
• Round jet air booster nozzle with six orifices generates a powerful, high impact air stream while saving energy.
• It can reduce energy consumption by 2/3 compared to compressed air nozzles.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
- Blowing off: Blowing off cutting chips, Blowing off coating powder, Rejection of inferior products, Blowing off dust on steel plates
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
