Multi-nozzle Header for Air Blowing
TF-M5R
A nozzle header equipped with multiple TF-R nozzles for air blowing, from the TAIFUJet series.
This product, featuring the metal air nozzle TF-R with a round blow pattern, is designed for high-volume and powerful air blowing.
Specs
| Air Inlet Thread Size | Rc3/8 |
|---|---|
| Weight | 800 g |
| Main Material | S316L equivalent & S303 *1 |
| Air Supply | Compressed air |
| Max. Operating Pressure | 1.0 MPa |
| Max. Temperature | 216℃ |
| Noise Level | 83–91 dBA（0.3 MPa） |
| Air Consumption | 1,225–3,136 NL/min (0.3 MPa) |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Nozzle-header and adapter only are also available in lightweight A6061 aluminum upon request.
Resources for Download

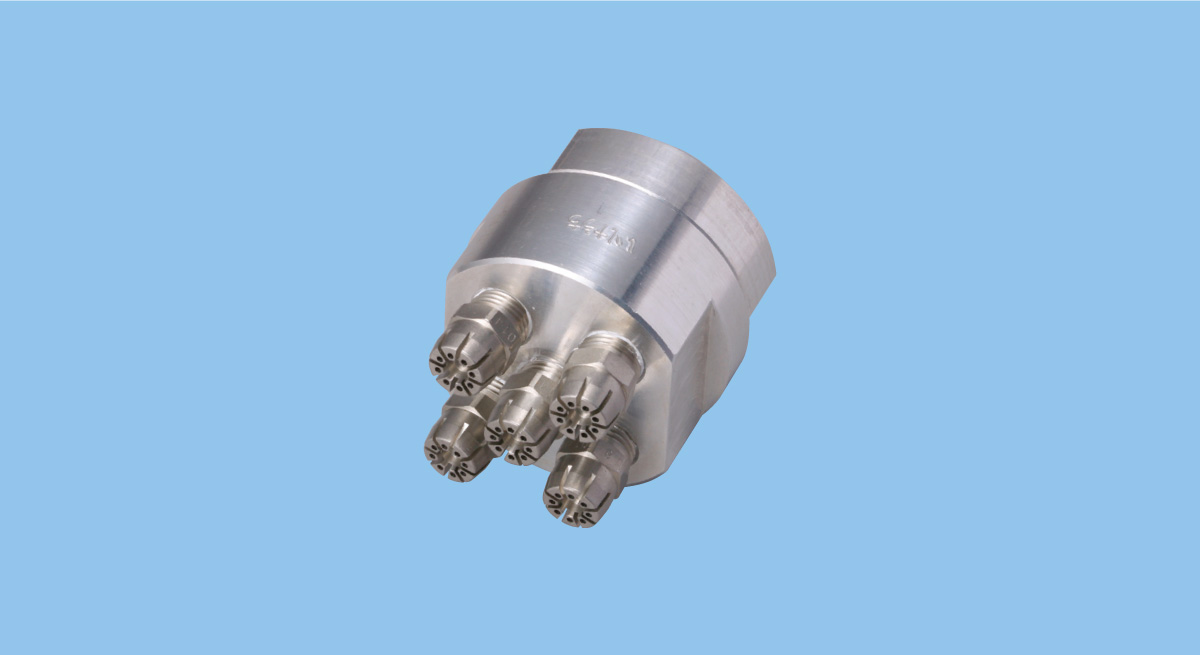

• Header with a cluster of multiple round-type stainless steel air nozzles.
• The unit is made of a cluster of nozzles. One cluster can be equipped with 4, 5, or 7 nozzles upon request.

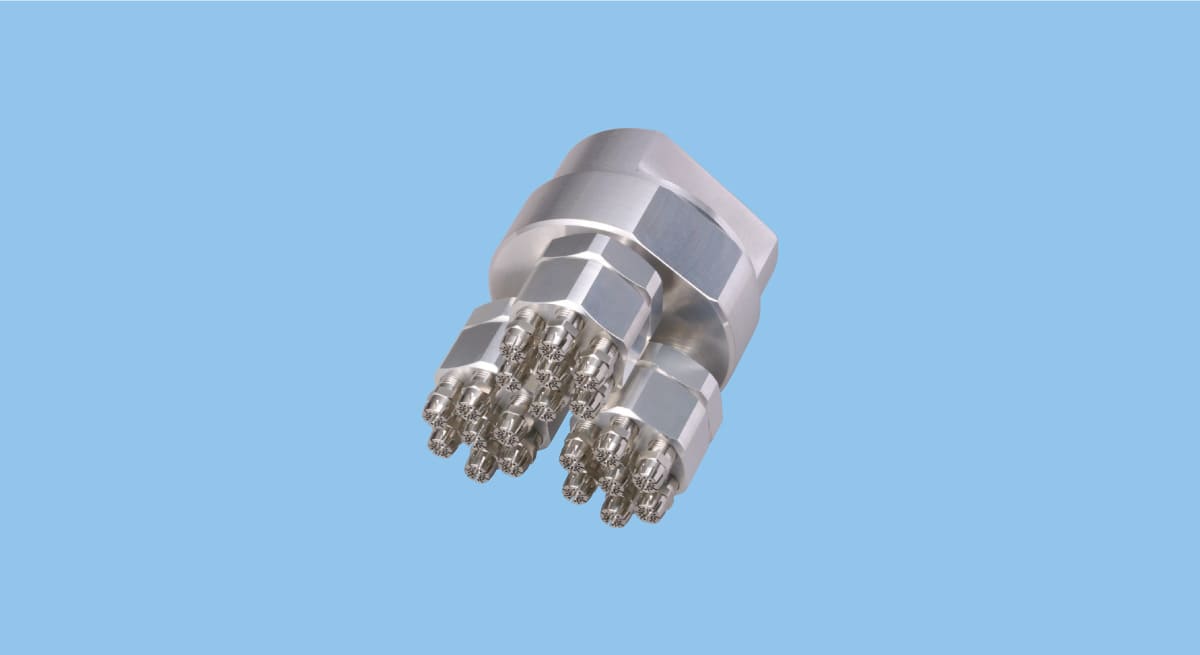

• Also available is the multiple-nozzle triple cluster type, consisting of three clusters of multiple-nozzles in one unit, for application of stronger power.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
- Blowing off: Blowing off dust on steel plates
- Cooling: Pinpoint cooling for molded plastic
- Others: Detachment, Cleaning, etc.
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
