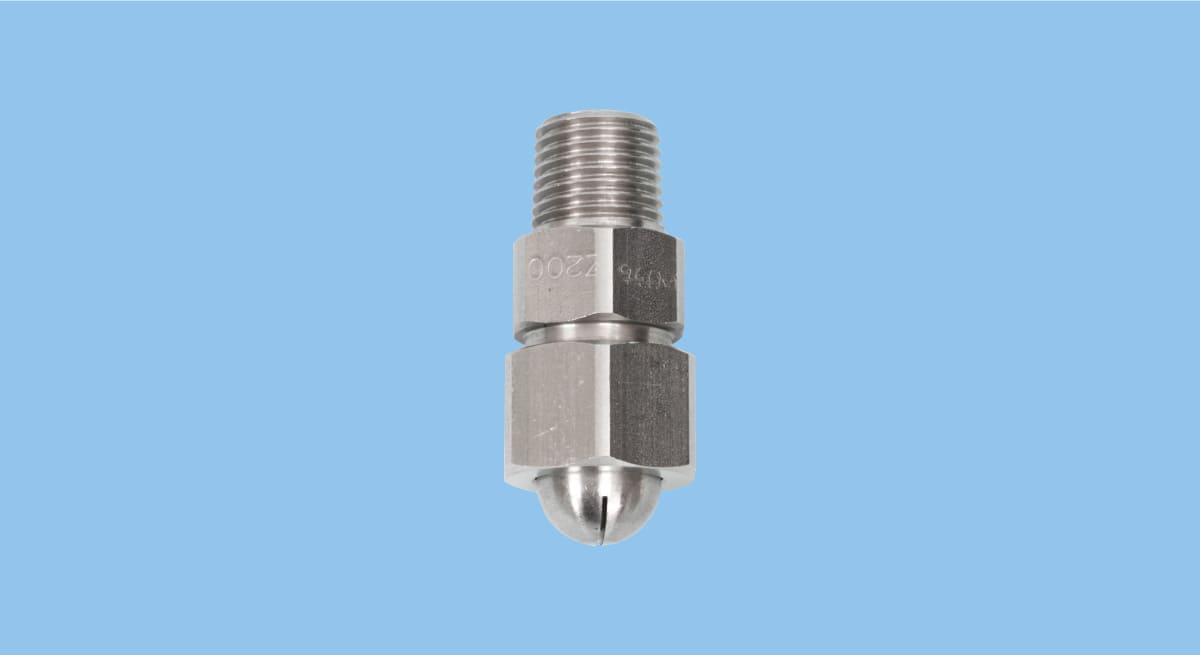

Flat Air Nozzles
VZ
These nozzles can be operated using steam, as well as compressed air.
Specs
| Air Inlet Thread Size | R1/4, 3/8 |
|---|---|
| Main Material | S303 |
| Air Supply | Compressed air, Steam |
| Max. Operating Pressure | 0.7 MPa |
| Noise Level | 84 dBA *1 |
| Air Consumption | 154–1,122 NL/min *2 |
| Spray Width at Specified Pressure | 55 mm *4 |
| Spray Thickness at Specified Pressure | 45 mm *5 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) 70–94 dBA at 0.3 MPa
*2) 154–1,122 L/min, Normal at 0.3 MPa
Resources for Download
• Wide-angle flat blow provides large coverage.
• Air flow volume can be adjusted by changing the nozzle tip.
• Three-piece nozzle can be disassembled for easy cleaning of orifice.
• Can be used for blowing either compressed air or steam.
Applications
- Cleaning, Dust suppression, Drying, Air curtain
- Humidification, Temperature control, Moisture control
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
