Full Cone Spray Nozzles
JJXP-PVDF

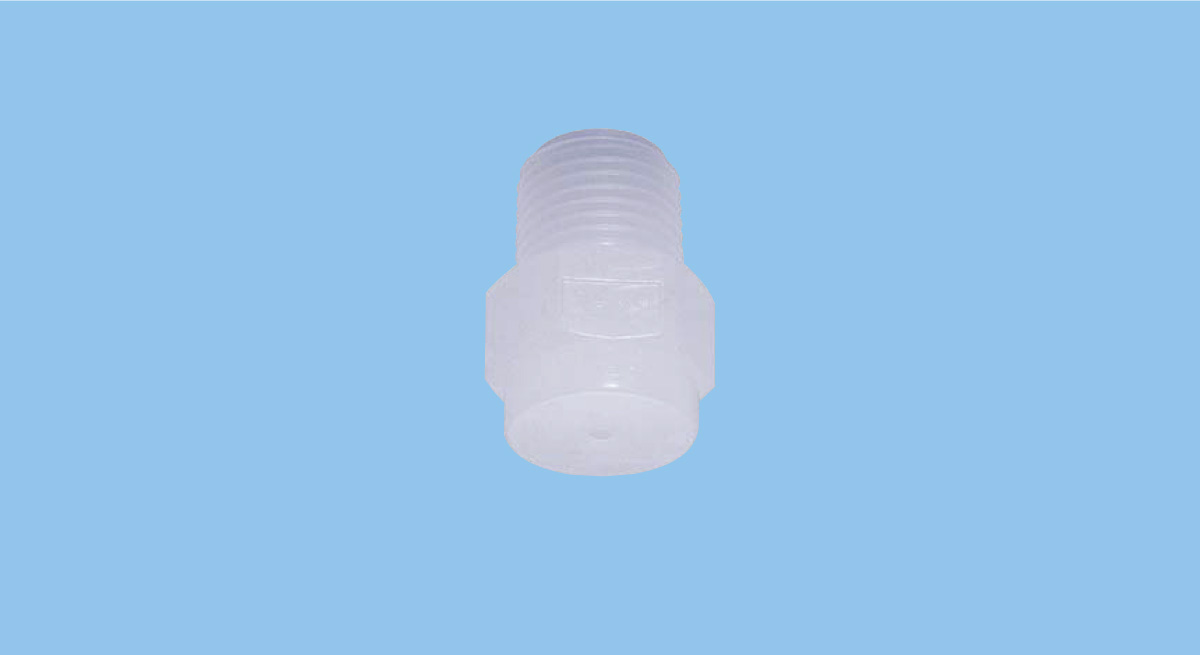

Hydraulic full cone spray nozzles with a round-shaped spray area and a uniform distribution, made of PVDF with excellent chemical resistance.
Specs
| Liquid Inlet Thread Size | R1/8, R1/4 |
|---|---|
| Main Material | PVDF |
| Standard Pressure | 0.2 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 1.00–3.00 L/min |
| Spray Angle at Standard Pressure | 65º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• Full cone spray pattern with a round impact area and uniform distribution.
• X-shaped whirler provides large free passage diameter, minimal clogging.
Applications
- Cleaning: Gas, incinerator fumes, machinery, eliminators, screen, tanks, parts, crushed stones, earth and sand, PCB, others
- Cooling: Gas, machineries, tanks, steels
- Spraying: Waste water treatment, aeration, foam breaking, fire extinguishing, dust suppression, sea water desalination, etching, chemical treatment
Industries where this nozzle is used
- Steelmaking
- Pollution control
- MachineryElectronics
- Paper & Pulp
- Food
Structure
- One-piece structure with a press-fitted X-shaped whirler.
