3D Rotational Tank Cleaning Nozzles

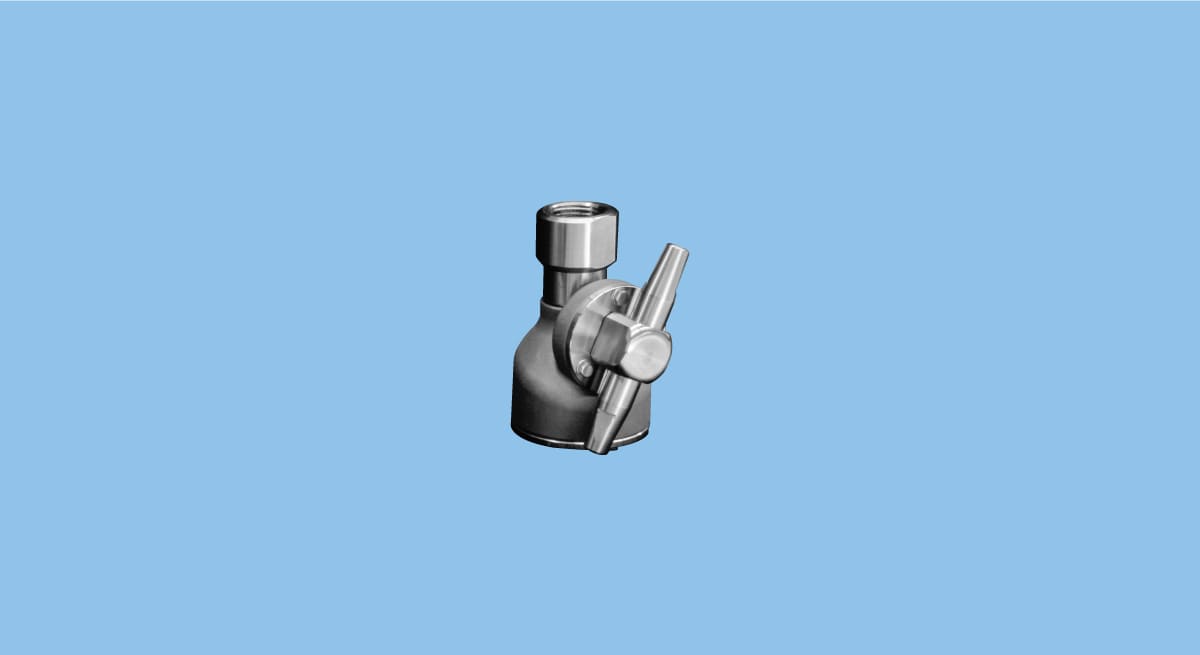

RJ (ROTARY JETTER)
ROTARY JETTER Series: tank cleaning nozzles with three-dimensional rotation capable of 360-degree cleaning.
They rotate solely by the force of the cleaning liquid, eliminating the need for external power, and can be used at relatively high temperatures.
Specs
| Liquid Inlet Thread Size | Rc1/2, Rc1, or Rc1*1/2 |
|---|---|
| Weight | 0.62–2.8kg |
| Main Material | S304 *1 |
| Max. Temperature | 80℃ *2 |
| Reach Distance of Spray | About 7–12m (RADIUS) |
| Operating Pressure for Liquid | 0.2–1.0 MPa *3 |
| Spray Capacity (Flow-rate) | 25.6–246 L/min *4 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) 1/2F&1F RJ: S304, SCS14, UPE, PTFE, PEEK; 1*1/2F RJ: S304, SCS13, UPE, PTFE, PEEK
*2) A heat-resistant type, suitable for use over 80°C, is also available as a custom-made option. Please contact us for more details.
*3) 1/2F RJ3-2L: 0.2–1.0 MPa, 1F RJ3-2L: 0.3–1.0 MPa, 1*1/2F RJ3-2L/4L: 0.3–0.8 MPa
*4) Spray flow rate in the above operating pressure range is for reference only. See the flow-rate diagram and chart for more details.
Nozzle mounting direction to tank:
The RJ Series can be installed downward or sideways within 90° of the vertical center.
The data in this catalog are the values from top of the tank installations.
Always Install Strainer: Tank Cleaning Nozzle Instructions
Resources for Download

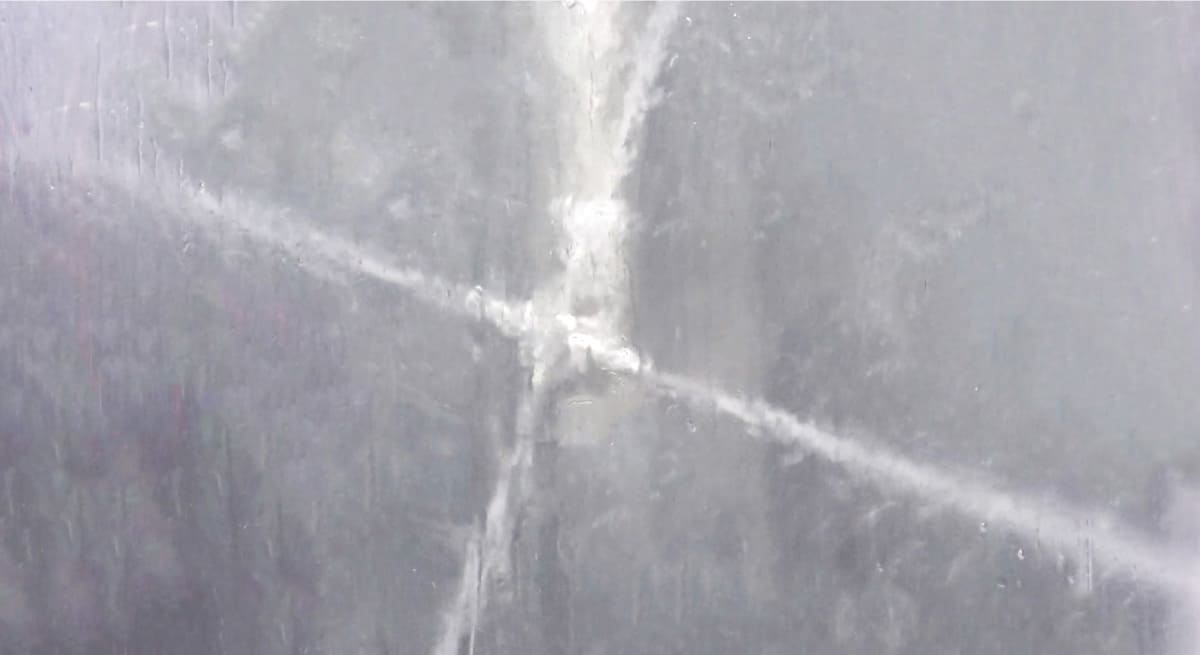

• Powerful 3D rotational solid stream nozzles cleaning the inside of tanks.
• No external power is needed as rotation is driven solely by the flow of the cleaning liquid.
• Compact design allows for easy installation even if the inlet is small.
• Insertion and removal is easy since the rotating nozzle is not locked into place.

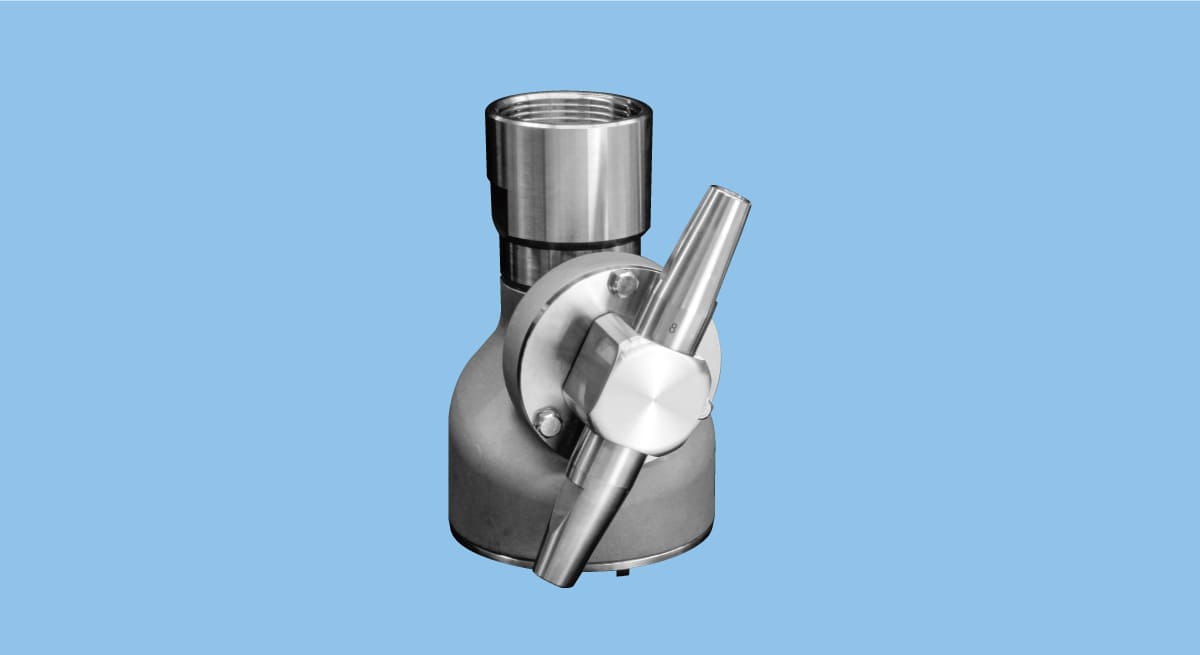

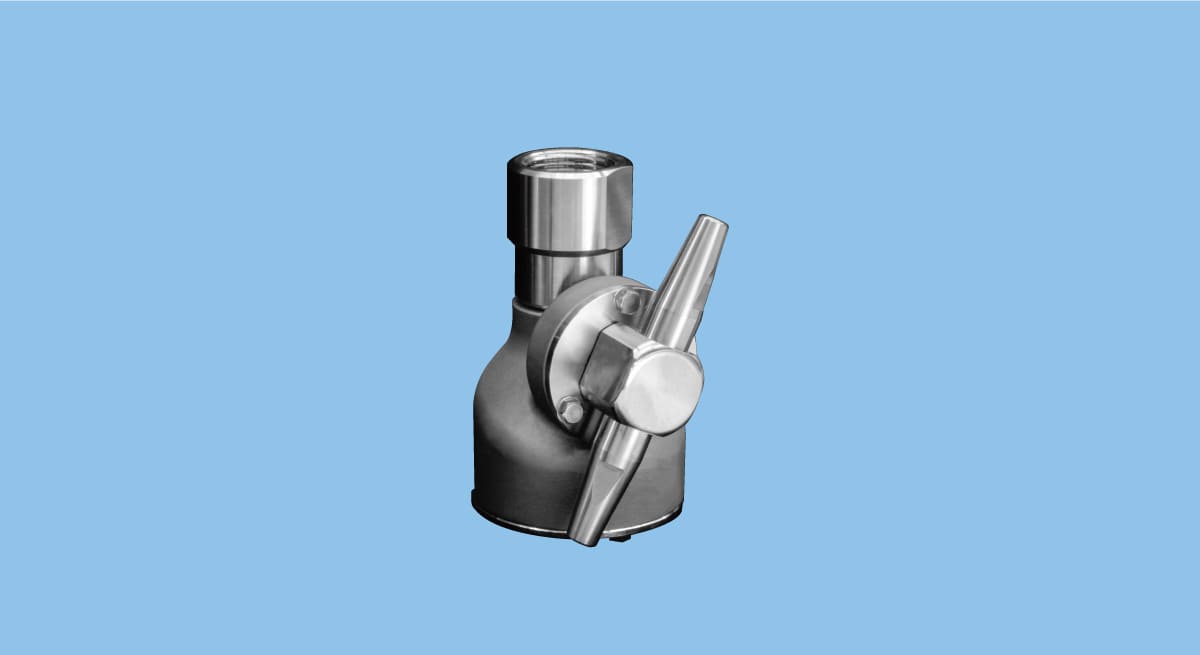

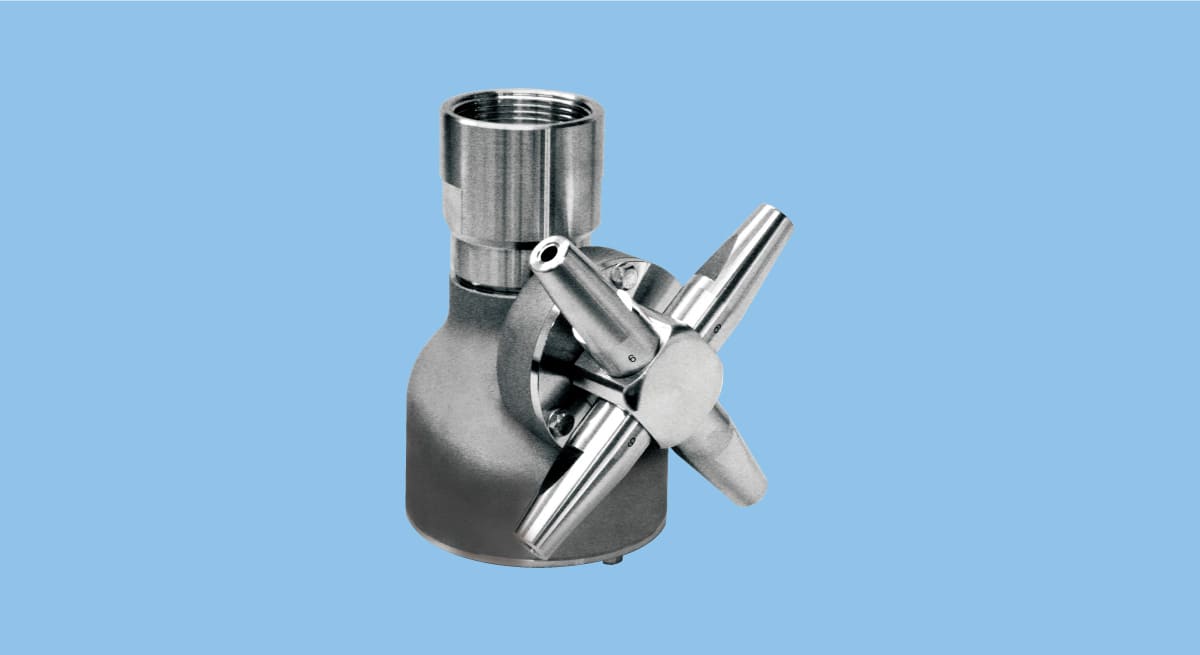

• The RJ3-2L is equipped with two nozzles, and the RJ3-4L with four nozzles.
• A customized option: The submerged type can be left in place during the normal operational use of the tank without affecting its performance during cleaning. For more details, please contact us.
Applications
- For cleaning hard-to-remove dirt:
- Removing tough, sticky and stubborn dirt
- Cleaning of food and beverage tanks
- Cleaning inside the chests (material tanks of paper making)
- Cleaning of reactor vessels in chemical plants
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
- Welfare
