Flat Air Nozzles
HF
Flat air nozzles capable of covering wider areas, featuring a disassemblable structure for cleaning the nozzle orifice.
Specs
| Air Inlet Thread Size | R1/4, R3/8 |
|---|---|
| Main Material | S303 |
| Air Supply | Compressed air |
| Max. Operating Pressure | 1.0 MPa |
| Max. Temperature | 400℃ |
| Noise Level | 78–84 dBA *1 |
| Air Consumption | 300–550 L/min, Normal at 0.3 MPa |
| Spray Width at Specified Pressure | 135 mm *2 |
| Spray Thickness at Specified Pressure | 90 mm *2 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Measured at 0.3 MPa, 1,000 mm distance. (Background noise: 46 dBA)
*2) HF14-010 measured at 0.3 MPa, 150 mm distance.
Resources for Download
• The compact, multi-orifice design achieves a flat blow with a large coverage area.

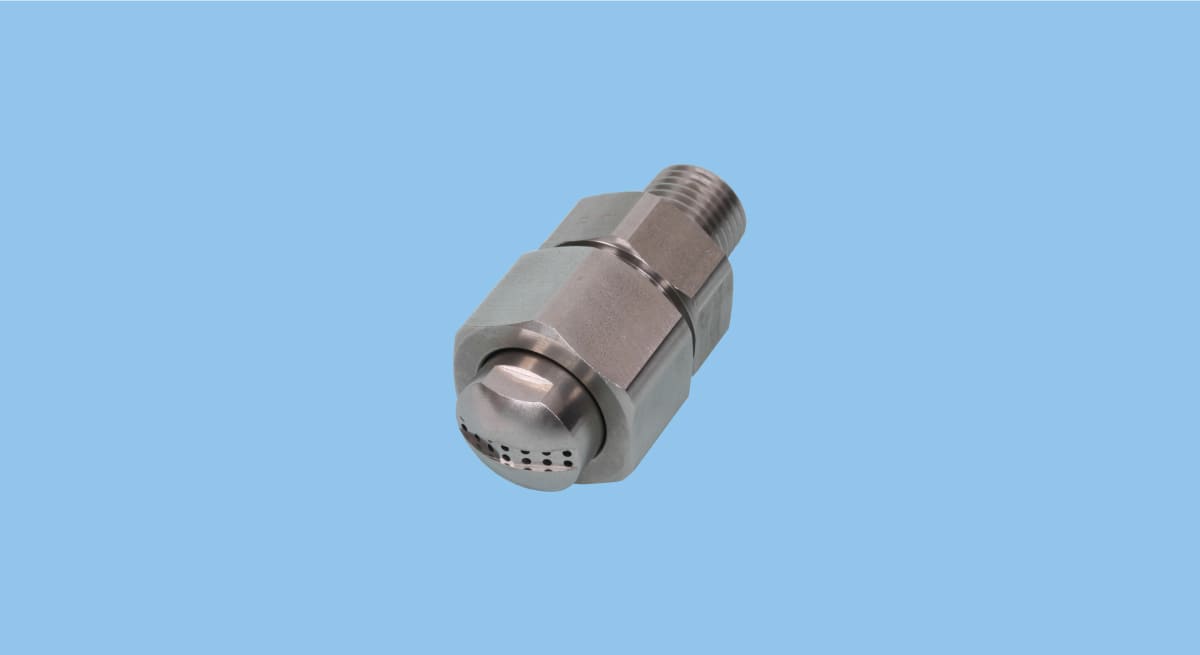

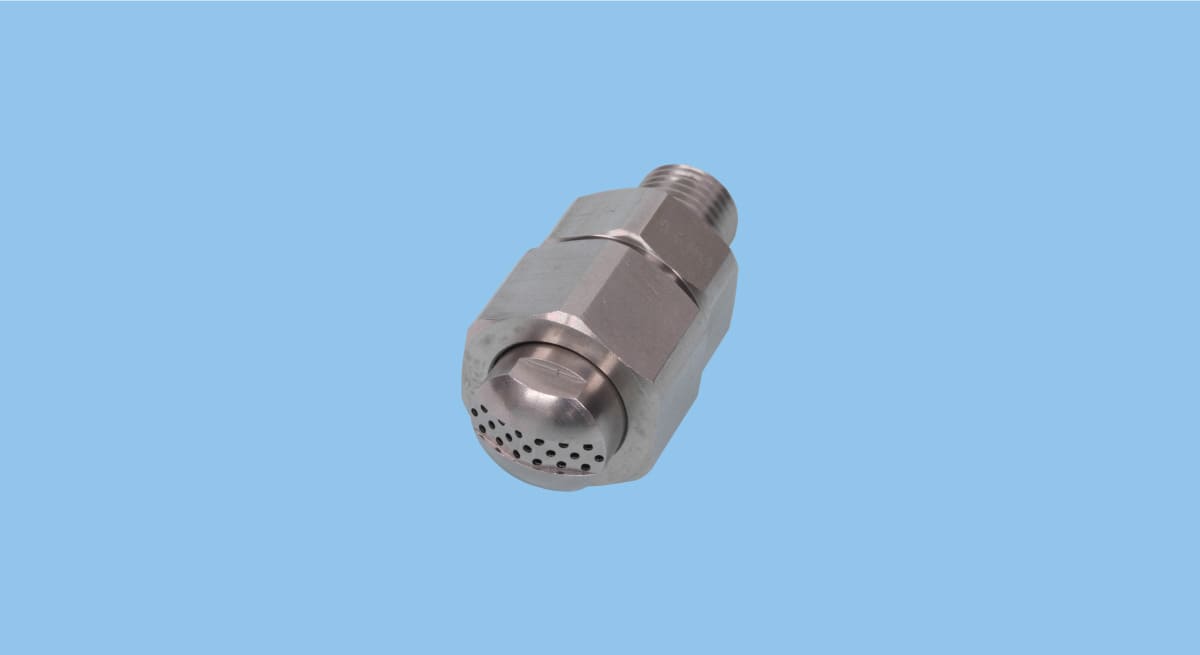

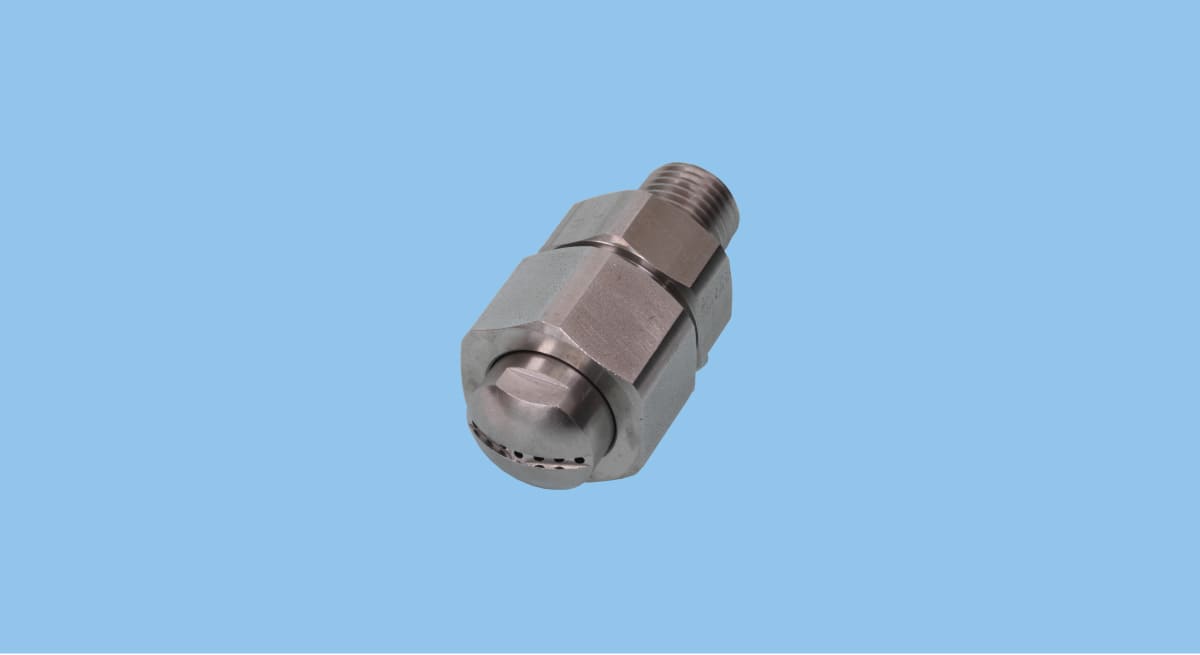

• Available in three models: HF 7-012 (having 7 orifices), HF 7-014 (14 orifices), and HF 19-012 (19 orifices).
• Low noise level. Noise level reduced by more than 10 dB (A) compared to a one-hole air nozzle.
• Nozzle can be disassembled into three parts for easy cleaning of the orifices.
Applications
- Blow-off drying: Blow-off for engine block
- Rejection: Rejection of inferior products
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
