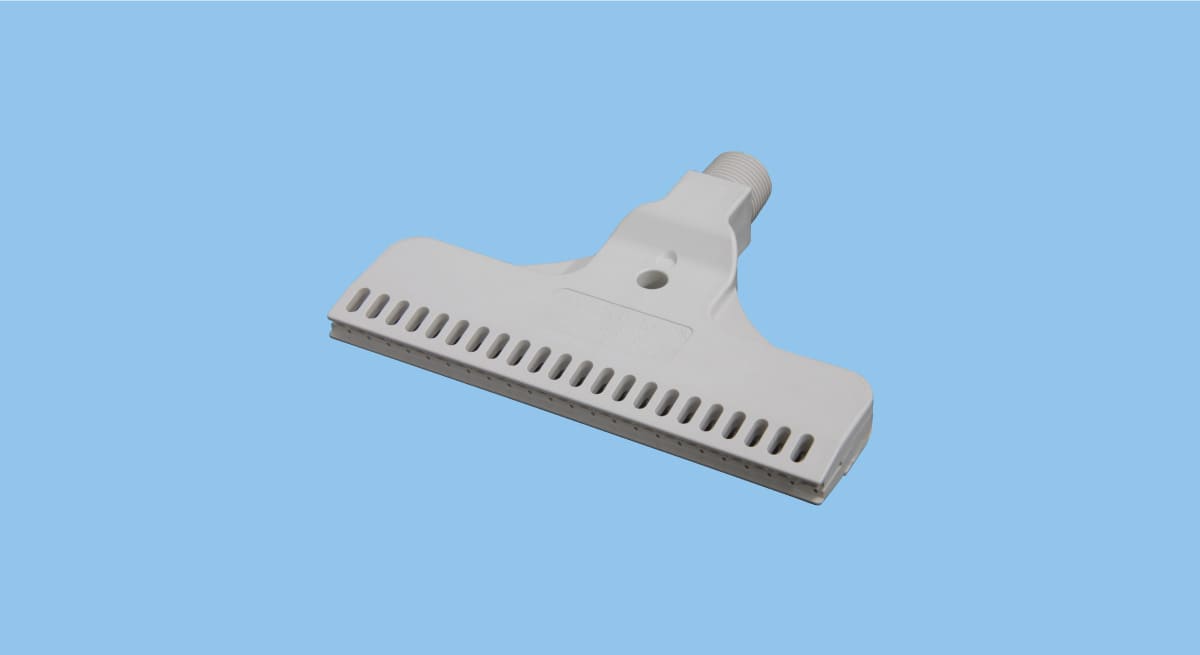

Flat Air Nozzle
TF-F121
TAIFUJet Series: air booster nozzles featuring a flat blow pattern and a uniform air flow distribution, measuring 121 mm in width.
Specs
| Air Inlet Thread Size | R3/8 |
|---|---|
| Main Material | PPS |
| Air Supply | Compressed air |
| Max. Operating Pressure | 0.7 MPa *1 |
| Max. Temperature | 80℃ *1 |
| Noise Level | 82 dBA *3 |
| Air Consumption | 1,250 NL/min *2 |
| Spray Width at Specified Pressure | 135 mm *4 |
| Spray Thickness at Specified Pressure | 50 mm *4 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Heat resistance varies with operating pressure, and max. operating pressure depends on temperature. See the catalog for details.
*2) 1,250 L/min, Normal at 0.3 MPa
*3) at 0.3 MPa, 1,000 mm distance
*4) at 0.3 MPa, 100 mm distance
Resources for Download
• Wide air nozzle (121 mm wide, 90 mm long) generates an effective flat blow through 46 orifices.
• The unique design creates a uniform and efficient air flow distribution.
• It produces a powerful, high impact air stream, while saving energy.
• Low noise level.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
- Blowing off dust/paint dust/debris, Blowing off inferior products (rejection of inferior products)
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
