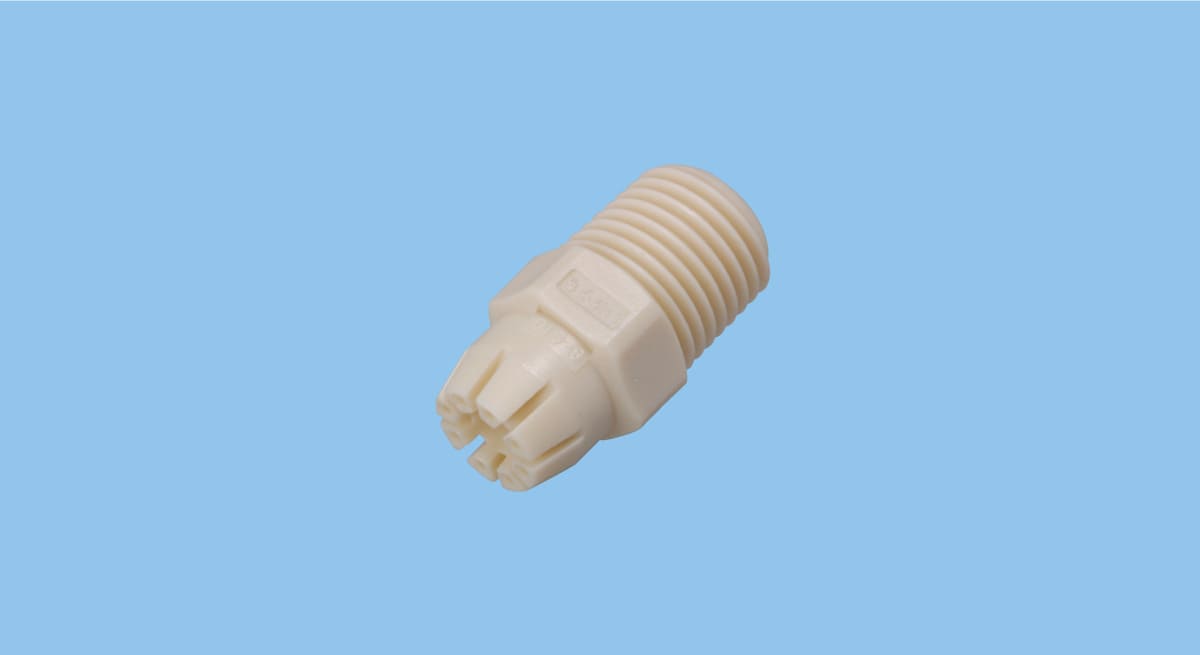

Round Air Nozzles
TF-R
TAIFUJet Series: air booster nozzles capable of spot blowing.
Click here for the metal version of the TF-R Series.
Specs
| Air Inlet Thread Size | R1/4 |
|---|---|
| Main Material | PP |
| Air Supply | Compressed air |
| Max. Operating Pressure | 0.7 MPa |
| Max. Temperature | 60℃ |
| Noise Level | 78 dBA *1 |
| Air Consumption | 245 L/min, Normal at 0.3 MPa |
| Spray Width at Specified Pressure | 35 mm *2 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Measured at 0.3 MPa, 1,000 mm distance. (Background noise: 46 dBA)
*2) Measured at 0.3 MPa, 100 mm distance.
Resources for Download
• High impact solid stream of air flown from eight holes.
• Compact design, lightweight.
• Quiet operation with noise level reduced by more than 10 dB (A) compared to conventional one-hole air nozzle.
Applications
- Blow-off drying: Blow-off drying for engine block
- Blowing off: Rejection of inferior products
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
