Large Capacity Full Cone Spray Nozzles
TJJX
Hydraulic full cone spray nozzles, designed for flange connection, providing a large spray capacity for applications such as gas cooling, reacting chemicals, and aeration.
Specs
| Main Material | S304, S316, SCS13, SCS14 |
|---|---|
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 1,850–2650 μm |
| Standard Pressure | 0.2 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 1,500–4,000 L/min |
| Spray Angle at Standard Pressure | 90–100º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

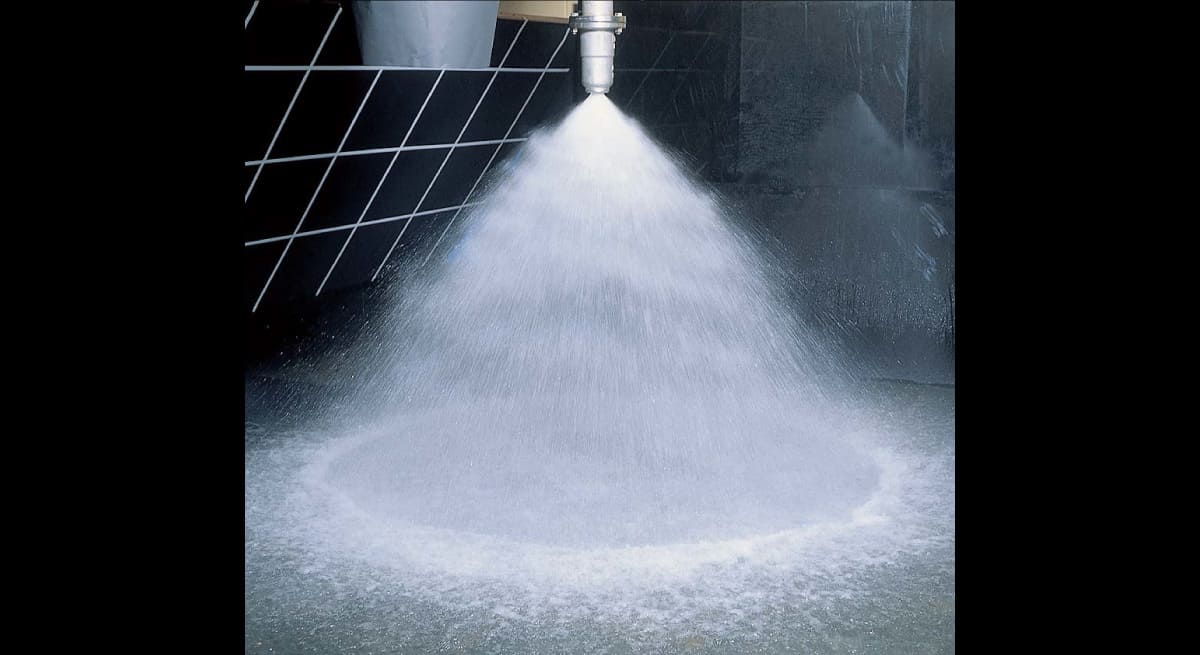

• Full cone spray pattern with a round impact area and uniform distribution.
• X-shaped whirler provides large free passage diameter, minimal clogging.
• Adopting newly developed X-shaped whirler has shortened total length by 20% compared to conventional nozzles.
Applications
- Cooling: Gas, liquids
- Reacting: Chemical plants
- Spraying: Aeration, sea water desalination
Industries where this nozzle is used
- Pollution control
Structure

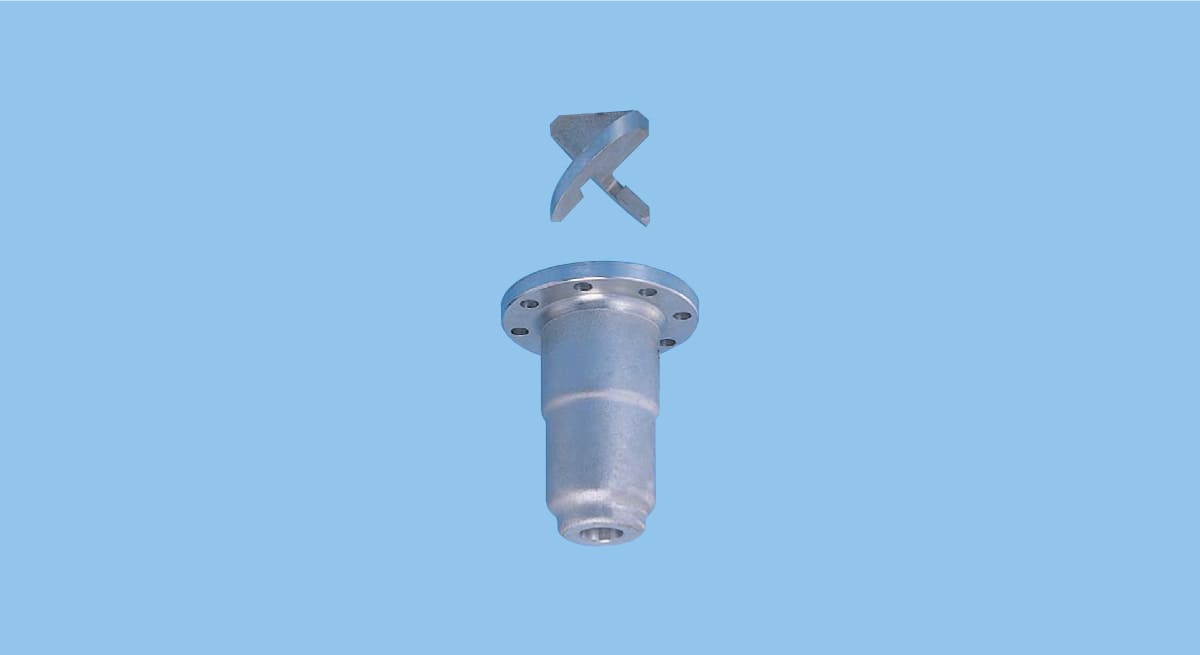

- One-piece structure with removable X-shaped whirler fixed to nozzle body by lock bolt.
- Flanged connection.
