Hydraulic Spray Nozzles
Hydraulic spray nozzles atomize and spray a liquid using a high-pressure pump. They are categorized into five types based on their spray patterns: flat, hollow cone, full cone, solid stream, and slit. Using a right nozzle brings various benefits in terms of water savings, energy or labor savings, and quality improvements. << Explore the digital catalog here. (The page will reload. To open in a new tab, press Ctrl+Click.) >>
-
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles
CP
Operating pressure:0.1-15 MPa
Spray capacity:2.47–104 L/min (3 MPa)
Free passage diameter:0.8–5.4 mm
Material:S303
-
- Precision Guarantee
- Solid Stream Spray Nozzles (Convex Round Inlet)
CCRP
Operating pressure:0.3-3 MPa
Spray capacity:0.52–8.26 L/min
Material:S303
-
- Ceramic Orifice
- Paper Trimming Nozzles
CM-FB
Operating pressure:0.5-5 MPa
Spray capacity:0.12–0.49 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Spray Control
- Solid Stream Spray Nozzles (with On-off Control)
SO-CM
Operating pressure:0.3-0.5 MPa
Spray capacity:0.08–0.75 L/min (0.3 MPa)
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Solid Stream Spray Nozzles (Two Orifices)
2CCP
Operating pressure:0.3-3 MPa
Spray capacity:1.68–3.42 L/min (1 MPa)
Spreading angle:10–25°
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Paper Trimming Nozzles (Two Orifices)
2CM-FB
Operating pressure:0.5-3 MPa
Spray capacity:0.24–0.67 L/min (1 MPa)
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles (Two Orifices)
2CP
Operating pressure:0.3-3 MPa
Spray capacity:0.86–3.42 L/min (1 MPa)
Spreading angle:10–25°
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Solid Stream Spray Nozzles (Seven Orifices)
7CCP
Operating pressure:0.3-3 MPa
Spray capacity:5.88–11.9 L/min (1 MPa)
Spreading angle:15°
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles (Seven Orifices)
7CP
Operating pressure:0.3-3 MPa
Spray capacity:3.01–11.9 L/min (1 MPa)
Spreading angle:15°
Material:S303
-
- Made-to-Order
- Detergent Foam Spray Nozzles (Solid Stream)
AWCC
Operating pressure:0.1-0.6 MPa
Spray capacity:1.00-5.00 L/min (0.3 MPa)
Material:S303
-
- Precision Guarantee
- Solid Stream Spray Nozzles
CCP
Operating pressure:0.1-3.5 MPa
Spray capacity:13.6–104 L/min (3 MPa)
Free passage diameter:2.0–5.4 mm
Material:S303
-
- Precision Guarantee
- Solid Stream Spray Nozzles (Convex Round Inlet)
CCRP
Operating pressure:0.3-3 MPa
Spray capacity:0.52–8.26 L/min
Material:S303
-
- Some Models are Made-to-Order
- Ceramic Orifice
- Paper Trimming Nozzles
CM
Operating pressure:0.5-5 MPa
Spray capacity:0.014–3.07 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Paper Trimming Nozzles
CM-FB
Operating pressure:0.5-5 MPa
Spray capacity:0.12–0.49 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Paper Trimming Nozzles
CMP-T
Operating pressure:0.5-5 MPa
Spray capacity:0.12–1.36 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles
CP
Operating pressure:0.1-15 MPa
Spray capacity:2.47–104 L/min (3 MPa)
Free passage diameter:0.8–5.4 mm
Material:S303
-
- Made-to-Order
- Ceramic Orifice
- Solid Stream Spray Nozzles (Small Orifice Diameters)
CP (Small Orifice Diameters)
Operating pressure:1-15 MPa
Spray capacity:0.020–1.27 L/min (1 MPa)
Material:S303
-
- Ceramic Orifice
- Solid Stream Spray Nozzles (Convex Round Inlet)
CRP
Operating pressure:0.3-3 MPa
Spray capacity:0.52–8.26 L/min
Material:S303
-
- Some Models are Made-to-Order
- Paper Trimming Nozzles
CTM
Operating pressure:0.5-5 MPa
Spray capacity:0.05–2.90 L/min (1 MPa)
Material:S303
-
- Precision Guarantee
- Self-cleaning
- Solid Stream Spray Nozzles (Self-cleaning)

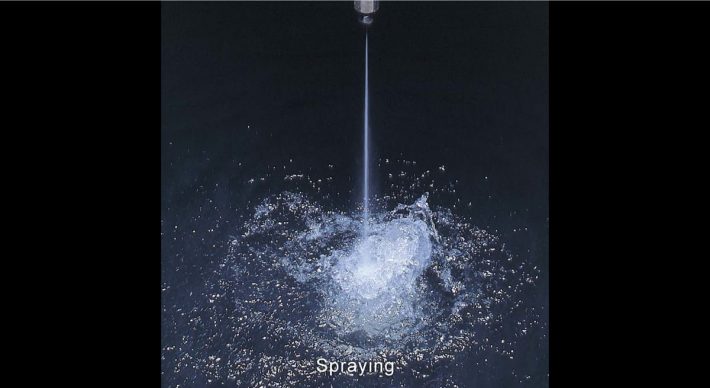

MOMOJet-C
Operating pressure:0.3-2 MPa
Spray capacity:1.00–6.50 L/min (1 MPa)
Material:S303
-
- Some Models are Made-to-Order
- Intermittent Pulse Spray
- Spray Control
- Pulse Spray Nozzles

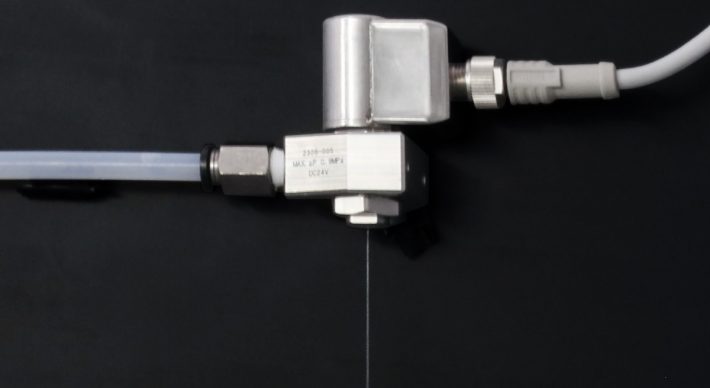

SD-CC
Operating pressure:0.05-0.9 MPa
Spray capacity:0.09–1.00 L/min (0.3 MPa)
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Spray Control
- Solid Stream Spray Nozzles (with On-off Control)
SO-CC
Operating pressure:0.1-1.0 MPa
Spray capacity:0.07–0.73 L/min (0.3 MPa)
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Spray Control
- Solid Stream Spray Nozzles (with On-off Control)

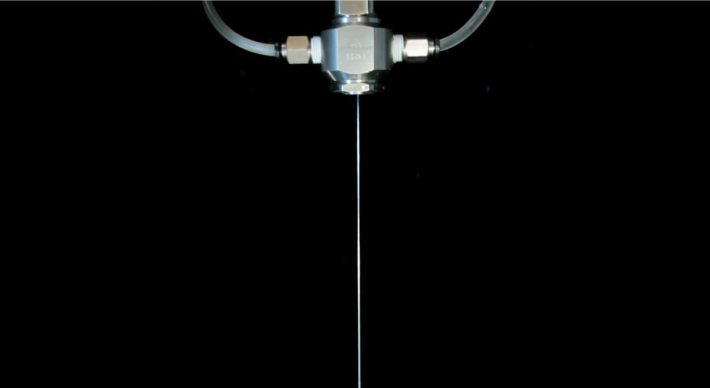

SO-CM
Operating pressure:0.3-0.5 MPa
Spray capacity:0.08–0.75 L/min (0.3 MPa)
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Solid Stream Spray Nozzles (with Universal Joint)

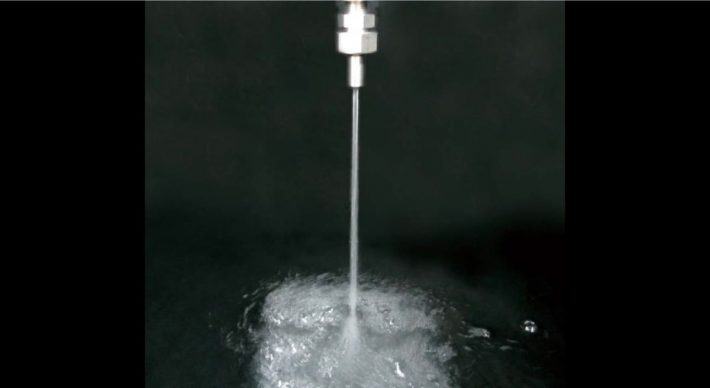

UT+CP
Operating pressure:0.1-2 MPa
Spray capacity:1.17–14.1 L/min (0.3 MPa)
Material:S303
