Hydraulic Spray Nozzles
Hydraulic spray nozzles atomize and spray a liquid using a high-pressure pump. They are categorized into five types based on their spray patterns: flat, hollow cone, full cone, solid stream, and slit. Using a right nozzle brings various benefits in terms of water savings, energy or labor savings, and quality improvements. << Explore the digital catalog here. (The page will reload. To open in a new tab, press Ctrl+Click.) >>
-
- Resources for Selecting the Right Products
- Technical Library
Case Studies
Explore real-world case studies and in-depth testimonials showcasing our solutions across various industries.
-
- Resources for Selecting the Right Products
- Technical Library
Technical Papers
Learn the fundamentals of our products and solutions through comprehensive analyses on diverse applications.
-
- Some Models are Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles

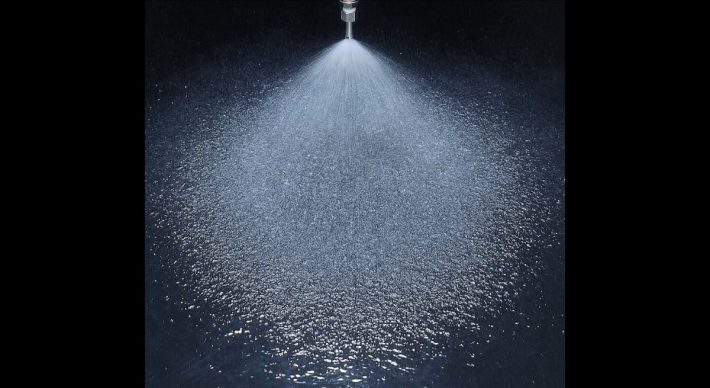

JJXP
Spray capacity:0.50–1200 L/min (0.2 MPa)
Spray angle:55–105º
Material:S303, S316
Free passage diameter:0.4–20.0 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP
Spray capacity:1.50–1200 L/min
Spray angle:120º
Material:S303, S316
Free passage diameter:0.7–21.7 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75º, 80º, 85º, 90º
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Precision Guarantee
- Quick-detachable
- Full Cone Spray Nozzles (Quick-detachable)
INJJX
Spray capacity:1.00–6.00 L/min
Spray angle:65º, 70º, 75º
Material:Nozzle tip: PP, Adaptor: PP or PPS
Free passage diameter:0.8–2.0 mm
-
- Made-to-Order
- Precision Guarantee
- Seven-head Full Cone Spray Nozzles
7JJXP
Spray capacity:7.00–315 L/min (0.2 MPa)
Spray angle:175–215º
Material:S303
Free passage diameter:0.8–4.7 mm
-
- Precision Guarantee
- Seven-head Full Cone Spray Nozzles
7KB
Spray capacity:0.23–10.9 L/min (0.7 MPa)
Spray angle:180º
Material:S303
Free passage diameter:0.15–0.60 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75º, 80º, 85º, 90º
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles (Alumina Ceramic)
AJP-AL92
Spray capacity:18.0–250 L/min (0.2 MPa)
Spray angle:85º, 90º
Material:92％ Alumina
Free passage diameter:5.1–21.3 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP-PPS
Spray capacity:4.00–16.0 L/min (0.2 MPa)
Spray angle:75–85º
Material:PPS
Free passage diameter:2.2–4.8 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP
Spray capacity:1.50–1200 L/min
Spray angle:120º
Material:S303, S316
Free passage diameter:0.7–21.7 mm
-
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP-PVC
Spray capacity:3.00 L/min (0.2 MPa)
Spray angle:120º
Material:PVC
Free passage diameter:1.5 mm
-
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP-PVDF
Spray capacity:0.8–2.0 L/min (0.2 MPa)
Spray angle:120º
Material:PVDF
Free passage diameter:0.5–1.2 mm
-
- Precision Guarantee
- Quick-detachable
- Full Cone Spray Nozzles (Quick-detachable)
INJJX
Spray capacity:1.00–6.00 L/min
Spray angle:65º, 70º, 75º
Material:Nozzle tip: PP, Adaptor: PP or PPS
Free passage diameter:0.8–2.0 mm
-
- Precision Guarantee
- Quick-detachable

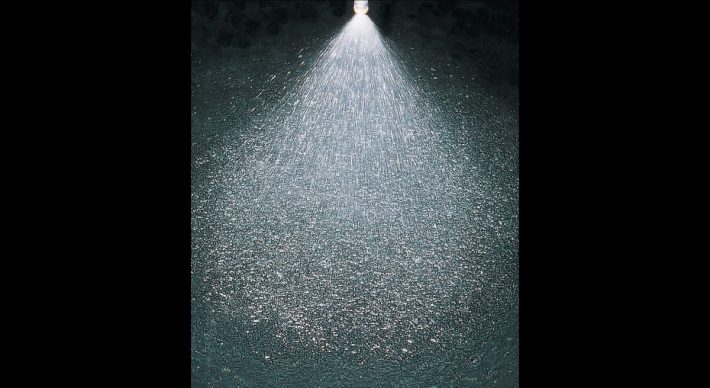

- Full Cone Spray Nozzles (Quick-detachable)
INJJX-SS
Spray capacity:1.00–6.00 L/min (0.2 MPa)
Spray angle:55º, 65º,70º, 75º
Material:S303
Free passage diameter:0.7–1.7 mm
-
- Precision Guarantee
- Quick-detachable
- Full Cone Spray Nozzles (Quick-detachable)

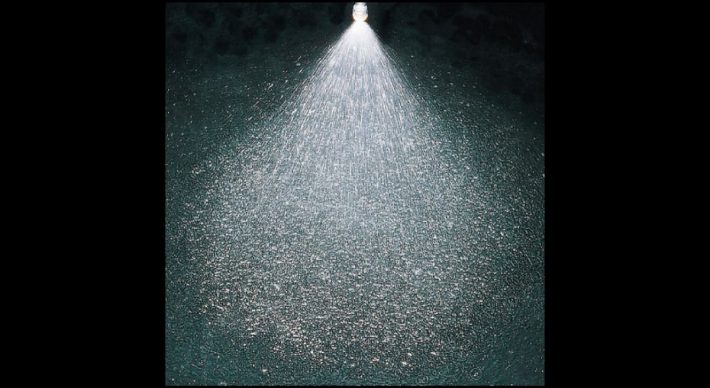

INJJX-Y
Spray capacity:1.00–5.00 L/min (0.2 MPa)
Spray angle:65º
Material:Nozzle tip: PP, Adaptor: PP or PPS
Free passage diameter:0.8–2.0 mm
-
- Ceramic Orifice
- Precision Guarantee

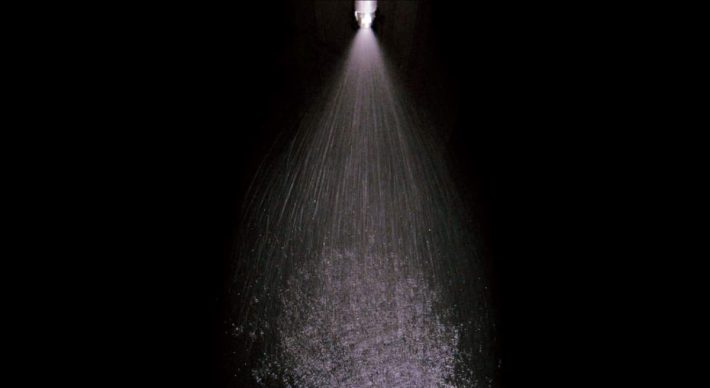

- Full Cone Spray Nozzles
J
Spray capacity:0.09–1.40 L/min
Spray angle:70º
Material:S303
Free passage diameter:0.15–0.9 mm
-
- Full Cone Spray Nozzles

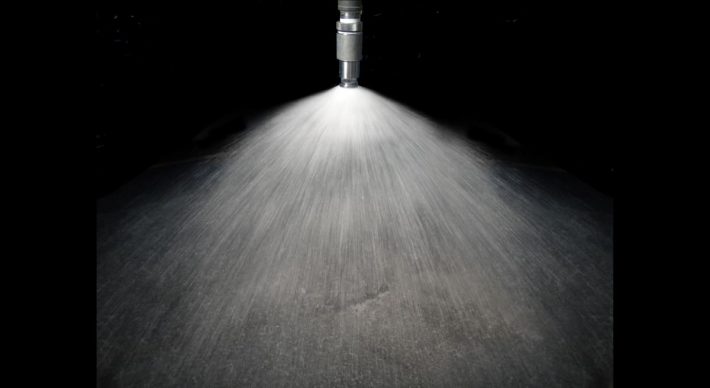

JJHP
Spray capacity:340–840 L/min (0.05 MPa)
Spray angle:75–105º
Material:S316L
Free passage diameter:10–15.5 mm
-
- Precision Guarantee
- Low Flow Rate Full Cone Spray Nozzles
JJRP-PTFE
Spray capacity:0.50–6.00 ℓ/min (0.2 MPa)
Spray angle:60–90º
Material:PTFE
Free passage diameter:0.4–1.6 mm
-
- Precision Guarantee
- Low Flow Rate Full Cone Spray Nozzles

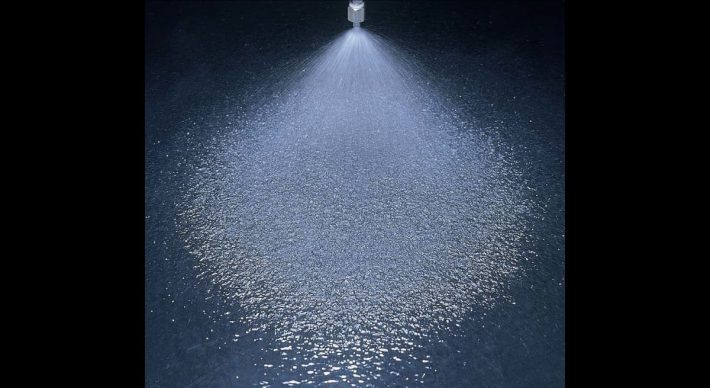

JJRP-PVDF
Spray capacity:0.50–0.70 L/min
Spray angle:60º, 65º
Material:PVDF
Free passage diameter:0.4–0.6 mm
-
- Made-to-Order

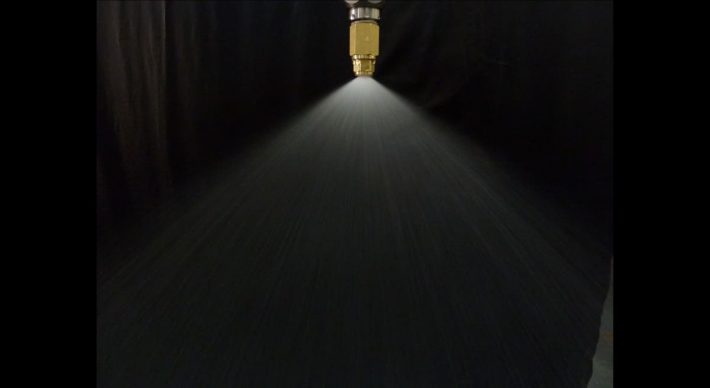

- Full Cone Spray Nozzles (Three-piece Structure)
JJX
Spray capacity:6.5–22.0 L/min (0.5 MPa)
Spray angle:67º, 90º, 110º
Material:B
-
- Some Models are Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP
Spray capacity:0.50–1200 L/min (0.2 MPa)
Spray angle:55–105º
Material:S303, S316
Free passage diameter:0.4–20.0 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP-HTPVC
Spray capacity:4.00–6.00 L/min (0.2 MPa)
Spray angle:65–75º
Material:HTPVC
Free passage diameter:2.1 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP-PVC
Spray capacity:2.00 L/min (0.2 MPa)
Spray angle:75º
Material:PVC
Free passage diameter:1.5 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP-PVDF
Spray capacity:1.00–3.00 L/min (0.2 MPa)
Spray angle:65º
Material:PVDF
Free passage diameter:0.8–1.5 mm
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Full Cone Spray Nozzles

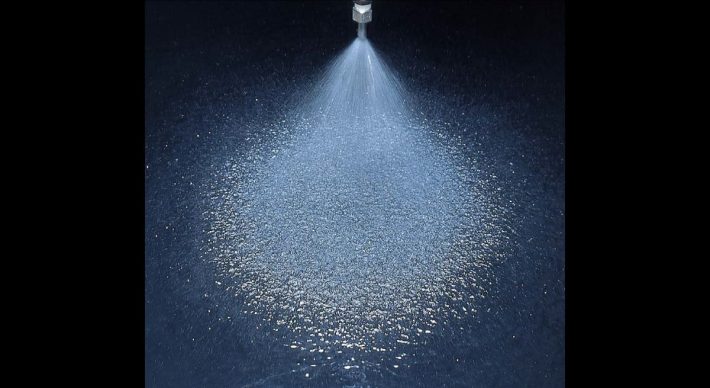

JUP
Spray capacity:3.00-90.0 L/min (0.2 MPa)
Spray angle:60-85º
Material:S303, S316
Free passage diameter:1.2-5.0 mm
-
- Made-to-Order
- Precision Guarantee

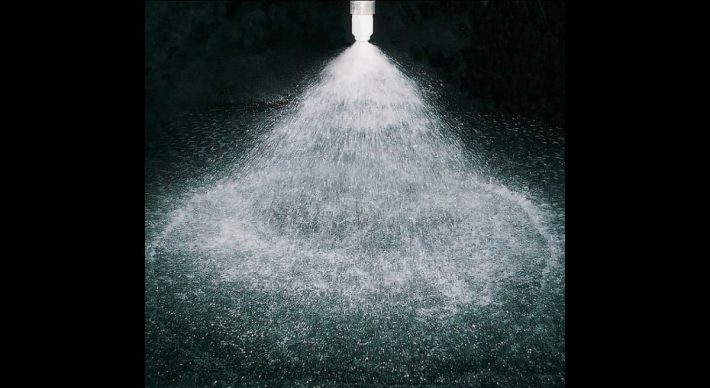

- Full Cone Spray Nozzles (Alumina Ceramic)
JUXP-AL92
Spray capacity:23.0–700 L/min (0.2 MPa)
Spray angle:75–100º
Material:92％ Alumina
Free passage diameter:4.7–17.8 mm
-
- Precision Guarantee
- Narrow-angle Full Cone Spray Nozzles

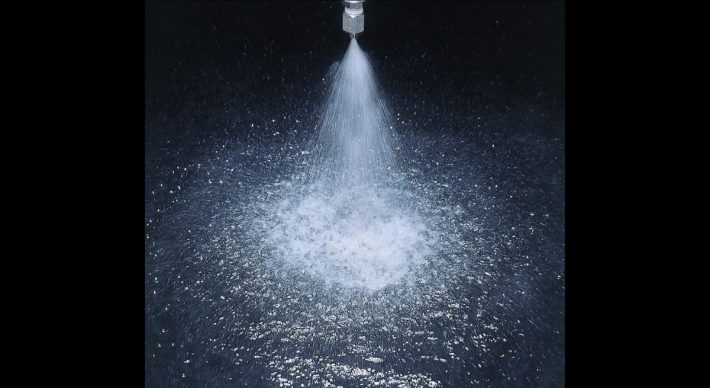

NJJP
Spray capacity:6.00–20.0 L/min (0.3 MPa)
Spray angle:15º, 30º
Material:S303
Free passage diameter:2.3–4.4 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Square Spray Nozzles
SSXP
Spray capacity:2.00–700 L/min (0.2 MPa)
Spray angle:90–100º
Material:S303
Free passage diameter:0.9–17.1 mm
-
- Precision Guarantee

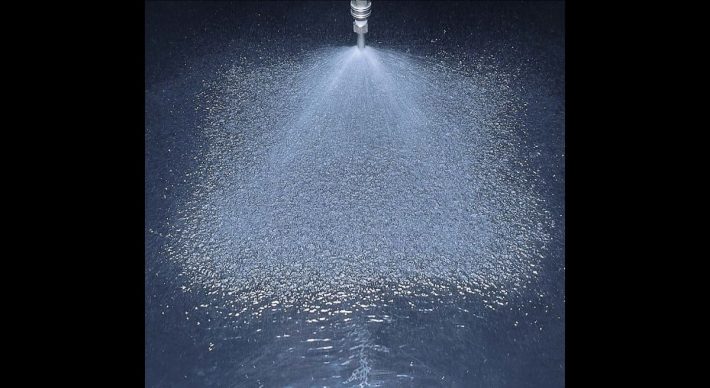

- Square Spray Nozzles
SSXP-HTPVC
Spray capacity:4.50 L/min (0.15 MPa)
Spray angle:65º
Material:HTPVC
Free passage diameter:2.2 mm
-
- Made-to-Order
- Precision Guarantee

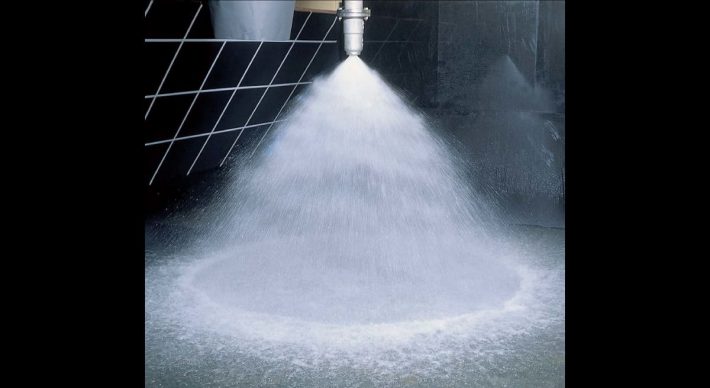

- Large Capacity Full Cone Spray Nozzles
TJJX
Spray capacity:1,500–4,000 L/min (0.2 MPa)
Spray angle:90–100º
Material:S304, S316, SCS13, SCS14
Free passage diameter:28–43 mm
-
- Made-to-Order
- Wide-angle Full Cone Spray Nozzles (Multi-orifice)

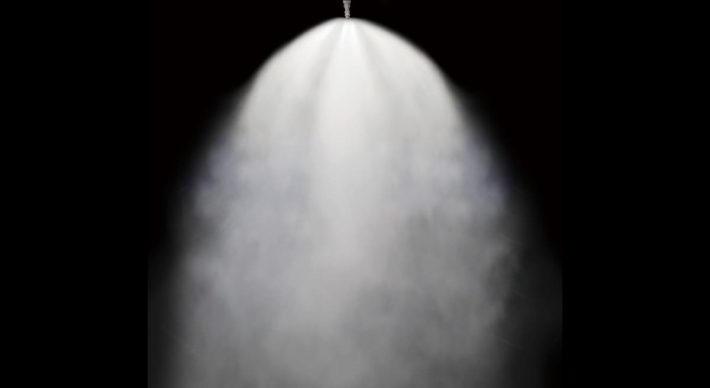

TSP
Spray capacity:15.0–60.1 L/min (5 MPa)
Material:S303
Free passage diameter:0.4–0.8 mm
-
- Full Cone Spray Nozzles

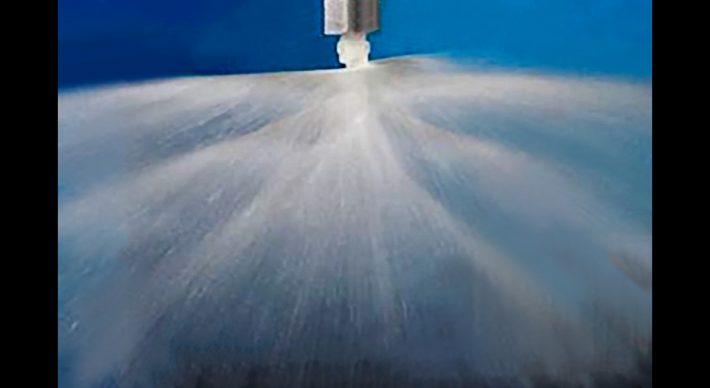

UZUJP
Spray capacity:75–220 L/min (0.1 MPa)
Spray angle:120º, 170º
Material:SCS16
Free passage diameter:4.3–7.3 mm
