Hydraulic Spray Nozzles
Hydraulic spray nozzles atomize and spray a liquid using a high-pressure pump. They are categorized into five types based on their spray patterns: flat, hollow cone, full cone, solid stream, and slit. Using a right nozzle brings various benefits in terms of water savings, energy or labor savings, and quality improvements. << Explore the digital catalog here. (The page will reload. To open in a new tab, press Ctrl+Click.) >>
-
- Some Models are Made-to-Order
- Precision Guarantee
- Flat Spray Nozzles
VVP
Operating pressure:0.05-2 MPa
Spray capacity:0.20–150 L/min (0.3 MPa)
Spray angle:15ﾟ, 25ﾟ, 40ﾟ, 50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303, PP, PVDF
-
- Ceramic Orifice
- Precision Guarantee
- Even Flat Spray Nozzles
VEP
Operating pressure:0.05-5 MPa
Spray capacity:0.30–46.9 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303, B, PVDF
-
- Precision Guarantee
- Wide-angle Flat Spray Nozzles
YYP
Operating pressure:0.03-0.2 MPa
Spray capacity:0.30–250 L/min (0.3 MPa)
Spray angle:100°, 115°, 120°, 130°, 135°, 140°
Material:S303, PVC
-
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)
INVV (Plastic)
Operating pressure:0.05-0.7 MPa
Spray capacity:0.50–5.00 L/min (0.3 MPa)
Spray angle:50°, 65°, 90°, 115°
Material:Nozzle tip: PP, Adaptor: PP or PPS
-
- Made-to-Order
- Detergent Foam Spray Nozzles (Flat Spray Pattern)
AWVV
Operating pressure:0.1-0.6 MPa
Spray capacity:1.00-5.00 L/min (0.3 MPa)
Spray angle:80°, 100°
Material:S303
-
- Made-to-Order
- Self-cleaning
- Spray Headers with Nozzle Cleaning Function
BRASIKan
Standard pressure:0.3 MPa
Free passage diameter:1.3–2.9 mm
Material:S303, S316L, TN
-
- Precision Guarantee
- Flat Spray Nozzles (Coin-shaped)
CVVP
Operating pressure:0.05-2 MPa
Spray capacity:1.00–8.00 L/min (0.3 MPa)
Spray angle:65°, 80°, 90°
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Ultra-Thick Even Flat Spray Nozzles
DDRP
Operating pressure:0.05-2 MPa
Spray capacity:5.00-100 L/min (0.3 MPa)
Spray angle:90°, 115°
Material:S303
-
- Some Models are Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Descaling Nozzles
DSP
Operating pressure:3-20 MPa
Spray capacity:5.59–86.5 L/min (5 MPa)
Spray angle:12°, 15°
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Even Flat Spray Nozzles
EJVV
Operating pressure:0.25-2 MPa
Spray capacity:2.00-12.0 L/min (0.3 MPa)
Spray angle:80°, 90°
Material:S303
-
- Precision Guarantee
- Quick-detachable
- Off-center Even Flat Spray Nozzles (Quick-detachable)

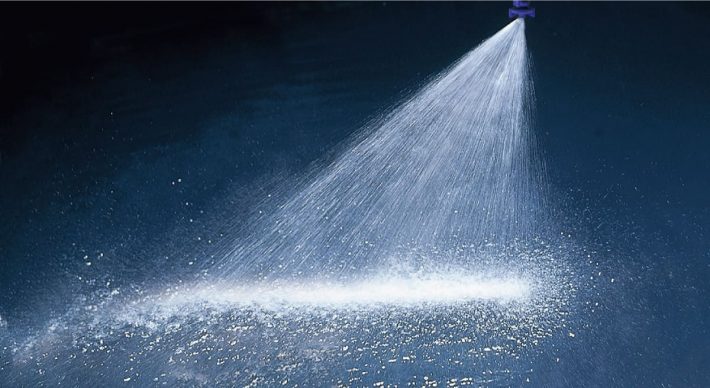

INOVVE
Operating pressure:0.15-0.7 MPa
Spray capacity:3.00-5.00 L/min (0.3 MPa)
Spray angle:45°
Material:Nozzle tip: PP, Adaptor: PP or PPS
-
- Precision Guarantee
- Quick-detachable
- Quick-installation Nozzles

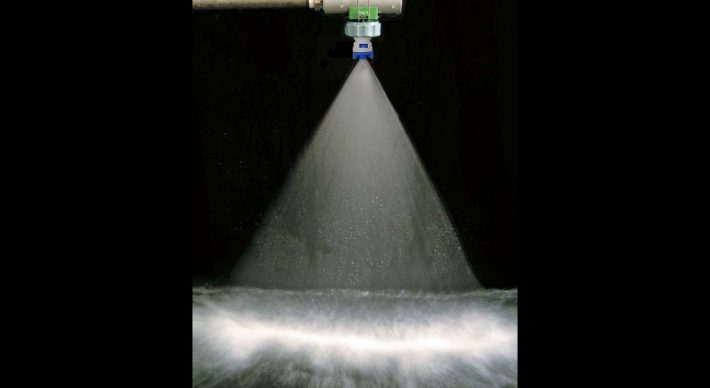

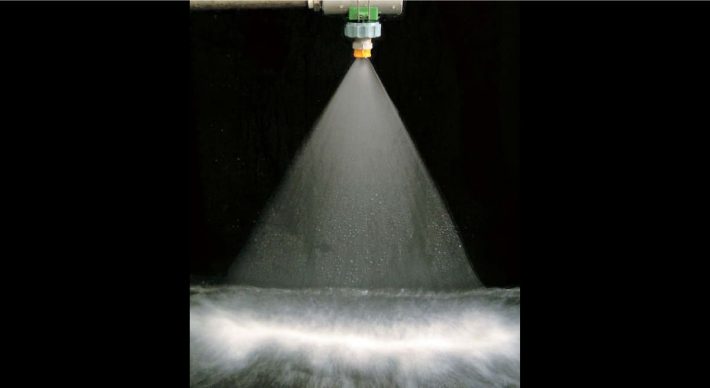

QB (INQB)
Operating pressure:0.1-0.4 MPa
Spray capacity:8.00–39.0 L/min(0.3 MPa)
Spray angle:40°, 65°, 80°
Material:FRPP, PP
-
- Ceramic Orifice
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)
INV
Operating pressure:0.05-2 MPa
Spray capacity:2.0–8.0 L/min (0.3 MPa)
Spray angle:50°, 65°, 80°, 90°, 115°
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Quick-detachable
- Even Flat Spray Nozzles (Quick-detachable)

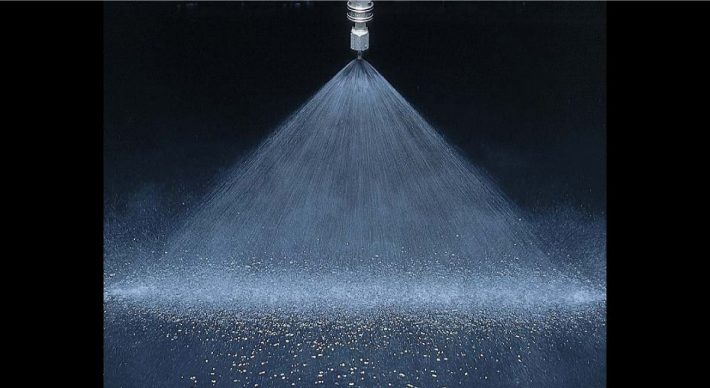

INVE
Operating pressure:0.05-2 MPa
Spray capacity:1.9–15.7 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303
-
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)
INVV (Plastic)
Operating pressure:0.05-0.7 MPa
Spray capacity:0.50–5.00 L/min (0.3 MPa)
Spray angle:50°, 65°, 90°, 115°
Material:Nozzle tip: PP, Adaptor: PP or PPS
-
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)

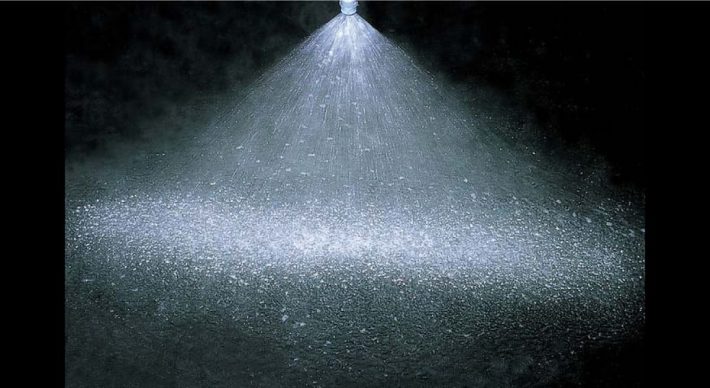

INVV-SS (Stainless Steel)
Operating pressure:0.05-2 MPa
Spray capacity:1.50–20.0 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303
-
- Precision Guarantee
- Quick-detachable
- Quick-installation Nozzles
ISQB
Operating pressure:0.1-0.4 MPa
Operating pressure:8.00–39.0 L/min(0.3 MPa)
Spray capacity:40°, 65°, 80°
Spray angle:FRPP
-
- Oil-free
- Precision Guarantee
- Wide-angle Flat Spray Nozzles (Ultra-low Pressure Type)

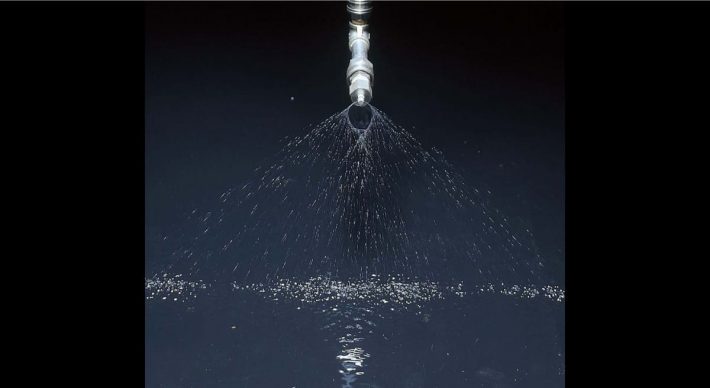

LYYP
Operating pressure:0.008-0.04 MPa
Operating pressure:0.20–1.00 L/min (0.3 MPa)
Spray capacity:70°, 80°, 90°, 100°, 110°, 120°
Spray angle:PVC
-
- Precision Guarantee
- Self-cleaning
- Flat Spray Nozzles (with Self-cleaning Function)

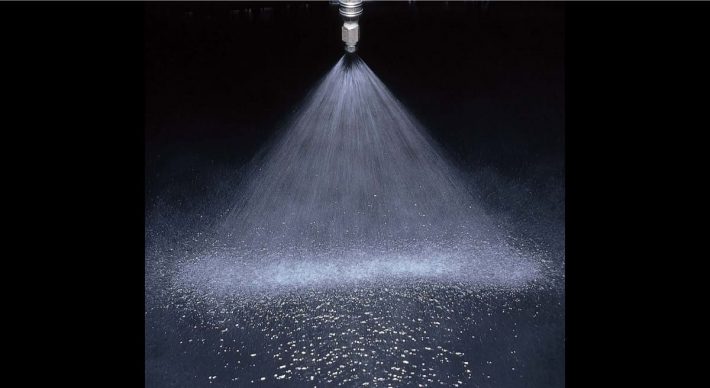

MOMOJet
Operating pressure:0.2-2 MPa
Operating pressure:2.00–6.00 L/min (0.3 MPa)
Spray capacity:80°
Spray angle:S303
-
- Precision Guarantee
- Off-center Even Flat Spray Nozzles

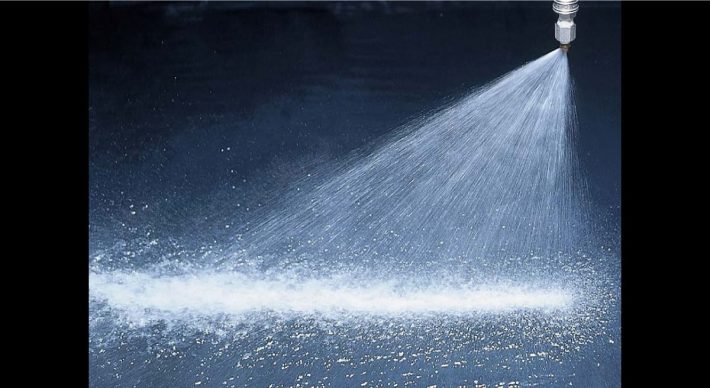

OVVEP
Operating pressure:0.05-2 MPa
Operating pressure:20.0-30.0 L/min (0.3 MPa)
Spray capacity:45°, 60°
Spray angle:S303
-
- Made-to-Order
- Ceramic Orifice
- Intermittent Pulse Spray
- Precision Guarantee
- Spray Control
- Pulse Spray Nozzles
SD-V
Operating pressure:0.1-0.9 MPa
Spray capacity:0.20–0.39 L/min (0.3 MPa)
Spray angle:49 - 114°
Material:S303
-
- Made-to-Order
- Intermittent Pulse Spray
- Precision Guarantee
- Spray Control
- Pulse Spray Nozzles

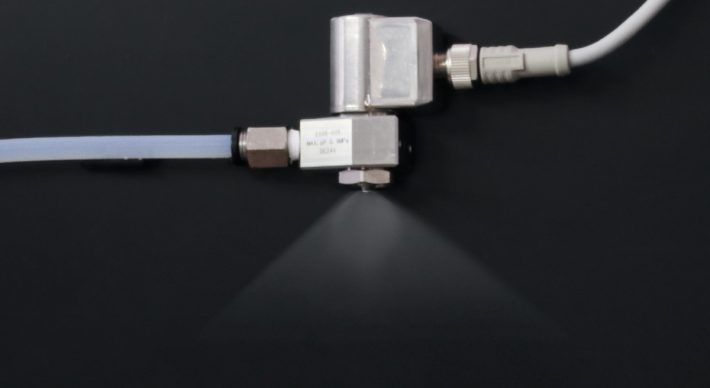

SD-VV
Operating pressure:0.05-0.9 MPa
Spray capacity:0.48–1.33 L/min (0.3 MPa)
Spray angle:13 - 114°
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Spray Control
- Flat Spray Nozzles (with On-off Control)

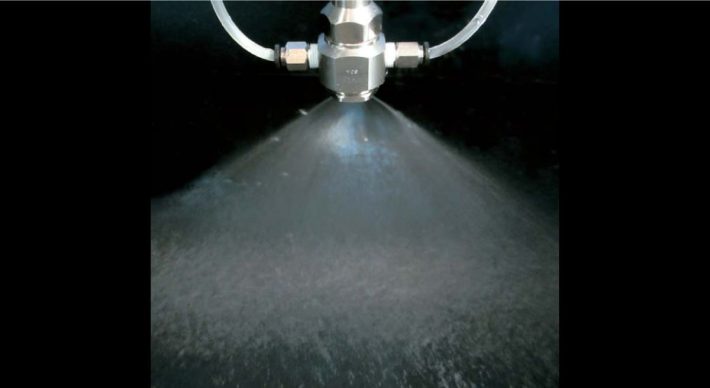

SO-V
Operating pressure:0.05-0.5 MPa
Spray capacity:0.20–2.00 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Spray Control
- Flat Spray Nozzles (with On-off Control)

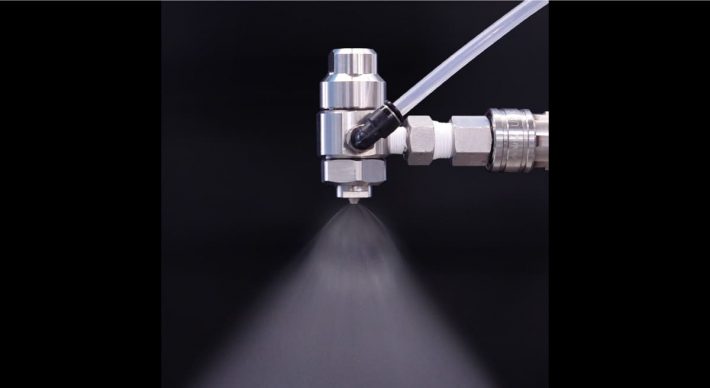

SO-VV
Operating pressure:0.1-1 MPa
Spray capacity:0.50–1.00 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Descaling Nozzles

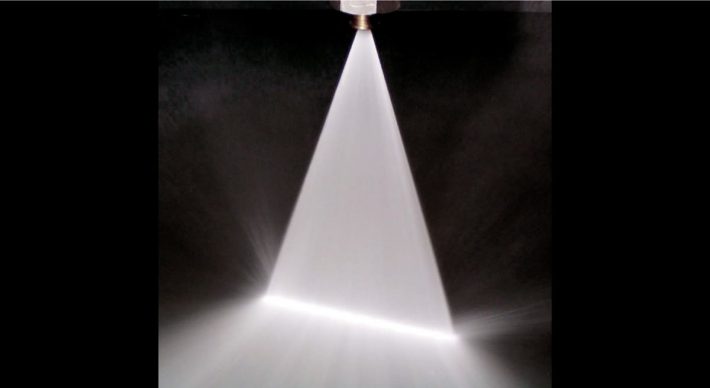

TDSS
Operating pressure:5-20 MPa
Spray capacity:15.0–138 L/min (15 MPa)
Spray angle:20°, 25°, 28°, 32°, 35°, 38°, 40°, 44°, 45°, 65°
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Flat Spray Nozzles (with Universal Joint)

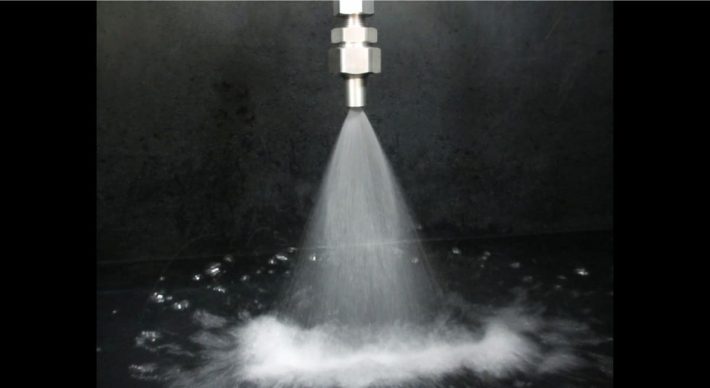

UT+VP
Operating pressure:0.05-2 MPa
Spray capacity:3.00–17.0 L/min (0.3 MPa)
Spray angle:50°, 65°, 80°
Material:S303
-
- Precision Guarantee
- Spray Nozzles for Spraying Abrasives

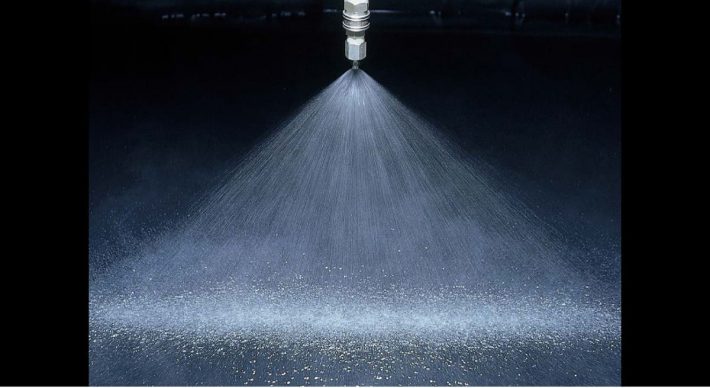

UVVP
Operating pressure:0.05-0.5 MPa
Spray capacity:4.00–5.00 L/min (0.3 MPa)
Spray angle:65°
Material:UPE
-
- Ceramic Orifice
- Precision Guarantee
- Flat Spray Nozzles (Three-piece Structure)

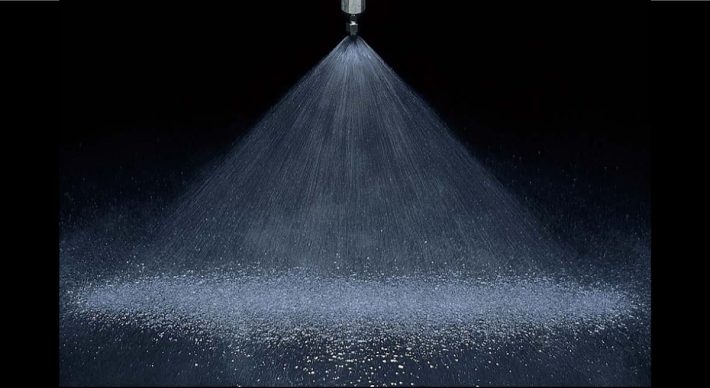

V
Operating pressure:0.05-2 MPa
Spray capacity:0.20–8.00 L/min (0.3 MPa)
Spray angle:50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Even Flat Spray Nozzles (Three-piece Structure)

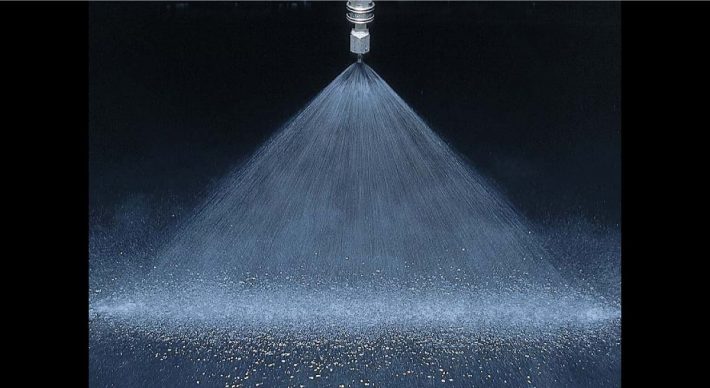

VE
Operating pressure:0.05-5 MPa
Spray capacity:0.30–46.9 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Even Flat Spray Nozzles
VEP
Operating pressure:0.05-5 MPa
Spray capacity:0.30–46.9 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303, B, PVDF
-
- Ceramic Orifice
- Precision Guarantee
- Spray Nozzles for High Pressure Cleaning

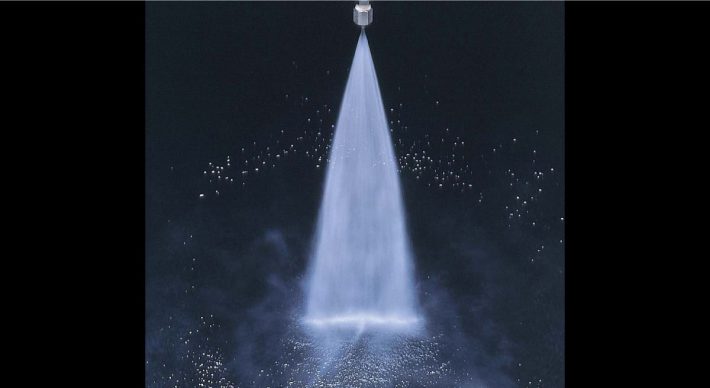

VNP
Operating pressure:1-15 MPa
Material:2.47–12.4 L/min (3 MPa)
Spray angle:15°, 25°, 30°, 40°, 65°
Material:S303, B
-
- Ceramic Orifice
- Precision Guarantee
- Flat Spray Nozzles

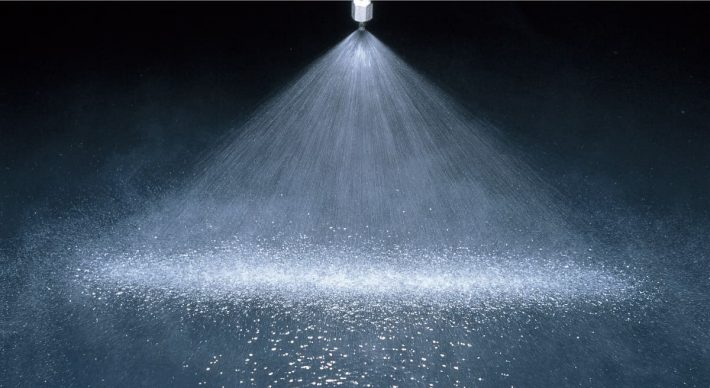

VP
Operating pressure:0.05-2 MPa
Spray capacity:0.20–8.00 L/min (0.3 MPa)
Spray angle:50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303, B, PVDF
-
- Made-to-Order
- Precision Guarantee
- Flat Spray Nozzles
VV
Operating pressure:0.05-2 MPa
Spray capacity:0.50–20.0 L/min (0.3 MPa)
Spray angle:15ﾟ, 25ﾟ, 40ﾟ, 50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Even Flat Spray Nozzles

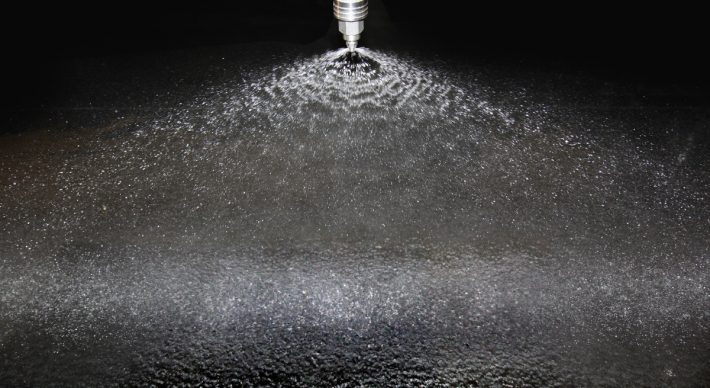

VVEP
Operating pressure:0.05-2 MPa
Spray capacity:4.00-400 L/min (0.3 MPa)
Spray angle:65°, 80°, 90°, 130°
Material:S303
-
- Precision Guarantee
- Even Flat Spray Nozzles (with High Turn-down Ratios)

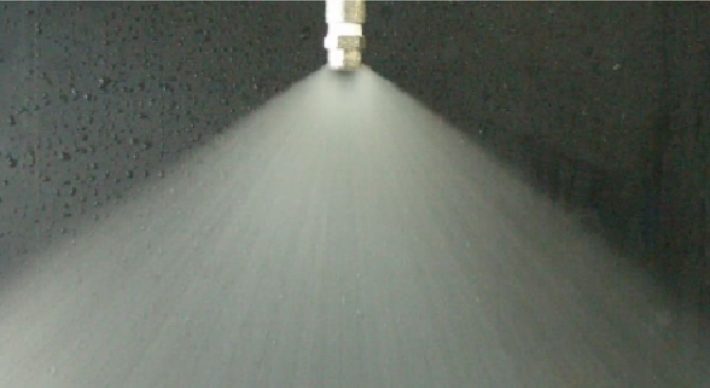

VVEP-HL
Operating pressure:0.02-0.7 MPa
Spray capacity:3.00-124 L/min (0.3 MPa)
Spray angle:100° (0.3 MPa)
Material:S303
-
- Some Models are Made-to-Order
- Precision Guarantee
- Flat Spray Nozzles
VVP
Operating pressure:0.05-2 MPa
Spray capacity:0.20–150 L/min (0.3 MPa)
Spray angle:15ﾟ, 25ﾟ, 40ﾟ, 50ﾟ, 65ﾟ, 80ﾟ, 90ﾟ, 115ﾟ
Material:S303, PP, PVDF
-
- Precision Guarantee
- Thick Even Flat Spray Nozzles

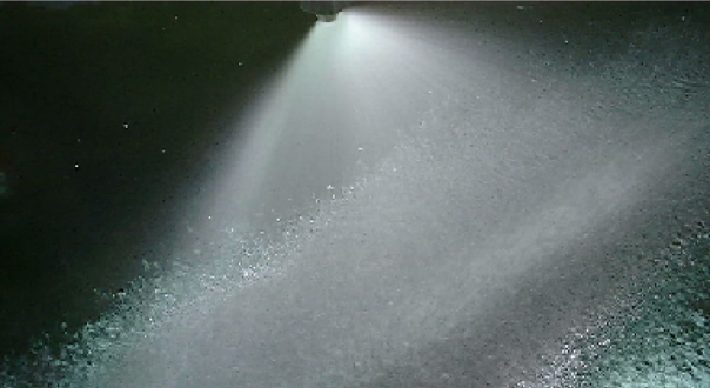

WVVEP
Operating pressure:0.05-2 MPa
Spray capacity:12-60 L/min (0.3 MPa)
Spray angle:65°, 90°
Material:S303
-
- Precision Guarantee
- Wide-angle Flat Spray Nozzles

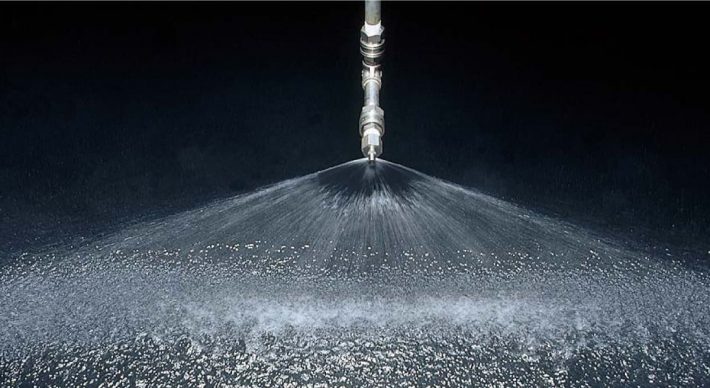

YYP
Operating pressure:0.03-0.2 MPa
Spray capacity:0.30–250 L/min (0.3 MPa)
Spray angle:100°, 115°, 120°, 130°, 135°, 140°
Material:S303, PVC
