NOx Removal, Desulfurization, and Gas Cooling

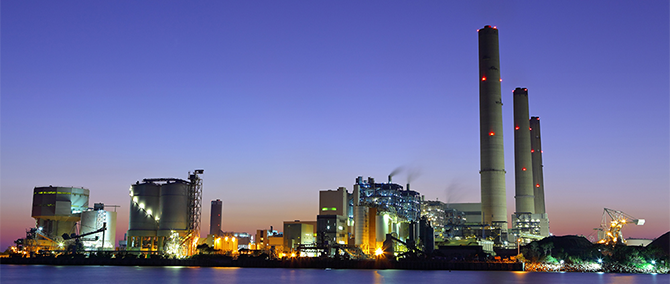

Spray nozzles are used for wet scrubbing applications and cooling high-temperature gas to remove hazardous substances such as NOx and SOx from flue gases. In a wet scrubber system, spraying water or alkaline solutions facilitates hazardous substances to be absorbed, captured together with the sprayed liquid, and subsequently treated for proper disposal.
-
- Precision Guarantee
- Hollow Cone Spray Nozzles
AAP
Spray capacity:1.00–23.0 L/min (0.2 MPa)
Spray angle:75–80º
Material:S304
Free passage diameter:2.0–8.0 mm
-
- Made-to-Order
- Precision Guarantee
- Spray Nozzles for Spraying Slurries
TAA
Spray capacity:200–1,200 L/min (0.07 MPa)
Spray angle:67–80º
Material:SiC
Free passage diameter:28–68 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP
Spray capacity:0.50–1200 L/min (0.2 MPa)
Spray angle:55–105º
Material:S303, S316
Free passage diameter:0.4–20.0 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75º, 80º, 85º, 90º
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Spray Control
- Fine Fog, Full Cone Spray Nozzles
BIMJ
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70º, 20º
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Seven-head Full Cone Spray Nozzles
7JJXP
Spray capacity:7.00–315 L/min (0.2 MPa)
Spray angle:175–215º
Material:S303
Free passage diameter:0.8–4.7 mm
-
- Precision Guarantee
- Seven-head Full Cone Spray Nozzles
7KB
Spray capacity:0.23–10.9 L/min (0.7 MPa)
Spray angle:180º
Material:S303
Free passage diameter:0.15–0.60 mm
-
- Precision Guarantee
- Hollow Cone Spray Nozzles
AAP
Spray capacity:1.00–23.0 L/min (0.2 MPa)
Spray angle:75–80º
Material:S304
Free passage diameter:2.0–8.0 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75º, 80º, 85º, 90º
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles (Alumina Ceramic)
AJP-AL92
Spray capacity:18.0–250 L/min (0.2 MPa)
Spray angle:85º, 90º
Material:92％ Alumina
Free passage diameter:5.1–21.3 mm
-
- Made-to-Order
- Impinging-type Fine Fog Nozzles
AKIJet
Mean droplet diameter:10–120 μm
Spray capacity:10–450 L/hr
Spray width:140–780 mm
Material:S303 equivalent, S303, SCS14, S316
-
- Made-to-Order
- Precision Guarantee
- Hollow Cone Spray Nozzles (Alumina Ceramic)
AP-AL92
Spray capacity:14.0–600 L/min (0.2 MPa)
Spray angle:80º, 85º
Material:92％ Alumina
Free passage diameter:6.8–39.6 mm
-
- Made-to-Order
- Clog Resistant
- Fine Fog, Flat Spray Nozzles (Large Capacity)
BAVV
Mean droplet diameter:30–100 μm
Spray capacity:9.0–123 L/hr
Spray angle:60º
Material:S303, S304
-
- Spray Control
- Fine Fog, Full Cone Spray Nozzles
BIMJ
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70º, 20º
Material:S303
-
- Clog Resistant
- Flat Spray Nozzles
DOVVA-G
Mean droplet diameter:80–120 μm
Spray capacity:1.0–50 L/min
Spray angle:55º, 70º
Material:S316L, S304
-
- Large Capacity Fine Fog Spray Nozzles (Large Spray Capacity)
GSIMⅡ
Mean droplet diameter:40–80 μm
Spray capacity:15–2,000 L/hr
Spray angle:20º, 60º
Material:S316L, S303
-
- Return-flow Nozzle
- Spillback Nozzles
GSPB
Supply pressure:1.0–4.0 MPa
Spray angle:90–130º
Material:Stainless steel (Nozzle tip: Tungsten carbide)
Free passage diameter:5.7 mm
-
- Ceramic Orifice
- Precision Guarantee
- Full Cone Spray Nozzles
J
Spray capacity:0.09–1.40 L/min
Spray angle:70º
Material:S303
Free passage diameter:0.15–0.9 mm
-
- Clog Resistant
- Full Cone Spray Nozzles
JJA
Mean droplet diameter:150–650 μm
Spray capacity:1.1–24.0 L/min
Material:S316L, S304
-
- Full Cone Spray Nozzles
JJHP
Spray capacity:340–840 L/min (0.05 MPa)
Spray angle:75–105º
Material:S316L
Free passage diameter:10–15.5 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP
Spray capacity:0.50–1200 L/min (0.2 MPa)
Spray angle:55–105º
Material:S303, S316
Free passage diameter:0.4–20.0 mm
-
- Steam
- Steam-driven Spray Nozzles
JOKIJet
Spray capacity:10–1,200 L/hr
Material:S316L, S304
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Full Cone Spray Nozzles
JUP
Spray capacity:3.00-90.0 L/min (0.2 MPa)
Spray angle:60-85º
Material:S303, S316
Free passage diameter:1.2-5.0 mm
-
- Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles (Alumina Ceramic)
JUXP-AL92
Spray capacity:23.0–700 L/min (0.2 MPa)
Spray angle:75–100º
Material:92％ Alumina
Free passage diameter:4.7–17.8 mm
-
- Full Cone Spray Nozzles (Blower Air Type)
LSIM
Mean droplet diameter:40–80 μm
Spray capacity:100–1,000 L/hr
Spray angle:20º
Material:S316L, S304
-
- Return-flow Nozzle
- Spillback Nozzles
SPB
Supply pressure:1.0–4.0 MPa
Spray angle:60°, 85°
Material:S316
Free passage diameter:1.3–3.0 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Square Spray Nozzles
SSXP
Spray capacity:2.00–700 L/min (0.2 MPa)
Spray angle:90–100º
Material:S303
Free passage diameter:0.9–17.1 mm
-
- Made-to-Order
- Precision Guarantee
- Spray Nozzles for Spraying Slurries
TAA
Spray capacity:200–1,200 L/min (0.07 MPa)
Spray angle:67–80º
Material:SiC
Free passage diameter:28–68 mm
-
- Made-to-Order
- Precision Guarantee
- Large Capacity Full Cone Spray Nozzles
TJJX
Spray capacity:1,500–4,000 L/min (0.2 MPa)
Spray angle:90–100º
Material:S304, S316, SCS13, SCS14
Free passage diameter:28–43 mm
-
- Made-to-Order
- Wide-angle Full Cone Spray Nozzles (Multi-orifice)
TSP
Spray capacity:15.0–60.1 L/min (5 MPa)
Material:S303
Free passage diameter:0.4–0.8 mm
-
- Made-to-Order
- Spray Nozzles for Spraying Slurries (Two-way)
TWAA
Spray capacity:200–1,200 L/min (0.07 MPa)
Spray angle:67–80º
Material:SiC
Free passage diameter:28–68 mm
-
- Full Cone Spray Nozzles
UZUJP
Spray capacity:75–220 L/min (0.1 MPa)
Spray angle:120º, 170º
Material:SCS16
Free passage diameter:4.3–7.3 mm
-
- CFD
- Gas Conditioning Tower
- Complete Evaporation
Flue Gas Cooling System
