Cooling Solids and Inlet Air

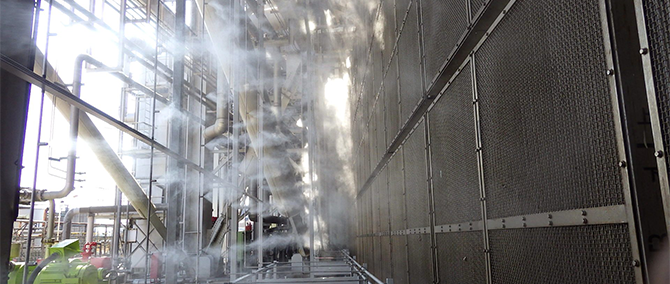

Spray nozzles are used for cooling solid metals and solid plastics, such as vehicle bodies emerging from a drying oven and ingots processed at high temperatures, as well as for inlet air cooling for gas turbines operating at thermal power plants.
-
- Some Models are Made-to-Order
- Precision Guarantee
- Flat Spray Nozzles
VVP
Operating pressure:0.05-2 MPa
Spray capacity:0.20–150 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303, PP, PVDF
-
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles
KB
Spray capacity:2.00–107 L/hr (0.7 MPa)
Mean droplet diameter:45–210 μm
Material:S303, B
Free passage diameter:0.15–0.60 mm
-
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles
KBN
Spray capacity:2.00–7.25 L/hr (0.3 MPa)
Mean droplet diameter:35–60 μm
Material:Polyamide
Free passage diameter:0.2–0.4 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP
Spray capacity:0.50–1200 L/min (0.2 MPa)
Spray angle:55–105º
Material:S303, S316
Free passage diameter:0.4–20.0 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP
Spray capacity:1.50–1200 L/min
Spray angle:120º
Material:S303, S316
Free passage diameter:0.7–21.7 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75º, 80º, 85º, 90º
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Spray Control
- Spray Gun Unit with BIM Nozzles
BIMV
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:45º, 80º, 110º
Material:S303
-
- Spray Control
- Fine Fog, Full Cone Spray Nozzles
BIMJ
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70º, 20º
Material:S303
-
- Clog Resistant
- High-viscosity Liquid Spray
- Full Cone Nozzles for Spraying Viscous Liquid
SETOJet
Mean droplet diameter:20–60 μm
Spray capacity:2.0–111 L/hr
Material:S303
-
- Compressor
- TAIFUJet
- Flat Air Nozzles
TF-FS42 (Metal)
Air consumption:280–630 NL/min (0.3 MPa)
Max. operating pressure:1.0 MPa
Noise level:73–82 dBA
Material:S316L equivalent
-
- Compressor
- TAIFUJet
- Round Air Nozzles
TF-R (Metal)
Air consumption:157–627 NL/min (0.3 MPa)
Max. operating pressure:1.0 MPa
Noise level:71–87 dBA (0.3 MPa)
Material:S316L equivalent
-
- Lengthening Repair Intervals for Refractories
Kiln Shell Cooling System
• Extends the service life of the kiln shell and its refractory bricks.
• Ensures long-term continuous and stable operation of the kiln.
• Stabilizes the internal coating.
• Controls the temperature of the kiln.
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75º, 80º, 85º, 90º
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles (Alumina Ceramic)
AJP-AL92
Spray capacity:18.0–250 L/min (0.2 MPa)
Spray angle:85º, 90º
Material:92％ Alumina
Free passage diameter:5.1–21.3 mm
-
- Made-to-Order
- Clog Resistant
- Fine Fog, Flat Spray Nozzles (Large Capacity)
BAVV
Mean droplet diameter:30–100 μm
Spray capacity:9.0–123 L/hr
Spray angle:60º
Material:S303, S304
-
- Some Models are Made-to-Order
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP
Spray capacity:1.50–1200 L/min
Spray angle:120º
Material:S303, S316
Free passage diameter:0.7–21.7 mm
-
- Spray Control
- Fine Fog, Full Cone Spray Nozzles
BIMJ
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70º, 20º
Material:S303
-
- Spray Control
- Fine Fog, Hollow Cone Spray Nozzles
BIMK
Mean droplet diameter:20-100 μm
Spray capacity:2.0–107 L/hr
Spray angle:60º
Material:S303
-
- Spray Control
- Suction
- Fine Fog, Hollow Cone Spray Nozzles (Suction Type)
BIMK-S
Mean droplet diameter:20-30 μm
Spray capacity:1.4–5.5 L/hr
Spray angle:60º
Material:S303
-
- Spray Control
- Spray Gun Unit with BIM Nozzles
BIMV
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:45º, 80º, 110º
Material:S303
-
- Spray Control
- Suction
- Fine Fog, Flat Spray Nozzles (Suction Type)
BIMV-S
Mean droplet diameter:20-30 μm
Spray capacity:0.5–5.5 L/hr
Spray angle:80º
Material:S303
-
- Spray Gun Unit with BIM Nozzles
BIM-GUN
-
- Compact
- Spray Control
- Fine Fog, Flat Spray Nozzles
CBIMJ
Mean droplet diameter:20-100 μm
Spray capacity:0.25–38.5 L/hr
Spray angle:20º
Material:S303
-
- Compact
- Spray Control
- Fine Fog, Hollow Cone Spray Nozzles
CBIMK
Mean droplet diameter:20-100 μm
Spray capacity:2.0–38.5 L/hr
Spray angle:60º
Material:S303
-
- Compact
- Spray Control
- Suction
- Fine Fog, Hollow Cone Spray Nozzles (Suction Type)
CBIMK-S
Mean droplet diameter:20-30 μm
Spray capacity:1.4–5.5 L/hr
Spray angle:60º
Material:S303
-
- Compact
- Spray Control
- Fine Fog, Flat Spray Nozzles
CBIMV
Mean droplet diameter:20-100 μm
Spray capacity:0.25–38.5 L/hr
Spray angle:45º, 80º, 110º
Material:S303
-
- Compact
- Spray Control
- Suction
- Fine Fog, Flat Spray Nozzles (Suction Type)
CBIMV-S
Mean droplet diameter:20-30 μm
Spray capacity:0.1–5.5 L/hr
Spray angle:80º
Material:S303
-
- Precision Guarantee
- Flat Spray Nozzles (Coin-shaped)
CVVP
Operating pressure:0.05-2 MPa
Spray capacity:1.00–8.00 L/min (0.3 MPa)
Spray angle:65º, 80º, 90º
Material:S303
-
- Made-to-Order
- Clog Resistant
- Ultra-thick Even Flat Spray Nozzles
DDA
Mean droplet diameter:15–200 μm
Spray capacity:0.14–57.3 L/min
Spray angle:75º, 80º, 100º, 110º, or 125º
Material:S303, S304
-
- Made-to-Order
- Precision Guarantee
- Ultra-Thick Even Flat Spray Nozzles
DDRP
Operating pressure:0.05-2 MPa
Spray capacity:5.00-100 L/min (0.3 MPa)
Spray angle:90º, 115º
Material:S303
-
- Thick Even Flat Spray Nozzles
DDRP+AS
Mean droplet diameter:430–488 μm
Spray capacity:19–24.7 L/min
Spray angle:90º, 115º
Material:S303, S304
-
- Clog Resistant
- Even Flat Spray Nozzles
DOVEA
Mean droplet diameter:50–200 μm
Spray capacity:0.42–40 L/min
Spray angle:55º, 70º, 95º, or 110º
Material:S303, S304
-
- Clog Resistant
- Flat Spray Nozzles
DOVVA-G
Mean droplet diameter:80–120 μm
Spray capacity:1.0–50 L/min
Spray angle:55º, 70º
Material:S316L, S304
-
- Some Models are Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Descaling Nozzles
DSP
Operating pressure:3-20 MPa
Spray capacity:5.59–86.5 L/min (5 MPa)
Spray angle:12º, 15º
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Even Flat Spray Nozzles
EJVV
Operating pressure:0.25-2 MPa
Spray capacity:2.00-12.0 L/min (0.3 MPa)
Spray angle:80º, 90º
Material:S303
-
- Large Capacity Fine Fog Spray Nozzles (Large Spray Capacity)
GSIMⅡ
Mean droplet diameter:40–80 μm
Spray capacity:15–2,000 L/hr
Spray angle:20º, 60º
Material:S316L, S303
-
- Downstream Fogging
- Upstream Fogging
- Wet Compression
- Recovering Diminished Power Output
GT Inlet Air Cooling System
• Recovers the diminished power output in summertime.
• The system is optionally available for upstream or downstream fogging, or wet compression.
• A simulation analysis or an evaporative experiment is available at optional costs.
-
- Precision Guarantee
- Quick-detachable
- Full Cone Spray Nozzles (Quick-detachable)
INJJX-SS
Spray capacity:1.00–6.00 L/min (0.2 MPa)
Spray angle:55º, 65º,70º, 75º
Material:S303
Free passage diameter:0.7–1.7 mm
-
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)
INVV-SS (Stainless Steel)
Operating pressure:0.05-2 MPa
Spray capacity:1.50–20.0 L/min (0.3 MPa)
Spray angle:15º, 25º, 40º, 50º, 65º, 80º, 90º, 115º
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Full Cone Spray Nozzles
J
Spray capacity:0.09–1.40 L/min
Spray angle:70º
Material:S303
Free passage diameter:0.15–0.9 mm
-
- Clog Resistant
- Full Cone Spray Nozzles
JJA
Mean droplet diameter:150–650 μm
Spray capacity:1.1–24.0 L/min
Material:S316L, S304
-
- Made-to-Order
- Full Cone Spray Nozzles (Three-piece Structure)
JJX
Spray capacity:6.5–22.0 L/min (0.5 MPa)
Spray angle:67º, 90º, 110º
Material:B
-
- Some Models are Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP
Spray capacity:0.50–1200 L/min (0.2 MPa)
Spray angle:55–105º
Material:S303, S316
Free passage diameter:0.4–20.0 mm
-
- Steam
- Steam-driven Spray Nozzles
JOKIJet
Spray capacity:10–1,200 L/hr
Material:S316L, S304
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Full Cone Spray Nozzles
JUP
Spray capacity:3.00-90.0 L/min (0.2 MPa)
Spray angle:60-85º
Material:S303, S316
Free passage diameter:1.2-5.0 mm
-
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles (Three-piece Structure)
K
Spray capacity:0.06-1.80 L/min (0.3 MPa)
Mean droplet diameter:80-380 μm
Material:S303
Free passage diameter:0.4-1.7 mm
-
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles
KB
Spray capacity:2.00–107 L/hr (0.7 MPa)
Mean droplet diameter:45–210 μm
Material:S303, B
Free passage diameter:0.15–0.60 mm
-
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles
KBN
Spray capacity:2.00–7.25 L/hr (0.3 MPa)
Mean droplet diameter:35–60 μm
Material:Polyamide
Free passage diameter:0.2–0.4 mm
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles (Three-piece Structure)
KD
Spray capacity:0.30–3.94 L/min (0.3 MPa)
Spray angle:70–97º
Material:S303
Free passage diameter:0.7–1.8 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Hollow Cone Spray Nozzles
KKBP
Spray capacity:0.50–2.00 L/min (0.3 MPa)
Spray angle:53–68º
Material:S303
Free passage diameter:1.0–1.8 mm
