Steelmaking

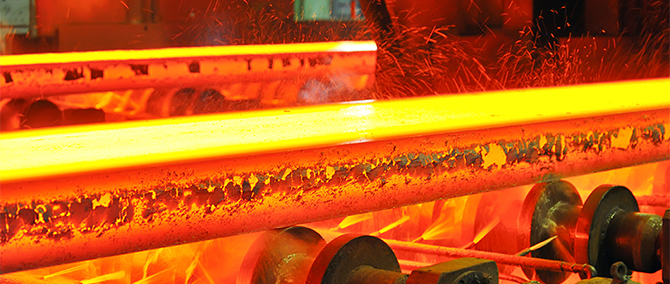

Spray nozzles are utilized in steel mills and smelters for cooling during continuous casting and gas cooling, along with a wide range of other applications, including descaling, cleaning, surface treatment, and dust control.
-
- Some Models are Made-to-Order
- Precision Guarantee
- Flat Spray Nozzles
VVP
Operating pressure:0.05-2 MPa
Spray capacity:0.20–150 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303, PP, PVDF
-
- Precision Guarantee
- Wide-angle Flat Spray Nozzles
YYP
Operating pressure:0.03-0.2 MPa
Spray capacity:0.30–250 L/min (0.3 MPa)
Spray angle:100º, 115º, 120º, 130º, 135º, 140º
Material:S303, PVC
-
- Some Models are Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles
JJXP
Spray capacity:0.50–1200 L/min (0.2 MPa)
Spray angle:55–105º
Material:S303, S316
Free passage diameter:0.4–20.0 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP
Spray capacity:1.50–1200 L/min
Spray angle:120º
Material:S303, S316
Free passage diameter:0.7–21.7 mm
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75º, 80º, 85º, 90º
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Spray Control
- Spray Gun Unit with BIM Nozzles
BIMV
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:45º, 80º, 110º
Material:S303
-
- Spray Control
- Fine Fog, Full Cone Spray Nozzles
BIMJ
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70º, 20º
Material:S303
-
- Clog Resistant
- High-viscosity Liquid Spray
- Full Cone Nozzles for Spraying Viscous Liquid
SETOJet
Mean droplet diameter:20–60 μm
Spray capacity:2.0–111 L/hr
Material:S303
-
- Compact
- High Spray Impact
- Flat Spray Nozzles
VVEA
Mean droplet diameter:20–400 μm
Spray capacity:0.23–3.0 L/min
Spray angle: 60º, 80º
Material:S303
-
- Compressor
- TAIFUJet
- Flat Air Nozzles
TF-FS42 (Metal)
Air consumption:110–630 NL/min (0.3 MPa)
Max. operating pressure:1.0 MPa
Noise level:60–82 dBA (0.3 MPa)
Material:S316L equivalent
-
- Compressor
- TAIFUJet
- Round Air Nozzles
TF-R (Metal)
Air consumption:157–627 NL/min (0.3 MPa)
Max. operating pressure:1.0 MPa
Noise level:71–87 dBA (0.3 MPa)
Material:S316L equivalent
-
- Compressor
- TAIFUJet
- Long, Flat Air Nozzles
TF-PF
Air consumption:1,150–15,100 NL/min (0.3 MPa)
Max. operating pressure:1.0 MPa
Noise level:84 dBA or more (0.3 MPa)
Material:S304
-
- Blower
- Slit Nozzles for Air Blowing
SLNB
Air consumption:970–5,730 NL/min (5 kPa)
Slit length:400–1,200 mm (250–1,950 mm)
Slit opening:0.5 or 1.0 mm
Material:S304
-
- Lengthening Repair Intervals for Refractories
Kiln Shell Cooling System
• Extends the service life of the kiln shell and its refractory bricks.
• Ensures long-term continuous and stable operation of the kiln.
• Stabilizes the internal coating.
• Controls the temperature of the kiln.
-
- Dry Fog
- Pneumatic Humidification
- Dry Fog Humidifier
AKIMist "E"
Humidification method:Pneumatic humidification
Operating pressure:0.2–0.5 MPa
Humidification capacity:1.3–4.5 L/hr (per nozzle)
Air consumption:22–54 NL/min (per nozzle)
-
- Dry Fog
- Pneumatic Humidification
- With Caster Wheels
- Portable Dry Fog Humidifier Set
AE-T Set
Humidification method:Pneumatic humidification
Operating pressure:0.2–0.5 MPa
Humidification capacity:1.3–14.4 L/hr (03C)
Air consumption:22–172 NL/min (03C)
-
- Dry Fog
- Pneumatic Humidification
- Industrial Humidification System
AirAKI
Humidification method:Pneumatic humidification
Operating pressure:0.2–0.5 MPa
Humidification capacity:1.3–4.5 L/hr (per nozzle)
Air consumption:22–54 NL/min (per nozzle)
-
- Hydraulic Humidification
- Semi-Dry Fog
- Humidification System for Industrial Use
AirULM
• Hydraulic humidification system to humidify an entire factory space
• Operates solely with a high-pressure pump without using compressed air.
• Lower operating costs compared to other humidification approaches.
-
- Precision Guarantee
- Full Cone Spray Nozzles (Clog-resistant)
AJP
Spray capacity:2.00–250 L/min (0.2 MPa)
Spray angle:75º, 80º, 85º, 90º
Material:S303, S304, SCS13
Free passage diameter:1.6–22.3 mm
-
- Made-to-Order
- Precision Guarantee
- Full Cone Spray Nozzles (Alumina Ceramic)
AJP-AL92
Spray capacity:18.0–250 L/min (0.2 MPa)
Spray angle:85º, 90º
Material:92％ Alumina
Free passage diameter:5.1–21.3 mm
-
- Made-to-Order
- Impinging-type Fine Fog Nozzles
AKIJet
Mean droplet diameter:10–120 μm
Spray capacity:10–450 L/hr
Spray width:140–780 mm
Material:S303 equivalent, S303, SCS14, S316
-
- ARS Filter
- Filtration Device
- Automatic Strainer
ARS (Auto Reverse Self-cleaning Filter)
Max. filtration capacity:150–2,500 L/min
Types of screen:Metal wire screen , Wedge wire screen
-
- Hydraulic Humidification
- Semi-Dry Fog
- Humidification System for Office Use
AU-KIT
• Eliminates the hassle of daily water refilling tasks with an automatic water supply function.
• Reduces the formation of white powder around the humidifiers.
• Enables automatic operation with a humidity- or timer-controller.
-
- Made-to-Order
- Clog Resistant
- Fine Fog, Flat Spray Nozzles (Large Capacity)
BAVV
Mean droplet diameter:30–100 μm
Spray capacity:9.0–123 L/hr
Spray angle:60º
Material:S303, S304
-
- Some Models are Made-to-Order
- Precision Guarantee
- Wide-angle Full Cone Spray Nozzles
BBXP
Spray capacity:1.50–1200 L/min
Spray angle:120º
Material:S303, S316
Free passage diameter:0.7–21.7 mm
-
- Spray Control
- Fine Fog, Full Cone Spray Nozzles
BIMJ
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70º, 20º
Material:S303
-
- Spray Control
- Fine Fog, Hollow Cone Spray Nozzles
BIMK
Mean droplet diameter:20-100 μm
Spray capacity:2.0–107 L/hr
Spray angle:60º
Material:S303
-
- Spray Control
- Suction
- Fine Fog, Hollow Cone Spray Nozzles (Suction Type)
BIMK-S
Mean droplet diameter:20-30 μm
Spray capacity:1.4–5.5 L/hr
Spray angle:60º
Material:S303
-
- Spray Control
- Spray Gun Unit with BIM Nozzles
BIMV
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:45º, 80º, 110º
Material:S303
-
- Spray Control
- Suction
- Fine Fog, Flat Spray Nozzles (Suction Type)
BIMV-S
Mean droplet diameter:20-30 μm
Spray capacity:0.5–5.5 L/hr
Spray angle:80º
Material:S303
-
- Spray Gun Unit with BIM Nozzles
BIM-GUN
-
- Made-to-Order
- Self-cleaning
- Spray Headers with Nozzle Cleaning Function
BRASIKan
Standard pressure:0.3 MPa
Free passage diameter:1.3–2.9 mm
Material:S303, S316L, TN
-
- Compact
- Spray Control
- Fine Fog, Flat Spray Nozzles
CBIMJ
Mean droplet diameter:20-100 μm
Spray capacity:0.25–38.5 L/hr
Spray angle:20º
Material:S303
-
- Compact
- Spray Control
- Fine Fog, Hollow Cone Spray Nozzles
CBIMK
Mean droplet diameter:20-100 μm
Spray capacity:2.0–38.5 L/hr
Spray angle:60º
Material:S303
-
- Compact
- Spray Control
- Suction
- Fine Fog, Hollow Cone Spray Nozzles (Suction Type)
CBIMK-S
Mean droplet diameter:20-30 μm
Spray capacity:1.4–5.5 L/hr
Spray angle:60º
Material:S303
-
- Compact
- Spray Control
- Fine Fog, Flat Spray Nozzles
CBIMV
Mean droplet diameter:20-100 μm
Spray capacity:0.25–38.5 L/hr
Spray angle:45º, 80º, 110º
Material:S303
-
- Compact
- Spray Control
- Suction
- Fine Fog, Flat Spray Nozzles (Suction Type)
CBIMV-S
Mean droplet diameter:20-30 μm
Spray capacity:0.1–5.5 L/hr
Spray angle:80º
Material:S303
-
- Compressor
- Wide Coverage Full Cone Jet Air Nozzles
JAN
Air consumption:49–456 NL/min (0.3 MPa)
Max. operating pressure:1.0 MPa
Noise level:57–82 dBA (0.3 MPa)
Material:S303
-
- Precision Guarantee
- Flat Spray Nozzles (Coin-shaped)
CVVP
Operating pressure:0.05-2 MPa
Spray capacity:1.00–8.00 L/min (0.3 MPa)
Spray angle:65º, 80º, 90º
Material:S303
-
- Made-to-Order
- Clog Resistant
- Ultra-thick Even Flat Spray Nozzles
DDA
Mean droplet diameter:15–200 μm
Spray capacity:0.14–57.3 L/min
Spray angle:75º, 80º, 100º, 110º, or 125º
Material:S303, S304
-
- Made-to-Order
- Precision Guarantee
- Ultra-Thick Even Flat Spray Nozzles
DDRP
Operating pressure:0.05-2 MPa
Spray capacity:5.00-100 L/min (0.3 MPa)
Spray angle:90º, 115º
Material:S303
-
- Thick Even Flat Spray Nozzles
DDRP+AS
Mean droplet diameter:430–488 μm
Spray capacity:19–24.7 L/min
Spray angle:90º, 115º
Material:S303, S304
-
- Clog Resistant
- Even Flat Spray Nozzles
DOVEA
Mean droplet diameter:50–200 μm
Spray capacity:0.42–40 L/min
Spray angle:55º, 70º, 95º, or 110º
Material:S303, S304
-
- Clog Resistant
- Flat Spray Nozzles
DOVVA-G
Mean droplet diameter:80–120 μm
Spray capacity:1.0–50 L/min
Spray angle:55º, 70º
Material:S316L, S304
-
- Some Models are Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Descaling Nozzles
DSP
Operating pressure:3-20 MPa
Spray capacity:5.59–86.5 L/min (5 MPa)
Spray angle:12º, 15º
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Even Flat Spray Nozzles
EJVV
Operating pressure:0.25-2 MPa
Spray capacity:2.00-12.0 L/min (0.3 MPa)
Spray angle:80º, 90º
Material:S303
-
- Blower
- Compressor
- Flexible Tubes
FT
Max. operating pressure:0.3 MPa
Heat resistance:65℃
Inlet thread size:R1/8, R1/4
Material:POM
-
- Large Capacity Fine Fog Spray Nozzles (Large Spray Capacity)
GSIMⅡ
Mean droplet diameter:40–80 μm
Spray capacity:15–2,000 L/hr
Spray angle:20º, 60º
Material:S316L, S303
-
- Downstream Fogging
- Upstream Fogging
- Wet Compression
- Recovering Diminished Power Output
GT Inlet Air Cooling System
• Recovers the diminished power output in summertime.
• The system is optionally available for upstream or downstream fogging, or wet compression.
• A simulation analysis or an evaporative experiment is available at optional costs.
-
- Compressor
- Flat Air Nozzles
HF
Air consumption:300–550 NL/min (0.3 MPa)
Max. operating pressure:1.0 MPa
Noise level:78–84 dBA (0.3 MPa)
Material:S303
