Energy, Ceramics, and Waste Disposal

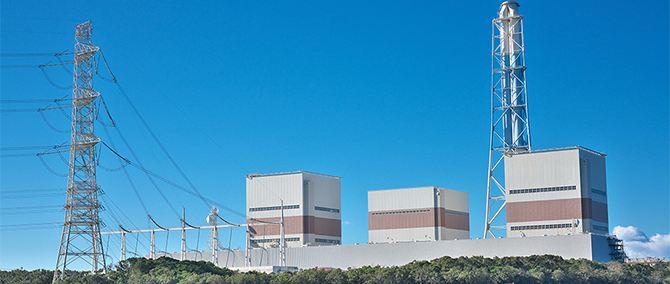

In power plants and waste disposal facilities, spray nozzles are utilized for cooling high-temperature gas and preventing fires. Additionally, we are exploring innovative measures such as cooling the inlet air of gas turbines to boost their power generation efficiency, which is diminished by heat. This helps power plant operations ensure a stable power supply, a significant challenge for them.
-
- Some Models are Made-to-Order
- Precision Guarantee
- Flat Spray Nozzles
VVP
Operating pressure:0.05-2 MPa
Spray capacity:0.20–150 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303, PP, PVDF
-
- Spray Control
- Spray Gun Unit with BIM Nozzles
BIMV
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:45º, 80º, 110º
Material:S303
-
- Spray Control
- Fine Fog, Full Cone Spray Nozzles
BIMJ
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70º, 20º
Material:S303
-
- Lengthening Repair Intervals for Refractories
Kiln Shell Cooling System
• Extends the service life of the kiln shell and its refractory bricks.
• Ensures long-term continuous and stable operation of the kiln.
• Stabilizes the internal coating.
• Controls the temperature of the kiln.
-
- Made-to-Order
- Impinging-type Fine Fog Nozzles
AKIJet
Mean droplet diameter:10–120 μm
Spray capacity:10–450 L/hr
Spray width:140–780 mm
Material:S303 equivalent, S303, SCS14, S316
-
- ARS Filter
- Filtration Device
- Automatic Strainer
ARS (Auto Reverse Self-cleaning Filter)
Max. filtration capacity:150–2,500 L/min
Types of screen:Metal wire screen , Wedge wire screen
-
- Hydraulic Humidification
- Semi-Dry Fog
- Humidification System for Office Use
AU-KIT
• Eliminates the hassle of daily water refilling tasks with an automatic water supply function.
• Reduces the formation of white powder around the humidifiers.
• Enables automatic operation with a humidity- or timer-controller.
-
- Made-to-Order
- Clog Resistant
- Fine Fog, Flat Spray Nozzles (Large Capacity)
BAVV
Mean droplet diameter:30–100 μm
Spray capacity:9.0–123 L/hr
Spray angle:60º
Material:S303, S304
-
- Spray Control
- Fine Fog, Full Cone Spray Nozzles
BIMJ
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:70º, 20º
Material:S303
-
- Spray Control
- Fine Fog, Hollow Cone Spray Nozzles
BIMK
Mean droplet diameter:20-100 μm
Spray capacity:2.0–107 L/hr
Spray angle:60º
Material:S303
-
- Spray Control
- Suction
- Fine Fog, Hollow Cone Spray Nozzles (Suction Type)
BIMK-S
Mean droplet diameter:20-30 μm
Spray capacity:1.4–5.5 L/hr
Spray angle:60º
Material:S303
-
- Spray Control
- Spray Gun Unit with BIM Nozzles
BIMV
Mean droplet diameter:20-100 μm
Spray capacity:1.0–107 L/hr
Spray angle:45º, 80º, 110º
Material:S303
-
- Spray Control
- Suction
- Fine Fog, Flat Spray Nozzles (Suction Type)
BIMV-S
Mean droplet diameter:20-30 μm
Spray capacity:0.5–5.5 L/hr
Spray angle:80º
Material:S303
-
- Spray Gun Unit with BIM Nozzles
BIM-GUN
-
- Compact
- Spray Control
- Suction
- Fine Fog, Hollow Cone Spray Nozzles (Suction Type)
CBIMK-S
Mean droplet diameter:20-30 μm
Spray capacity:1.4–5.5 L/hr
Spray angle:60º
Material:S303
-
- Compact
- Spray Control
- Suction
- Fine Fog, Flat Spray Nozzles (Suction Type)
CBIMV-S
Mean droplet diameter:20-30 μm
Spray capacity:0.1–5.5 L/hr
Spray angle:80º
Material:S303
-
- Clog Resistant
- Flat Spray Nozzles
DOVVA-G
Mean droplet diameter:80–120 μm
Spray capacity:1.0–50 L/min
Spray angle:55º, 70º
Material:S316L, S304
-
- Blower
- Compressor
- Flexible Tubes
FT
Max. operating pressure:0.3 MPa
Heat resistance:65℃
Inlet thread size:R1/8, R1/4
Material:POM
-
- Large Capacity Fine Fog Spray Nozzles (Large Spray Capacity)
GSIMⅡ
Mean droplet diameter:40–80 μm
Spray capacity:15–2,000 L/hr
Spray angle:20º, 60º
Material:S316L, S303
-
- Downstream Fogging
- Upstream Fogging
- Wet Compression
- Recovering Diminished Power Output
GT Inlet Air Cooling System
• Recovers the diminished power output in summertime.
• The system is optionally available for upstream or downstream fogging, or wet compression.
• A simulation analysis or an evaporative experiment is available at optional costs.
-
- Precision Guarantee
- Quick-detachable
- Full Cone Spray Nozzles (Quick-detachable)
INJJX-SS
Spray capacity:1.00–6.00 L/min (0.2 MPa)
Spray angle:55º, 65º,70º, 75º
Material:S303
Free passage diameter:0.7–1.7 mm
-
- Precision Guarantee
- Quick-detachable
- Flat Spray Nozzles (Quick-detachable)
INVV-SS (Stainless Steel)
Operating pressure:0.05-2 MPa
Spray capacity:1.50–20.0 L/min (0.3 MPa)
Spray angle:15º, 25º, 40º, 50º, 65º, 80º, 90º, 115º
Material:S303
-
- Clog Resistant
- Full Cone Spray Nozzles
JJA
Mean droplet diameter:150–650 μm
Spray capacity:1.1–24.0 L/min
Material:S316L, S304
-
- Steam
- Steam-driven Spray Nozzles
JOKIJet
Spray capacity:10–1,200 L/hr
Material:S316L, S304
-
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles (Three-piece Structure)
K
Spray capacity:0.06-1.80 L/min (0.3 MPa)
Mean droplet diameter:80-380 μm
Material:S303
Free passage diameter:0.4-1.7 mm
-
- Made-to-Order
- Ceramic Orifice
- Precision Guarantee
- Hollow Cone Spray Nozzles (Three-piece Structure)
KD
Spray capacity:0.30–3.94 L/min (0.3 MPa)
Spray angle:70–97º
Material:S303
Free passage diameter:0.7–1.8 mm
-
- Some Models are Made-to-Order
- Precision Guarantee
- Hollow Cone Spray Nozzles
KKBP
Spray capacity:0.50–2.00 L/min (0.3 MPa)
Spray angle:53–68º
Material:S303
Free passage diameter:1.0–1.8 mm
-
- Full Cone Spray Nozzles (Blower Air Type)
LSIM
Mean droplet diameter:40–80 μm
Spray capacity:100–1,000 L/hr
Spray angle:20º
Material:S316L, S304
-
- Made-to-Order
- Compact
- Spray Control
- Suction
- Ultra-compact, Low Flow Rate Flat Spray Nozzles (Suction Type)
SCBIMV-S
Mean droplet diameter:20-30 μm
Spray capacity:0.1–0.74 L/hr
Spray angle:80º
Material:S303
-
- Made-to-Order
- Precision Guarantee
- Large Capacity Full Cone Spray Nozzles
TJJX
Spray capacity:1,500–4,000 L/min (0.2 MPa)
Spray angle:90–100º
Material:S304, S316, SCS13, SCS14
Free passage diameter:28–43 mm
-
- Ball Joints for Connecting Spray Nozzles
UT
Max. operating pressure:1 MPa
Heat resistance:80℃
Outlet thread size:Rc1/8, Rc1/4
Material:FRPP
-
- Ball Joints for Connecting Spray Nozzles
UT (Metal)
Max. operating pressure:15 MPa
Heat resistance:120℃
Outlet thread size:Rc1/8–Rc3/4
Material:S303, B
-
- Ceramic Orifice
- Precision Guarantee
- Flat Spray Nozzles (Three-piece Structure)
V
Operating pressure:0.05-2 MPa
Spray capacity:0.20–8.00 L/min (0.3 MPa)
Spray angle:50°, 65°, 80°, 90°, 115°
Material:S303
-
- Ceramic Orifice
- Precision Guarantee
- Flat Spray Nozzles
VP
Operating pressure:0.05-2 MPa
Spray capacity:0.20–8.00 L/min (0.3 MPa)
Spray angle:50º, 65º, 80º, 90º, 115º
Material:S303, B, PVDF
-
- Made-to-Order
- Precision Guarantee
- Flat Spray Nozzles
VV
Operating pressure:0.05-2 MPa
Spray capacity:0.50–20.0 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°
Material:S303
-
- Some Models are Made-to-Order
- Precision Guarantee
- Flat Spray Nozzles
VVP
Operating pressure:0.05-2 MPa
Spray capacity:0.20–150 L/min (0.3 MPa)
Spray angle:15°, 25°, 40°, 50°, 65°, 80°, 90°, 115°fog
Material:S303, PP, PVDF
-
- Some Models are Made-to-Order
- Oil Burner Nozzles
Oil Burner Nozzles
Industries where this nozzle is used: Grain drying, Food factories, Ships, Steel mills
Material:All metal
-
- CFD
- Gas Conditioning Tower
- Complete Evaporation
Flue Gas Cooling System
-
- Suppressing Airborne Dust | Preventing Dust from Erupting
Dust Control Fog System
